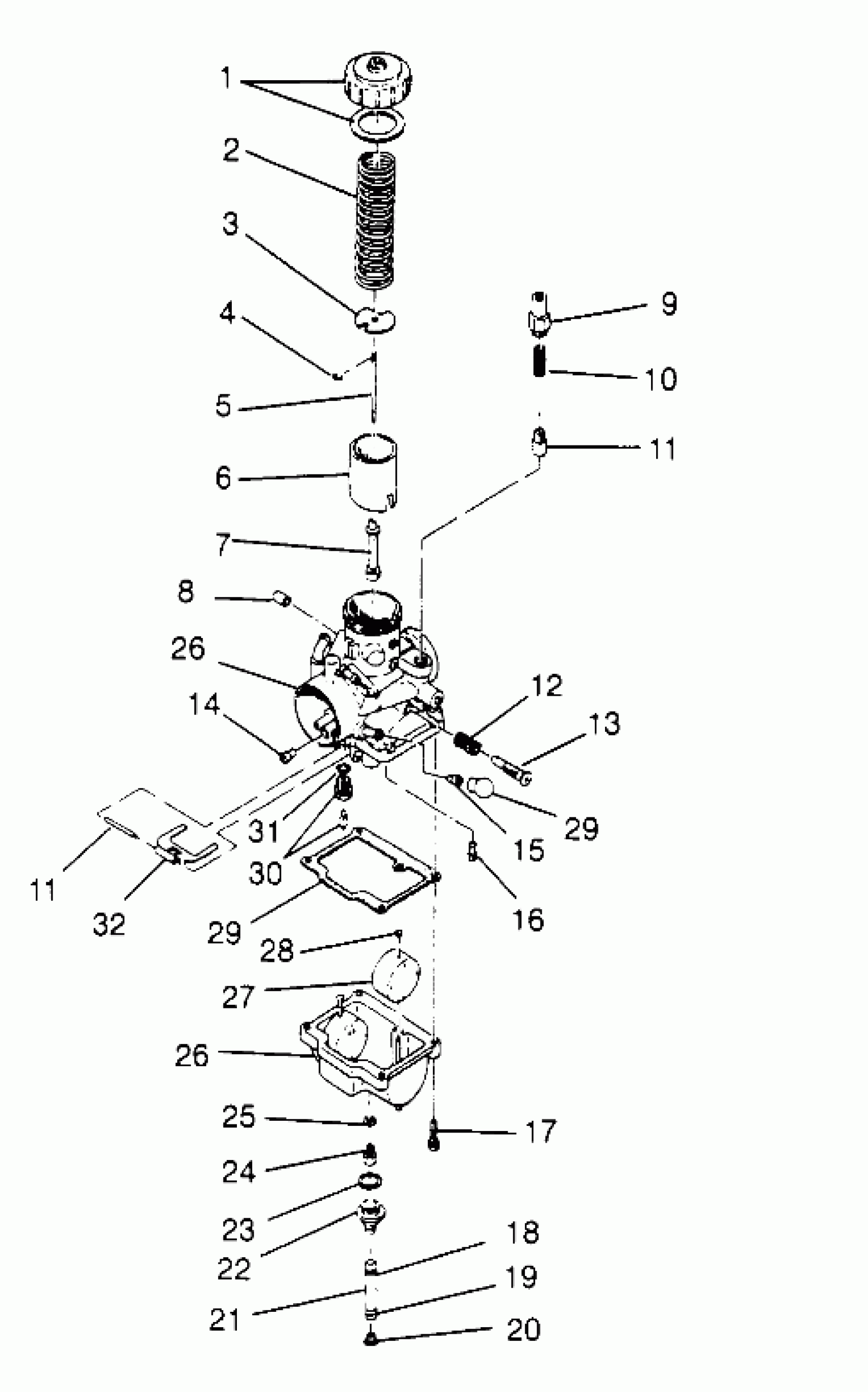

Polaris XLT RMK - 0960956 CARBURETOR XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960556 (4931813181D004) Diagram

#

Description
Price

1

TOP ASM

3130184

$32.37

2

SPRING,THROTTLE

3130439

$13.59

3

PLATE

3130027

$9.70

4

E RING(10) Substituted by 3130508

3130003

Unavailable

5

JET, NEEDLE (6DP17-3)

3130374

Unavailable

6

VALVE,THROTTLE,2.0 (2.0)

3130464

Unavailable

7

NEEDLE JET,(Q-6) (480)

3130618

$18.23

8

CAP

3130479

$14.56

9

CARBURETOR #1 (Incl. 1-22, 17-9) PTO & Mag

3130631

Unavailable

9

CARBURETOR 2 (Incl. 1-22, 17-9) Center

3130634

Unavailable

10

JET, (PAJ1) (PAJ1)

3130632

Unavailable

11

PIN, FLOAT

3130361

$8.89

11

PIN, FLOAT

3130361

$8.89

12

ARM,FLOAT

3130018

$24.27

13

PACKING(10)

3130017

$4.03

14

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

15

PACKING,FLOAT CHAMBER

3130020

$16.17

16

CAP,(10)

3130237

$4.03

17

FLOAT ASM.

3130430

$43.56

18

WASHER (10)

3130014

$1.59

19

JET,MAIN,HX.HD#190(10) (#190)

3130121

Unavailable

20

O RING

3130239

Unavailable

21

NIPPLE

3130573

$32.37

22

DESC NOT_AVAILABLE

8450045-600

Unavailable

23

PLUG,TRAP

5431893

$12.94

24

CLAMP,HOSE(10)

7080544

Unavailable

25

CLAMP,SPRING,(10)

7080534

$1.59

26

SCREW & WASHER(10)

3130025

$3.19

26

SCREW & WASHER(10)

3130025

$3.19

27

JET,PILOT,#35(10) (#35)

3130066

$8.89

28

JET, (PAJ2) (PAJ2)

3130633

Unavailable

29

CAP Substituted by 3130379

3130622

$6.59

29

CAP Substituted by 3130379

3130622

$6.59

30

SCREW,THROTTLE STOP

3130009

$19.99

31

SPRING,THROTTLE ADJ.

3130010

$8.89

32

PLUNGER ASM, STARTER

3130328

$32.37
