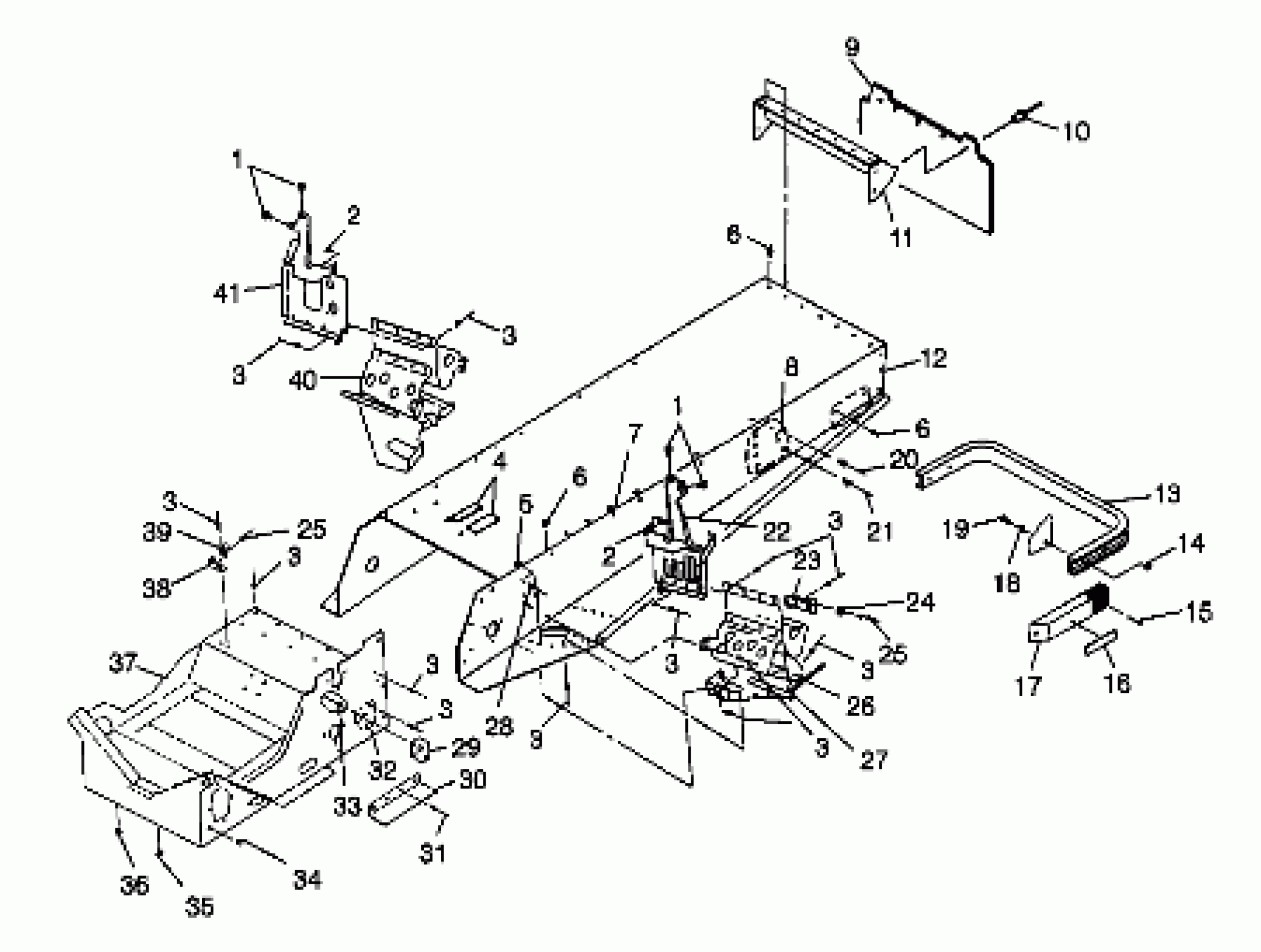

Polaris XLT CLASSIC - 099ED6AS TUNNEL - 099ED6AS (4948404840a005) Diagram
#
1
BUMPER,HOOD
5410768
$2.95
1
BUMPER,HOOD
5410768
$2.95
2
SCREW(10)
7512057
$2.38
2
SCREW(10)
7512057
$2.38
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
5
SNAP-MALE(10)
7080227
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
7
NUT,SERT(10)
7541938
Unavailable
8
PAD,LH,RR SUSP(X12),BLK
1012431-067
$19.03
8
PAD,RH,RR SUSP(X12),BLK
1012432-067
$18.23
9
FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106
5432149
Unavailable
10
POP RIVET(50)
7621418
$1.49
11
PANEL,TUNNELBACK
5241053-067
$308.99
12
TUNNEL,LIQ.,BLK. (See Footnote) (Incl. 6-8,11 and Heat Exchangers)
1012343-067
Unavailable
13
BUMPER,REAR,STD.
5224674-067
Unavailable
14
NUT-LOCK(10)
7542122
$1.49
15
SCREW(10)
7511863
$1.99
16
REFLECTOR RED
2670070
$9.91
17
CAP, BUMPER, BLK.
5430930-070
Unavailable
18
WASHER(10)
7558301
$1.49
19
BOLT(10)
7512240
$3.99
20
RIVET,SEMI-TUBE,(50)
7661841
$1.49
21
RIVET(50)
7661846
$1.99
22
MT,CONSOLE,LH
1011951-067
$35.51
23
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
24
STOP,SIDEPANEL BUMPER
5411172
Unavailable
25
RIVET,3/16X.402(50)
7621432
$1.49
25
RIVET,3/16X.402(50)
7621432
$1.49
26
FOOTREST ASM,LH
1012544
Unavailable
27
SUPPORT,TUNNEL,LH,BLK.
1012812-067
$32.37
27
SUPPORT,TUNNEL,RH,BLK
1012813-067
Unavailable
28
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
29
PLATE,F.SUSP,OUT,X-12,BLK
5211746-067
$13.39
30
GUARD,ADAPTER GUIDE
5222857
$12.94
31
RIVET(50)
7621452
$1.49
32
MOUNT,RH,F.SUSP.BLK.
1012270-067
$66.99
32
MOUNT,LH,F.SUSP.BLK.
1012269-067
$66.99
33
RIVET(50) Substituted by 7661130
7661643
Unavailable
34
PLUG, HOLE(10)
7080416
$5.65
35
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
36
PLUG-HOLE
7080398
$4.84
37
BULKHEAD ASM,BLK.
1012661-067
Unavailable
38
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
39
GUIDE, RECOIL
5431385
$10.51
40
FOOTREST ASM,RH
1012545
Unavailable
41
MT,CONSOLE,RH
1011952-067
$339.99
