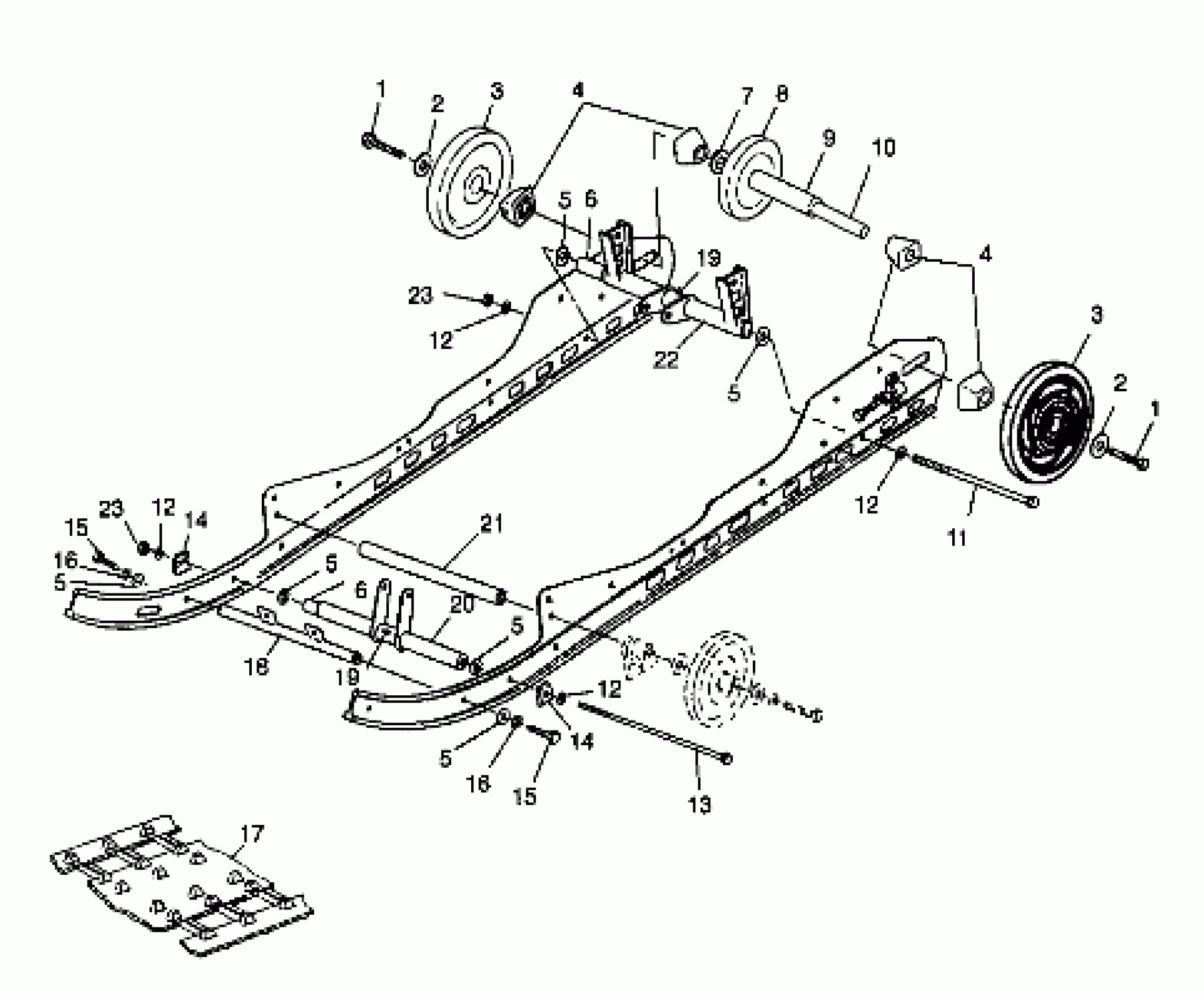

Polaris XLT CLASSIC - 099ED6AS SUSPENSION - 099ED6AS (4948404840b010) Diagram

#

Description
Price

1

BOLT(10)

7515526

$1.19

1

BOLT(10)

7515526

$1.19

2

WASHER(10) Substituted by 7556130

7571629

Unavailable

2

WASHER(10) Substituted by 7556130

7571629

Unavailable

3

WHEEL,IDLER,SCRL,C.RED

1594083-256

Unavailable

3

WHEEL,IDLER,SCRL,C.RED

1594083-256

Unavailable

4

SPACER-IDLER

5432535

$11.99

4

SPACER-IDLER

5432535

$11.99

5

WASHER(10)

7555893

$1.49

5

WASHER(10)

7555893

$1.49

5

WASHER(10)

7555893

$1.49

5

WASHER(10)

7555893

$1.49

5

WASHER(10)

7555893

$1.49

5

WASHER(10)

7555893

$1.49

6

SHAFT

5333404

$24.27

6

SHAFT

5333404

$24.27

7

BUSHING(10)

7555918

$1.59

8

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

9

SPACER-IDLER, LONG

5333285

$11.99

10

SHAFT,IDLER

5020744

$59.99

11

Screw

7517353

Unavailable

12

WASHER(10)

7555806

$1.49

12

WASHER(10)

7555806

$1.49

12

WASHER(10)

7555806

$1.49

12

WASHER(10)

7555806

$1.49

13

SCREW,(10)

7517380

$15.03

14

BOSS,BOLT HEAD

5131112

$19.99

14

BOSS,BOLT HEAD

5131112

$19.99

15

SCREW,(10)

7517247

$3.19

15

SCREW,(10)

7517247

$3.19

16

WASHER(10)

7552603

$1.49

16

WASHER(10)

7552603

$1.49

17

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

17

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

17

TRACK,121"X15,.82 LUG

5411379

$749.99

18

SHAFT,LIMITER STRAP,BLK.

1012267-067

Unavailable

19

ZERK,FITTING,THREADED(10)

7080433

$1.49

19

ZERK,FITTING,THREADED(10)

7080433

$1.49

20

ARM,SHOCK PIVOT

1540968-067

$49.59

21

SHAFT,R.SHOCK BRKT.

5020649

Unavailable

22

ARM,R.PIVOT,X12,BLK

1541141-067

$113.99

23

NUT LOCK(10)

7542411

$3.19

23

NUT LOCK(10)

7542411

$3.19
