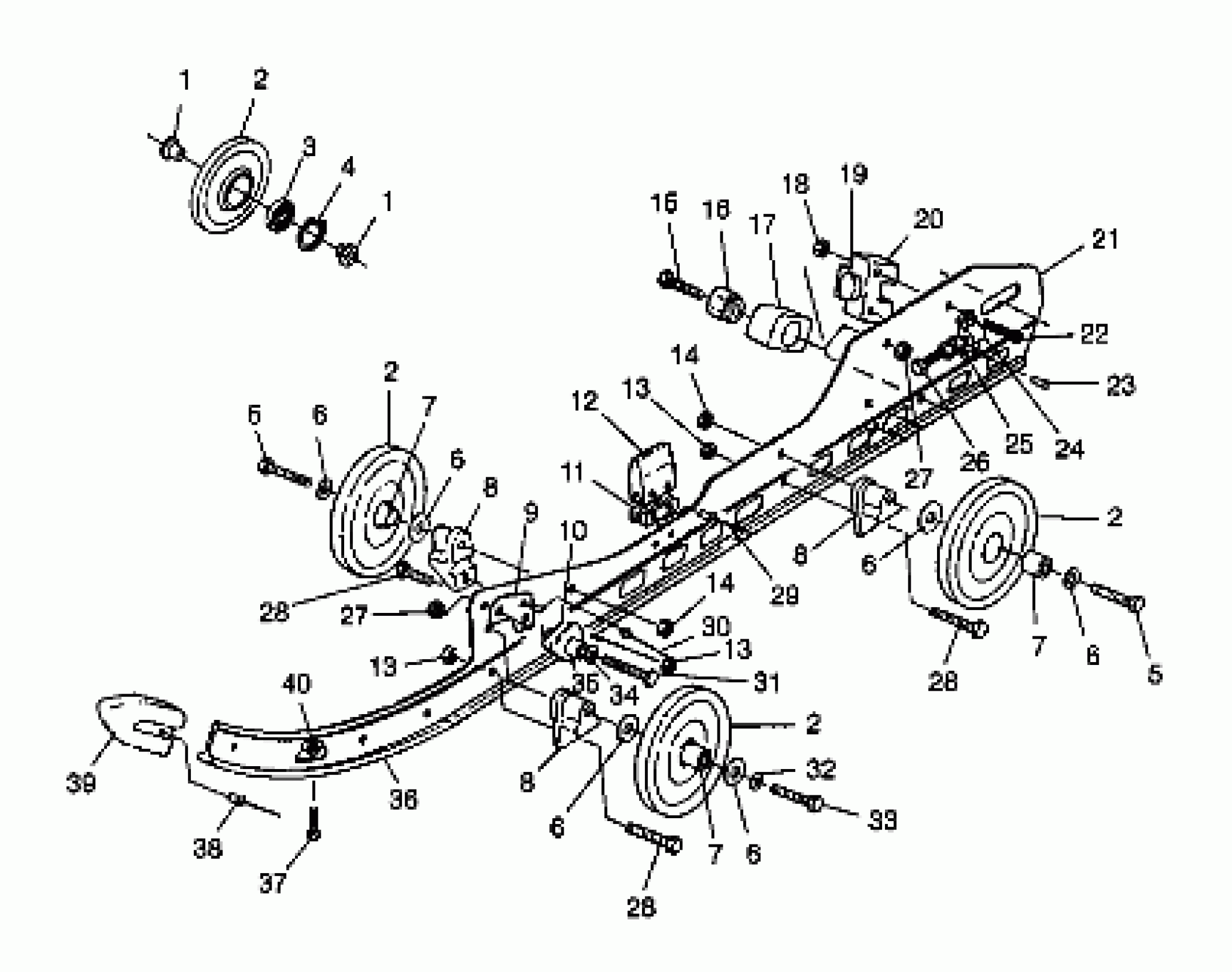

Polaris XLT CLASSIC - 099ED6AS SUSPENSION - 099ED6AS (4948404840b009) Diagram

#

Description
Price

1

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

1

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

2

WHEEL, IDLER (Incl. 1-4)

1543018

$56.65

2

WHEEL, IDLER (Incl. 1-4)

1543018

$56.65

2

WHEEL, IDLER (Incl. 1-4)

1543018

$56.65

2

WHEEL, IDLER (Incl. 1-4)

1543018

$56.65

3

BEARING (1 per Wheel)

3514303

$11.99

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

5

BOLT(10)

7512538

$6.39

5

BOLT(10)

7512538

$6.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

7

SPACER, WHEEL

5333116

$7.99

7

SPACER, WHEEL

5333116

$7.99

7

SPACER, WHEEL

5333116

$7.99

8

SPACER

5630399

$11.99

8

SPACER

5630399

$11.99

8

SPACER

5630399

$11.99

9

PLATE,RAIL SUPPORT

5211786

$5.95

10

BLOCK,SPRING SLIDER

5431924

$10.65

11

BRKT,BUMPER SUPPORT

5240946

Unavailable

12

BUMPER,JOUNCE,RAIL,LT

5811065

Unavailable

13

NUT-LOCK(10)

7542439

$1.49

13

NUT-LOCK(10)

7542439

$1.49

13

NUT-LOCK(10)

7542439

$1.49

14

NUT, NYLOCK(10)

7542525

$4.79

14

NUT, NYLOCK(10)

7542525

$4.79

15

BOLT,(10)

7515545

$5.59

16

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

17

BUMPER,F.PIVOT ARM

5410925

$12.94

18

NUT, LOCK(10)

7542103

$5.59

19

BUMPER,R.PIVOT ARM

5410937

$5.75

20

BLOCK,R.PIVOT ARM STOP

5131111

Unavailable

21

RAIL ASM,RH,XTRA-12 (Incl. 11,12, 23,24,29,38,39)

1541123

$278.99

21

RAIL ASM,LH,XTRA-12 (Incl. 11,12, 23,24,29,38,39)

1541122

$319.99

22

SCREW(10)

7515156

$3.99

23

RIVET,(50)

7621501

$2.39

24

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

25

NUT,TENSIONER ADJ.

5020943

$20.22

26

BOLT, ADJUSTER(10)

7515455

$29.99

27

NUT LOCK(10)

7542411

$3.19

27

NUT LOCK(10)

7542411

$3.19

28

BOLT(10)

7512404

$3.99

28

BOLT(10)

7512404

$3.99

28

BOLT(10)

7512404

$3.99

29

RIVET,(50)

7621488

$3.99

30

RIVET(50)

7661845

$1.49

31

BOLT(10)

7515538

$6.39

32

WASHER LOCK(10)

7553101

$3.99

33

BOLT(10)

7512508

$7.19

34

WASHER ,(10)

7555976

$3.99

35

Bushing

5010332

$11.99

36

SLIDER,WHI.,(2)

5521452

$40.46

37

BOLT(10)

7515175

$3.99

38

RIVET(50)

7621435

$1.49

39

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

40

NUT-LOCK(10)

7542122

$1.49
