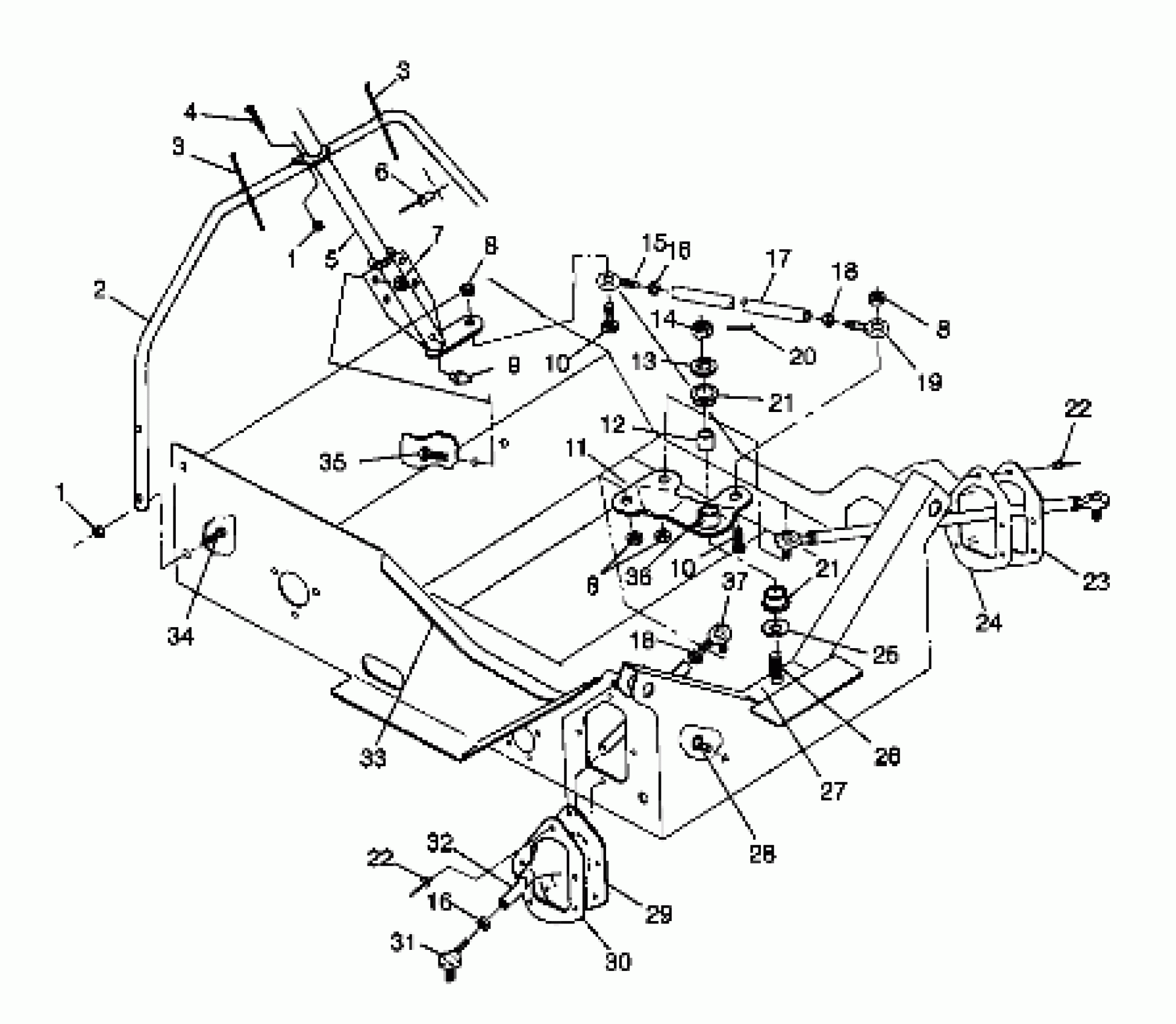

Polaris XLT CLASSIC - 099ED6AS STEERING - 099ED6AS (4948404840b002) Diagram

#

Description
Price

1

NUT, LOCK(10)

7542103

$5.59

1

NUT, LOCK(10)

7542103

$5.59

2

HOOP,STEERING

1012335-067

Unavailable

3

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

3

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

4

SCREW

7517377

$4.79

5

POST,STRG,BLK.

1822299-067

Unavailable

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

7

NUT FLEX-LOC(10)

7542303

$6.39

8

NUT LOCK(10)

7542403

$3.99

8

NUT LOCK(10)

7542403

$3.99

8

NUT LOCK(10)

7542403

$3.99

9

FITTING,LUB/VEN(10)

7080561

$4.79

10

BOLT(10)

7512404

$3.99

10

BOLT(10)

7512404

$3.99

11

STEERING ASM,CTR. (Incl. 21,36)

1822266

$38.49

12

BUSHING

5010463

$9.70

13

WASHER(10)

7555721

$1.49

14

NUT FLEX,(10)

7542703

Unavailable

15

ROD END, RH.

7060165

$48.56

16

NUT

7542424

$1.49

16

NUT

7542424

$1.49

17

ROD-DRAG LINK

5332712

Unavailable

18

NUT HEX(10)

7542401

$2.39

18

NUT HEX(10)

7542401

$2.39

19

ROD END, LH.

7060164

$48.56

20

PIN COTTER(10)

7661203

$1.49

21

BUSHING

3563907

$3.99

21

BUSHING

3563907

$3.99

22

RIVET(50)

7621340

$0.56

22

RIVET(50)

7621340

$0.56

23

PLATE,BOOTSEAT,BLK.

5211454-067

Unavailable

24

BOOT,TIEROD,LH,XTRA

5411122

Unavailable

25

WASHER,WAVE(10)

7555735

$3.99

26

BOLT(10)

7512682

Unavailable

27

BLOCK,STRG,(CAST)

5630563

$32.37

28

CLIP, PLASTIC(10)

4020139

$4.79

29

BOOT,TIEROD,RH,XTRA

5411123

$20.22

30

PLATE,RH,BOOTSEAL,BLK.

5211453-067

$15.67

31

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

32

ROD,TIE,BLK.

5020859-067

Unavailable

33

TRIM,EDGE,6FT,BLACK [No Longer Available]

5521131

Unavailable

34

BOLT-CARRIAGE(10)

7512275

$3.99

35

BOLT,(10)

7517428

$2.39

36

ZERK,FITTING,THREADED(10)

7080433

$1.49

37

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable
