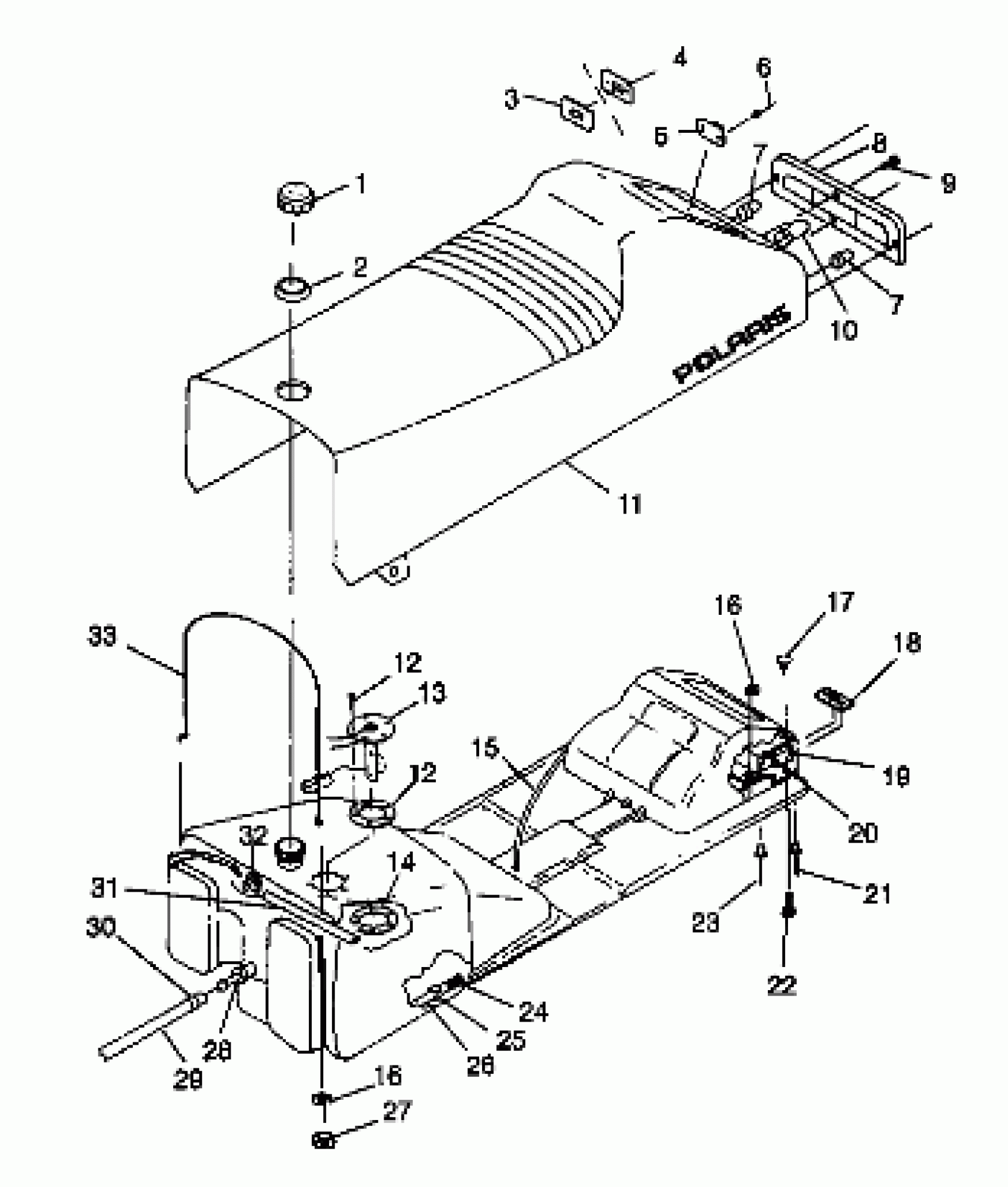

Polaris XLT CLASSIC - 099ED6AS SEAT and GAS TANK - 099ED6AS (4948404840a006) Diagram

#

Description
Price

1

CAP,FUELTANK,W/GASKET

2511226

Unavailable

2

GROMMET,FUELTANK

5410815

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

LENS,TAILLIGHT

5430423

Unavailable

9

SCREW(10)

7511840

Unavailable

10

Bulb, Brakelight

4030045

Unavailable

11

SEAT ASM. (Incl. 3-10,12-28,32)

2682371

Unavailable

11

COVER ASM,SEAT,LONG

2682372

Unavailable

12

HDWE.PKG,SEND.UNIT

2410012

Unavailable

12

HDWE.PKG,SEND.UNIT

2410012

Unavailable

13

SENDER,FUEL-LEVEL,W/GASKET

3280227

Unavailable

14

MTG.FLANGE,FUELTANK Substituted by 5244067

5211308

Unavailable

15

HARNESS,TAILLIGHT

2460398

Unavailable

16

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

16

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

17

CLIP,DART,(10)

7670097

Unavailable

18

NUT,RETAINER-WELD.(10)

7542147

$17.59

19

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

20

COVER,T/L PROTECTOR

5431436

$21.43

21

RIVET(50)

7621301

$3.99

22

SCREW(10)

7512242

$2.39

23

RIVET(50)

7621464

$3.99

24

PICKUP,FUEL,W/STRAINER

7052081

Unavailable

25

RING, COMPRESSION(10)

7080402

$1.60

26

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

27

NUT(10)

7541925

$1.49

28

FITTING - OUTLET(10)

7052023

$24.99

29

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

30

HOSE CLAMP, RED

7080003

$1.49

31

FUELLINE,3MMX7MM

8450061-600

Unavailable

32

FITTING,90 DEG,1/8,(10)

7052095

$4.79

33

CABLE,TANK,RETENTION

7080559

Unavailable
