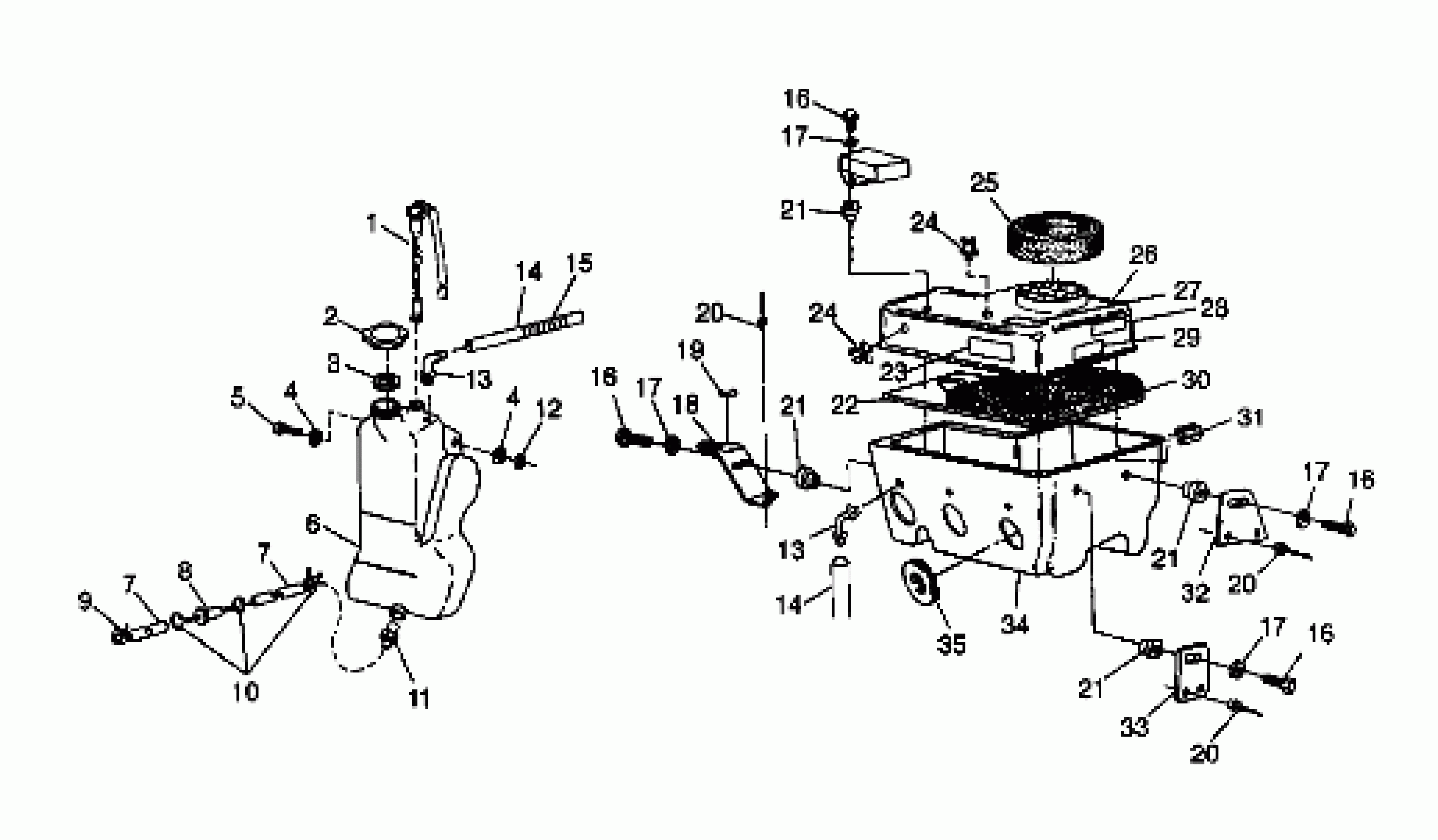

Polaris XLT CLASSIC - 099ED6AS OIL TANK/AIR BOX - 099ED6AS (4948404840c004) Diagram

#

Description
Price

1

SENSOR,OIL LEVEL,W/CONN.

4040040

$72.84

2

CAP,OIL TANK

5430779

$14.56

3

GASKET-OIL CAP

5810141

$2.39

4

WASHER,WROUGHT(10)

7558302

$1.59

4

WASHER,WROUGHT(10)

7558302

$1.59

5

BOLT(10)

7512240

$3.99

6

Tank, Oil

5431437

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

8

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

9

CLAMP-HOSE,(10)

7080236

$1.59

10

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

11

FITTING, OUTLET

7052042

$8.99

12

NUT-LOCK(10)

7542122

$1.49

13

FITTING,90 DEG,1/8,(10)

7052095

$4.79

13

FITTING,90 DEG,1/8,(10)

7052095

$4.79

14

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

14

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

15

SPRING,PROTECT.VENTHOSE

7041605

Unavailable

16

SCREW(10)

7512222

$2.39

16

SCREW(10)

7512222

$2.39

16

SCREW(10)

7512222

$2.39

16

SCREW(10)

7512222

$2.39

17

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

17

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

17

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

17

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

18

BRKT,AIR SILENCER,W/TAB,BLK.

5240824-067

Unavailable

19

DECAL,SHUT-OFF VALVE [No Longer Available]

7072151

Unavailable

20

RIVET,INTERLOCK,B(50)

7661638

$1.49

20

RIVET,INTERLOCK,B(50)

7661638

$1.49

20

RIVET,INTERLOCK,B(50)

7661638

$1.49

21

NUT-WELL(10)

7541923

$5.59

21

NUT-WELL(10)

7541923

$5.59

21

NUT-WELL(10)

7541923

$5.59

21

NUT-WELL(10)

7541923

$5.59

22

PLATE, AIR SILENCER

5850102

Unavailable

23

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

24

CLIP, PLASTIC(10)

4020139

$4.79

24

CLIP, PLASTIC(10)

4020139

$4.79

25

DUCT ASM,AIR

2620057

$40.46

26

SILENCER.UP.AIR,DRILLED

5431879

Unavailable

27

DECAL,CAUTION,AIRBOX

7075351

Unavailable

28

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

29

DECAL, GREASING [No Longer Available]

7073426

$7.27

30

BAFFLE ASM.

1253124

Unavailable

31

CLIP, AIR BOX,(10)

7670055

$7.99

32

BRACKET, SILENCER

5211274

$9.70

33

BRKT,FRT.SILENCER

5211296-067

$4.38

34

SILENCER,INTAKE,DRILLED

5432136

Unavailable

35

BOOT,AIR SILENCER MOD.

5410793

Unavailable
