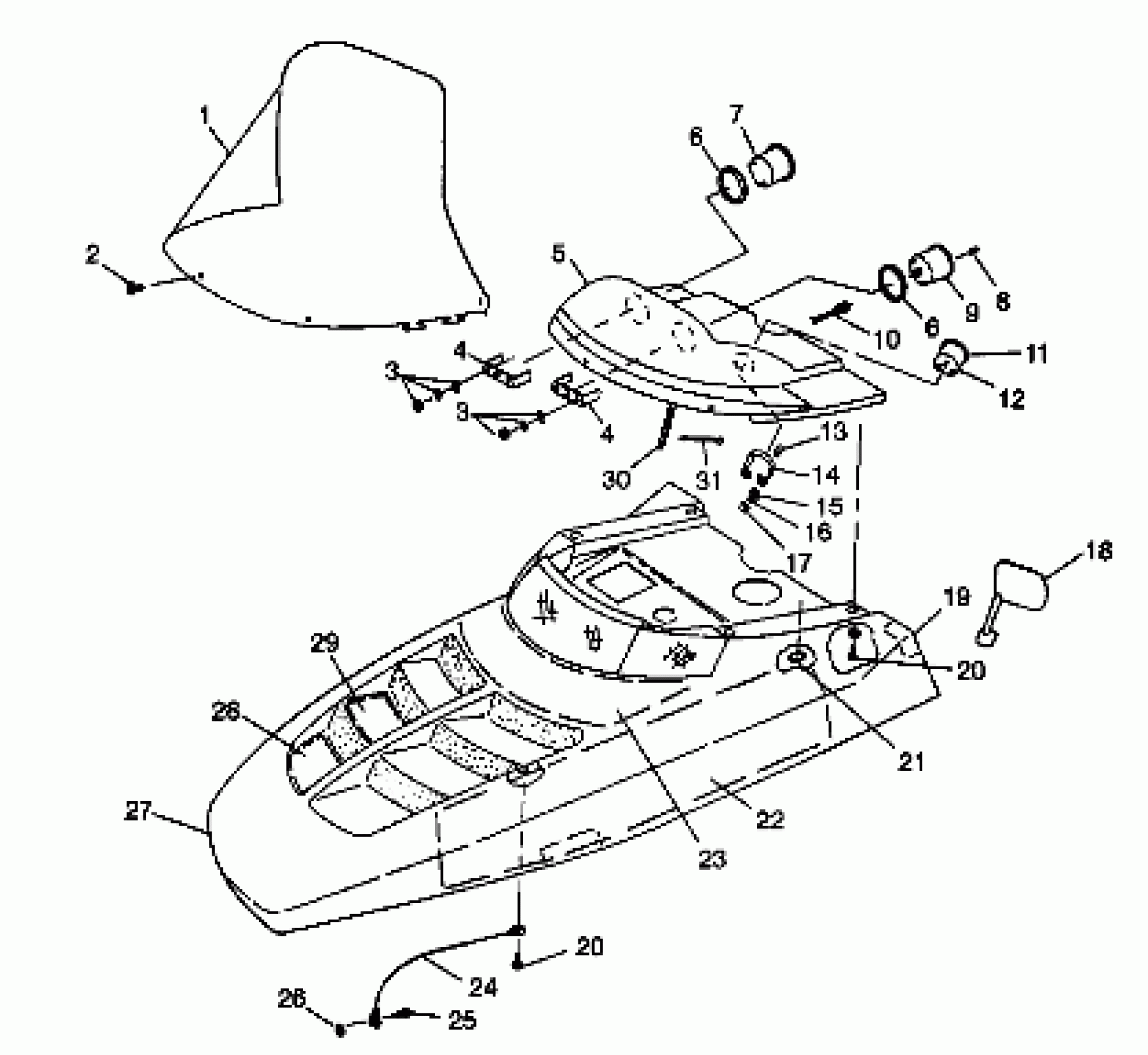

Polaris XLT CLASSIC - 099ED6AS HOOD - 099ED6AS (4948404840a010) Diagram

#

Description
Price

1

WNDSHLD,STD,SMOKE,EV.

5431930

Unavailable

2

RIVET,PLASTI-LOC.(50)

7621509

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

4

BRKT,TACH/SPEEDO,5"

3280210

$28.32

4

BRKT,TACH/SPEEDO,5"

3280210

$28.32

5

HOUSING ASM,INST. (Incl. Warning Decals)

2652148

Unavailable

6

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

6

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

7

TACH ASM,6 PULSE,5 IN. (Incl. 3,4,6)

3280250

$196.17

8

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

9

SPEEDO,BACKLIT (Incl. 3,4,6,8)

3280204

Unavailable

10

CABLE,SPEEDO.

3280094

$60.70

11

CUSHION,FUELGAUGE,(2"),RUBBER

3280230

$3.41

12

FUELGAUGE,BACKLIT,2"

3280226

$96.97

13

SPACER,BRKT,(FUELGAUGE)

3280228

$2.81

14

BRACKET,FUELGAUGE,(2")

3280229

Unavailable

15

Washer

3280231

$0.24

16

WASHER,SPLITLOCK

3280233

Unavailable

17

Nut

3280232

$1.49

18

NUT, WELL(10)

7541901

$6.39

18

SCREW(10)

7512040

Unavailable

18

MIRRORS,DELUXE,PR

2871531

$69.99

19

FOIL,TAPE,1.5X6

5810949

$3.19

20

SCREW(10)

7512070

Unavailable

20

SCREW(10)

7512070

Unavailable

21

RETAINER,WINDSHIELD,(10)

5410970

$1.49

22

FOAM,LH,HOOD

5810876

Unavailable

22

FOAM,RH,HOOD

5810877

Unavailable

22

FOIL,RH,HOOD

5810905

Unavailable

23

FOAM,HOOD,CTR.

5810875

Unavailable

24

CABLE,HOOD RETAINER

7080521

$24.27

25

SCREW(10)

7511930

$2.39

26

NUT FLEX LOC(10)

7541906

$3.19

27

HOOD,FOAM/FOIL,LIQ,C.A.RED (Incl. Foam & Foil)

2631591-259

Unavailable

28

FOIL,HOOD,FRONT

5810874

Unavailable

29

FOIL,HOOD,CTR.

5810873

Unavailable

30

HARNESS, H/L

2460528

Unavailable

30

Fuse

4060139

Unavailable

31

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
