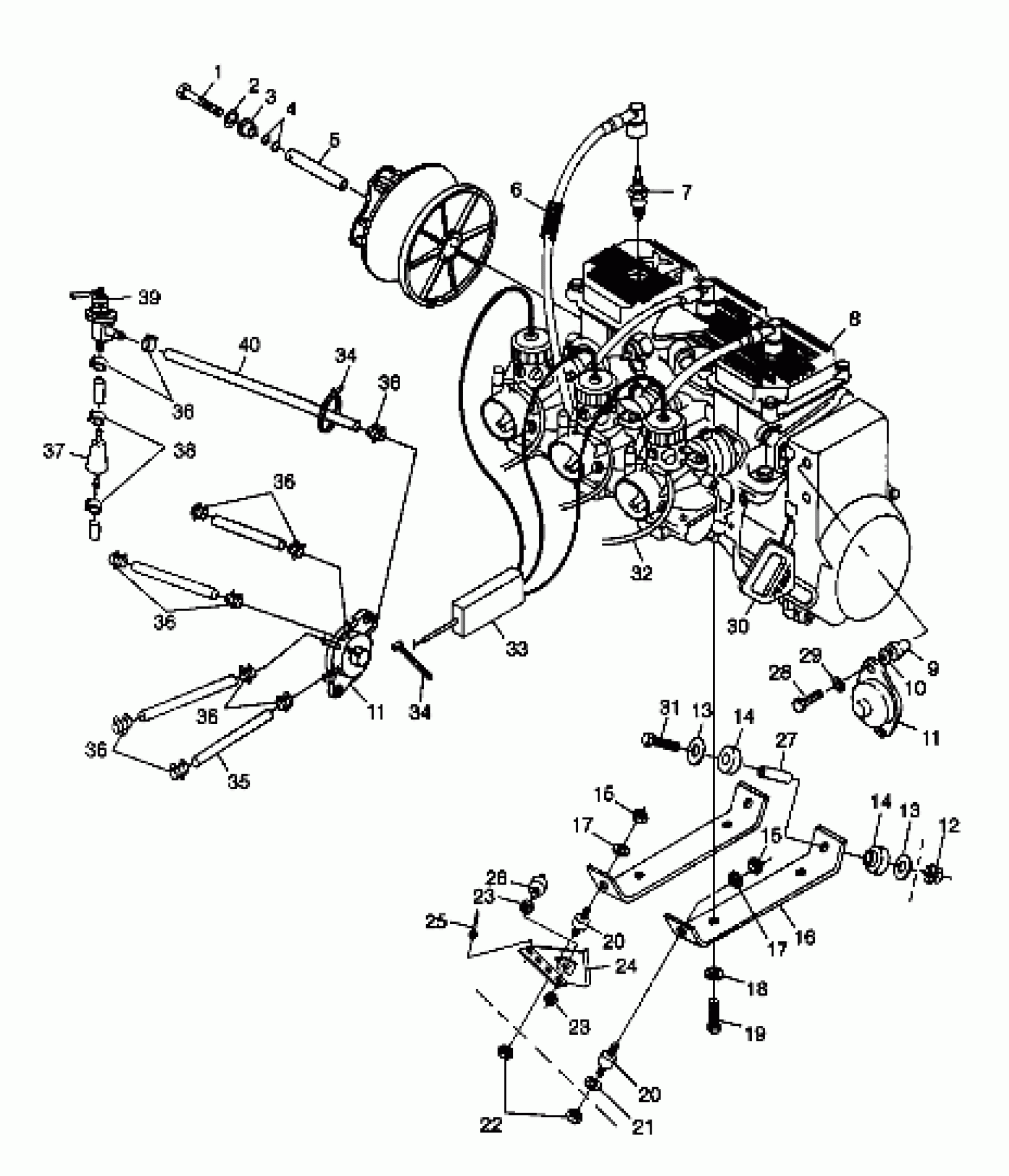

Polaris XLT CLASSIC - 099ED6AS ENGINE MOUNTING - 099ED6AS (4948404840c001) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAIN.

5010287

$12.99

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

CONDUIT,CONVOL(15 CM) Substituted by 4010051-30

4010051-15

Unavailable

7

SPARKPLUG, RN3C(8)

3070166

$3.99

8

ENG.(S.B.)EC58PL-09 [No Longer Available] (See Footnote) NOTE: The Short Block Engine asm. contains a crankcase asm., cylinder and cylinder head asm., and a piston & crankshaft asm. Prior authorizat

3085355

Unavailable

9

NUT-WELL(10)

7541923

$5.59

10

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

11

Asm., Fuel Pump (See Footnote) (See Fuel Pump Pg. C12, Ref. 2)

-------

Unavailable

11

Asm., Fuel Pump (See Footnote) (See Fuel Pump Pg. C12, Ref. 2)

-------

Unavailable

12

NUT,FLANGE(10)

7542522

$5.59

13

WASHER(10)

7555740

$1.59

13

WASHER(10)

7555740

$1.59

14

MOUNT, ENGINE

5410390

Unavailable

14

MOUNT, ENGINE

5410390

Unavailable

15

NUT FLEX LOC,(10)

7542402

$6.39

15

NUT FLEX LOC,(10)

7542402

$6.39

16

PLATE,ENGINE,LH

5242507

Unavailable

16

PLATE,ENGINE,RH

5242508

Unavailable

17

WASHER(10)

7555893

$1.49

17

WASHER(10)

7555893

$1.49

18

WASHER LOCK(10)

7553101

$3.99

19

BOLT(10)

7512575

Unavailable

20

MOUNT,ENG.

3110061

$84.99

20

MOUNT,ENG.

3110061

$84.99

21

WASHER,FLAT(10)

7555915

$3.19

22

NUT,FLEXLOCK,(10)

7547008

$6.39

23

NUT,HEX(10)

7542414

$4.79

23

NUT,HEX(10)

7542414

$4.79

24

LIMITER

1011503-067

Unavailable

25

RIVET,INTERLOCK,B(50)

7661638

$1.49

26

STOP,TORQUE,COARSE

3110056

Unavailable

27

SPACER, (MTR.MT.)

5332778

Unavailable

28

SCREW(10)

7512222

$2.39

29

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

30

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

31

SCREW(10)

7512530

$5.59

32

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

33

CABLE,THROTTLE,W/OIL

7080543

$157.84

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

36

HOSE CLAMP, RED

7080003

$1.49

36

HOSE CLAMP, RED

7080003

$1.49

36

HOSE CLAMP, RED

7080003

$1.49

36

HOSE CLAMP, RED

7080003

$1.49

36

HOSE CLAMP, RED

7080003

$1.49

36

HOSE CLAMP, RED

7080003

$1.49

37

FILTER,FUEL,TRANSPARENT Substituted by 2520156

2530030

Unavailable

38

CLAMP,SPRING,(10)

7080534

$1.59

39

VALVE,FUEL SHUT-OFF

7052060

Unavailable

40

FUELLINE,MARINE/SNO,1525CM

8450079-1525

Unavailable
