Description

Price

1

Bolt, Flange

3084437

Unavailable

2

BOLT, FLANGE ,(10)

3084435

Unavailable

3

SWITCH,THERMAL,IOS (105 Degree C)

3084284

Unavailable

4

O RING

3085192

Unavailable

5

HEAD,CYL.#3,(PTO) (PTO)

3085425

Unavailable

6

HEAD,CYL.#2,(CTR) (Center)

3085424

Unavailable

7

GASKET,HEAD

3085613

Unavailable

8

CYLINDER (Incl. 9,18)

3085017

$834.99

9

PLUG

3084428

$3.51

10

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

11

GASKET, CYLINDER

3084593

Unavailable

12

BAND-CARB MTG. (Incl. 13)

3082257

Unavailable

13

SCREW,(10)

3081497

$2.39

14

Bolt, Allen

3081330

$3.99

15

O-RING

3085619

$20.22

16

ADAPTER (Incl. 15)

3084438

Unavailable

17

NUT-FLANGE(10)

3082911

$1.99

18

STUD,(10)

3085326

Unavailable

19

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

20

WASHER LOCK ,(10)

3080530

$3.19

21

NUT(10)

3080285

Unavailable

22

HEAD,CYL,#1,(MAG) (MAG)

3085423

Unavailable

23

O-RING, (HEADCOVER)

3084434

Unavailable

24

COVER-HEAD * (Incl. 25)

3085872

$177.13

25

HEAD,CYL.#1,MAG.

3085417

Unavailable

26

PIN, DOWEL

3084721

$4.79

26

PIN, DOWEL

3084721

$4.79

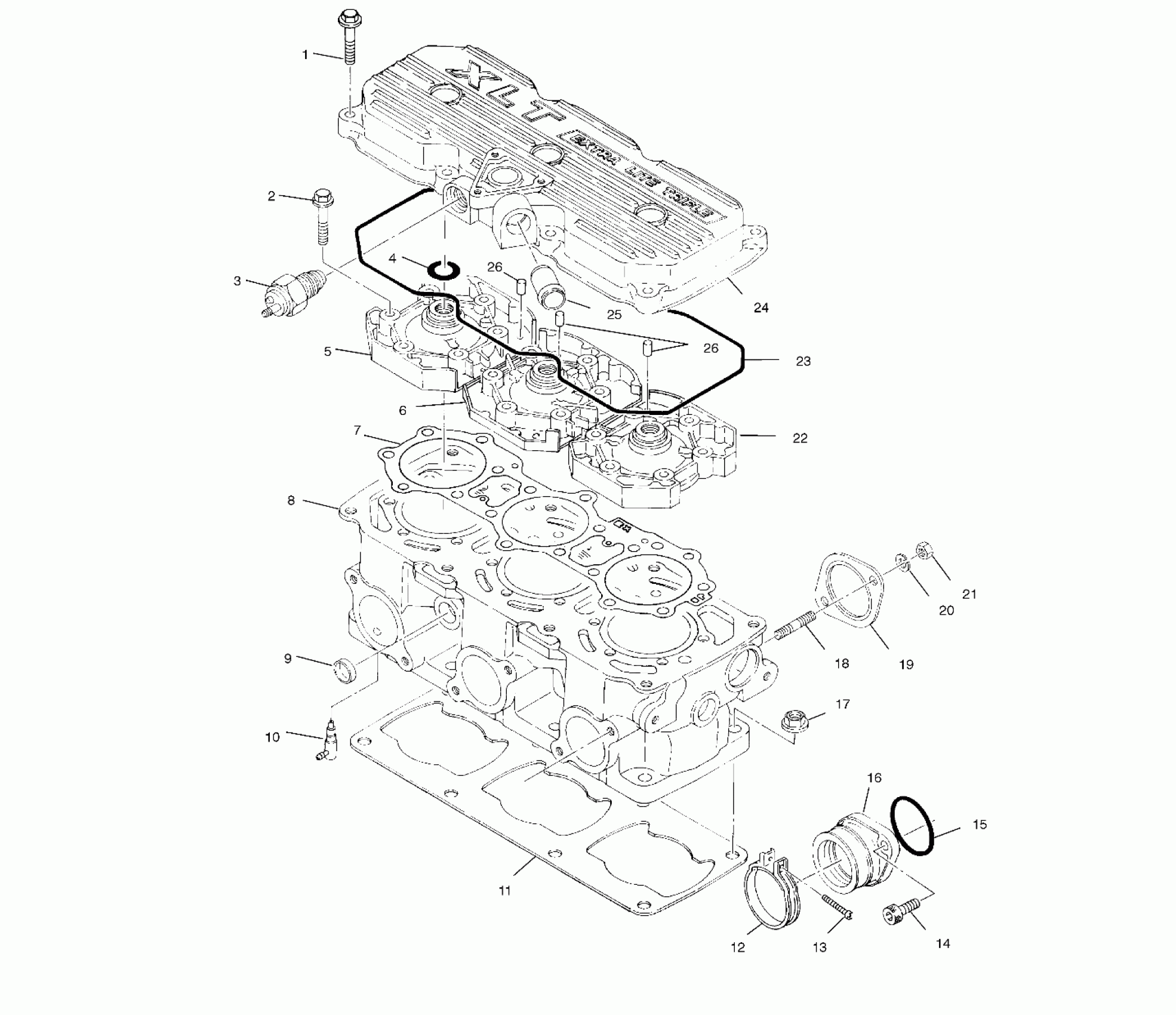

Polaris XLT CLASSIC - 099ED6AS CYLINDER - 099ED6AS (4948404840c008) Diagram

Bolt, Flange

BOLT, FLANGE ,(10)

SWITCH,THERMAL,IOS (105 Degree C)

O RING

HEAD,CYL.#3,(PTO) (PTO)

HEAD,CYL.#2,(CTR) (Center)

GASKET,HEAD

CYLINDER (Incl. 9,18)

PLUG

VALVE, CHECK Substituted by 3086785

GASKET, CYLINDER

BAND-CARB MTG. (Incl. 13)

SCREW,(10)

Bolt, Allen

O-RING

ADAPTER (Incl. 15)

NUT-FLANGE(10)

STUD,(10)

GASKET,EXHAUST,NA(10) Substituted by 3086757

WASHER LOCK ,(10)

NUT(10)

HEAD,CYL,#1,(MAG) (MAG)

O-RING, (HEADCOVER)

COVER-HEAD * (Incl. 25)

HEAD,CYL.#1,MAG.

PIN, DOWEL

PIN, DOWEL
