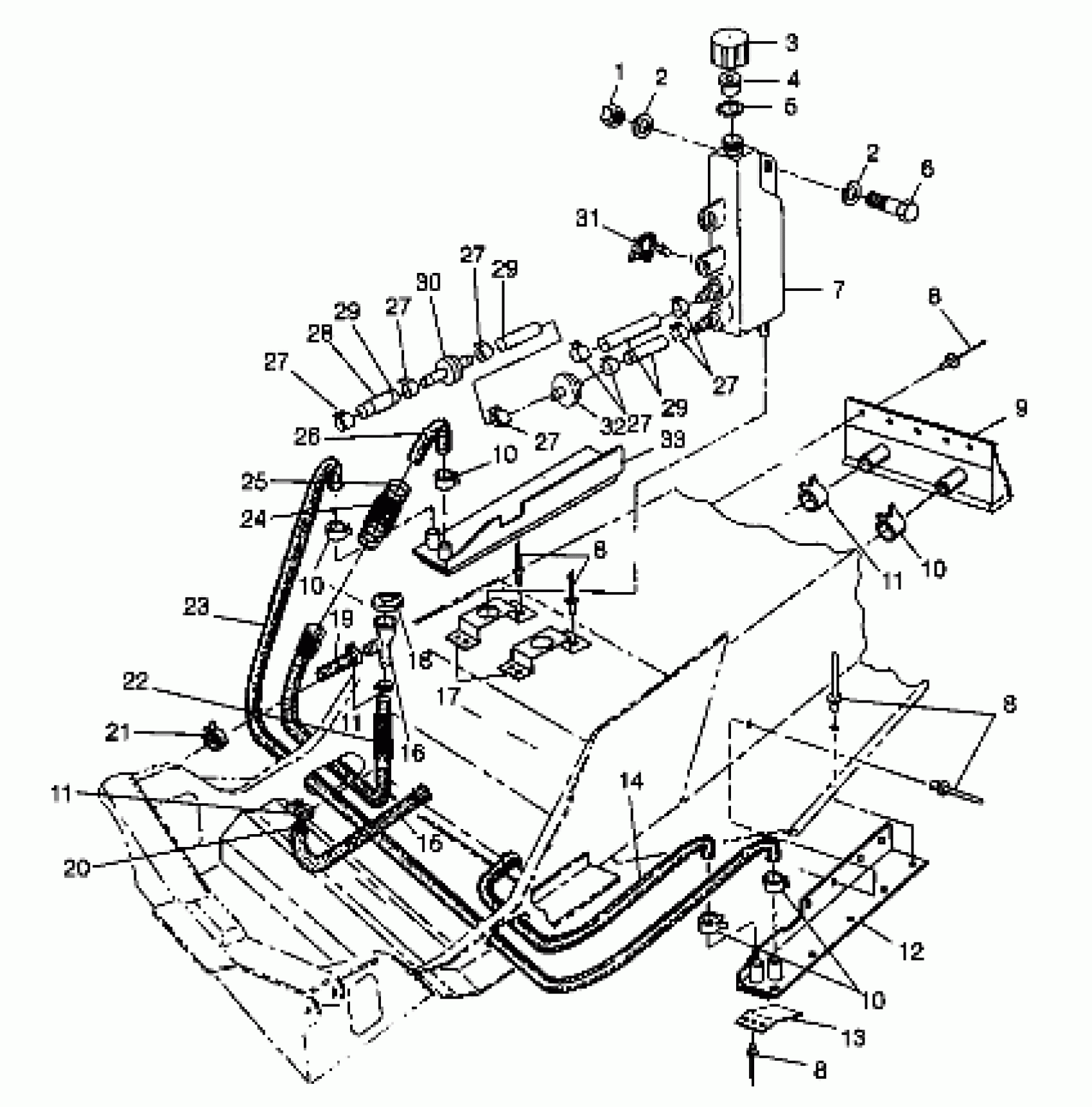

Polaris XLT CLASSIC - 099ED6AS COOLING SYSTEM - 099ED6AS (4948404840b008) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER,WROUGHT(10)

7558302

$1.59

2

WASHER,WROUGHT(10)

7558302

$1.59

3

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

4

PLUG, OVERFLOW,(10)

5431096

$2.02

5

GASKET-OVERFLOW CAP

5810279

$2.41

6

BOLT(10)

7512240

$3.99

7

BOTTLE,O'FLOW,W/FITTING

5431733

$36.41

8

RIVET,INTERLOCK,B(50)

7661638

$1.49

8

RIVET,INTERLOCK,B(50)

7661638

$1.49

8

RIVET,INTERLOCK,B(50)

7661638

$1.49

8

RIVET,INTERLOCK,B(50)

7661638

$1.49

9

EXCHANGER WELD,CTR.

2511225

$204.76

10

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

10

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

10

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

10

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

11

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

11

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

11

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

12

COOLING WELD,LH,SIDE,LT

2511250

Unavailable

13

GUARD, COOL.EXT.

5222863

$32.99

14

HOSE,LH,SIDE/CTR.

5411114

$17.43

15

HOSE, CENTER

5410673

Unavailable

16

FILLER,REMOTE COOLANT Substituted by 5433364

5431931

Unavailable

17

BRKT,OILTANK,COINED

5241334

$9.70

18

CAP,PRESS.(19-21 LB.)

2511256

Unavailable

19

HOSE,ENG.OUT/FILLER

5411010

$24.27

20

SPRING,HOSE RETAINER

7042041

Unavailable

21

CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842

7080563

Unavailable

22

TUBING,CONVOL,8"X1"

5411396

$9.70

23

HOSE,CROSSOVER

5410557

Unavailable

24

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

25

SPRING,HOSE RETAINER

7041079

$4.95

26

HOSE,RH,FILLER OUT,EXTRUSION

5411011

Unavailable

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

TAPE,FOIL,1.50 X 7.50

5810831

Unavailable

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

30

VALVE, CHECK

7052038

$10.51

31

CLIP, PLASTIC(10)

4020139

$4.79

32

FILTER,COOLANT,LGE.

2530024

Unavailable

33

COOLING WELD,RH,SIDE,LT

2511251

$205.99
