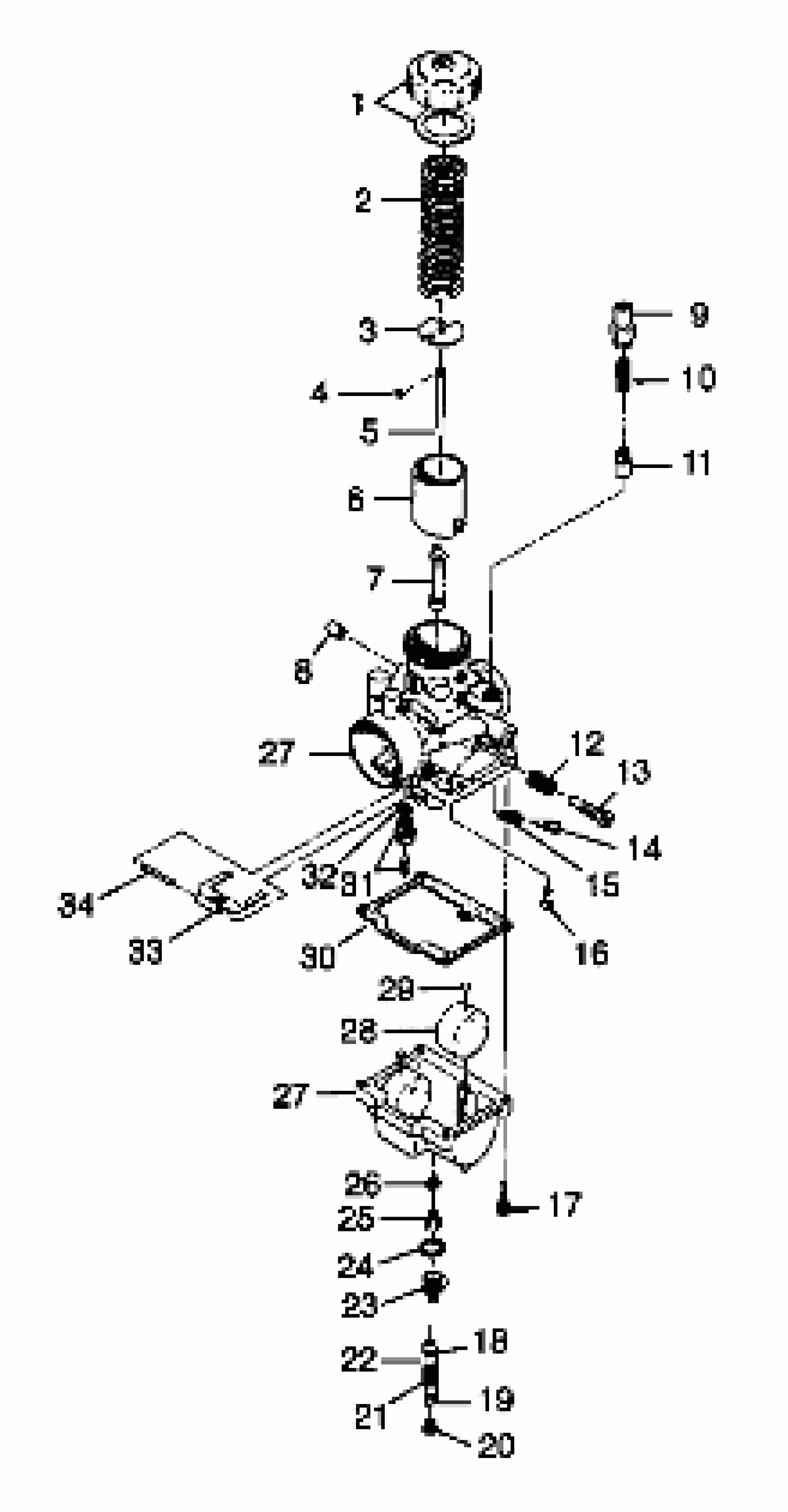

Polaris XLT CLASSIC - 099ED6AS CARBURETOR - 099ED6AS (4948404840c011) Diagram

#

Description
Price

1

TOP ASM

3130184

$32.37

2

SPRING,THROTTLE

3130439

$13.59

3

PLATE

3130027

$9.70

4

E-RING,(10)

3130508

$6.46

5

JET, NEEDLE (6DP17-3)

3130374

Unavailable

6

VALVE, THROTTLE (2.5)

3130466

Unavailable

7

NEEDLE JET,(Q-4) (480)

3130747

Unavailable

8

CAP

3130479

$14.56

9

HOLDER,GUIDE

3130199

$28.32

10

SPRING,PLUNGER

3130006

$8.89

11

PLUNGER ASM, STARTER

3130328

$32.37

12

SPRING,THROTTLE ADJ.

3130010

$8.89

13

SCREW,THROTTLE STOP

3130009

$19.99

14

SCREW,AIR

3130011

$19.99

15

SPRING,AIR ADJUST

3130012

$8.89

16

JET,PILOT,#40(10) (#40)

3130067

$10.99

17

SCREW & WASHER(10)

3130025

$3.19

18

CLAMP,SPRING,(10)

7080534

$1.59

19

CLAMP,HOSE(10)

7080544

Unavailable

20

PLUG,TRAP

5431893

$12.94

21

CONDUIT,(6 CM.),CONVOLUTED Substituted by 8360049-153

8360049-06

Unavailable

22

FUEL LINE, 5 FT.

8450045-153

$99.99

23

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

24

O RING

3130239

Unavailable

25

JET,MAIN,HX.HD#240(10) (#240)

3130127

$7.99

26

WASHER (10)

3130014

$1.59

27

CARBURETOR ASM. Substituted by 3130699 (Incl. 1-17,23-34)

3130748

Unavailable

27

CARBURETOR ASM. Substituted by 3130699 (Incl. 1-17,23-34)

3130748

Unavailable

28

FLOAT ASM.

3130430

$43.56

29

CAP,(10)

3130237

$4.03

30

PACKING,FLOAT CHAMBER

3130020

$16.17

31

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

32

PACKING(10)

3130017

$4.03

33

ARM,FLOAT

3130018

$24.27

34

PIN, FLOAT

3130361

$8.89
