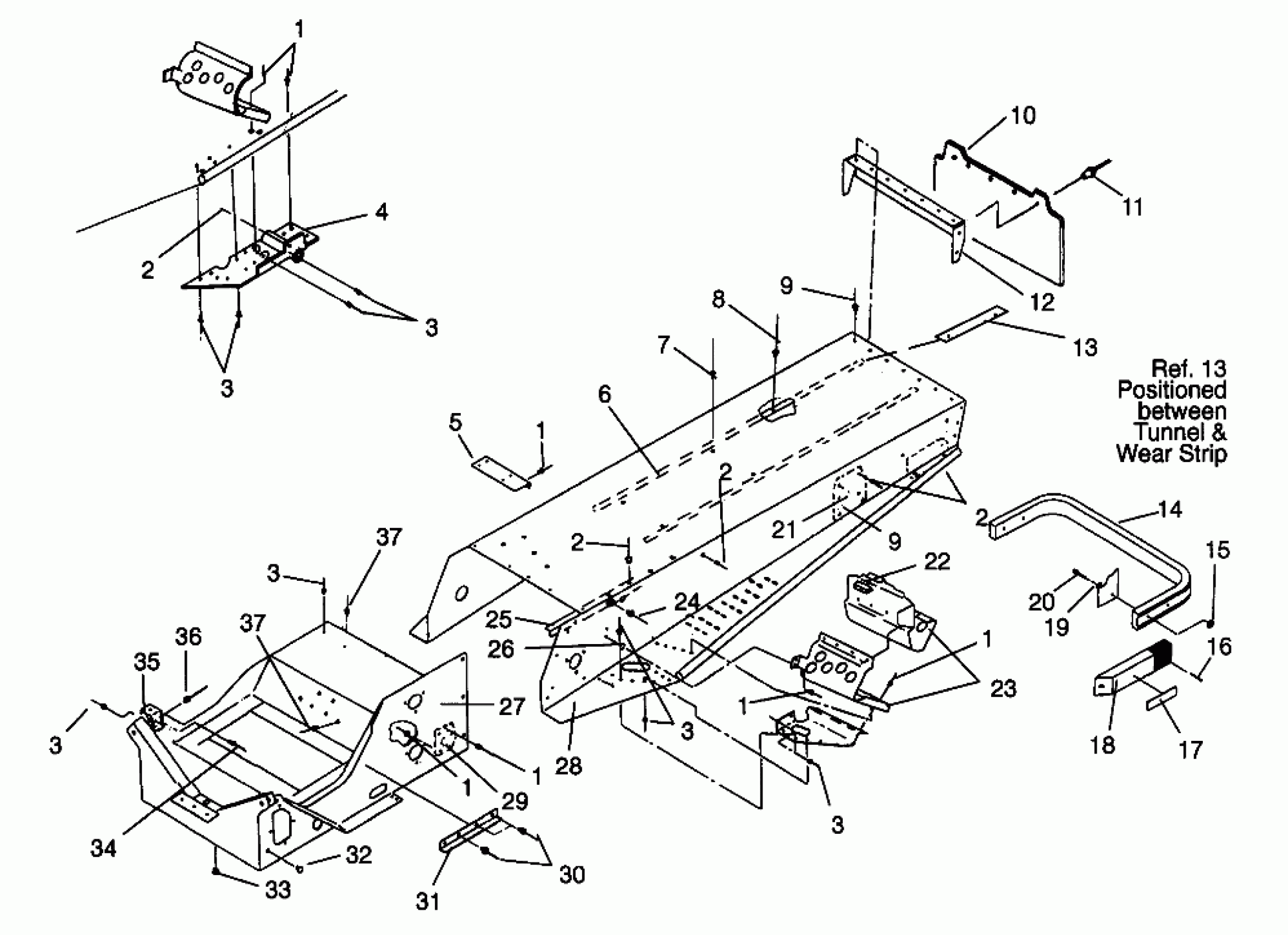

Polaris XLT - 0966756 TUNNEL XLT 0966756 (4933823382A006) Diagram
#
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
2
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
2
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
2
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
4
MT,TRLG.ARM,LH,BLK.
1012054-067
Unavailable
4
MT,TRLG.ARM,RH,BLK.
1012055-067
Unavailable
5
BRKT, TOOL BOX
5220973
Unavailable
6
STRIP,WEAR
5131241
Unavailable
7
RIVET,3/16X.402(50)
7621432
$1.49
8
POP RIVET(50)
7621402
$1.49
9
RIVET,SEMI-TUBE,(50)
7661841
$1.49
9
RIVET,SEMI-TUBE,(50)
7661841
$1.49
10
FLAP,SNOW (XTRA-12)
5432033
Unavailable
11
POP RIVET(50)
7621418
$1.49
12
PANEL,TUNNELBACK
5241053
Unavailable
13
SHIM,WEAR STRIP
5211651
Unavailable
14
BUMPER,REAR,STD.
5224674-067
Unavailable
15
NUT-LOCK(10)
7542122
$1.49
16
SCREW(10)
7511863
$1.99
17
REFLECTOR RED
2670070
$9.91
18
CAP, BUMPER, BLK.
5430930-070
Unavailable
19
WASHER(10)
7558301
$1.49
20
BOLT(10)
7512240
$3.99
21
MT,LH,REAR SUSP,BLK Substituted by 1012431-067
1012265-067
$18.89
21
MT,RH,REAR SUSP,BLK Substituted by 1012432-067
1012266-067
Unavailable
22
EXTRUSION,CLUTCHGUARD
5521238
$6.46
23
FOOTREST,LH,BLK.
1012263
Unavailable
23
FOOTREST,RH,BLK.
1012264
Unavailable
24
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
25
BRACE,REINF.TUNNEL
5240242
Unavailable
26
SNAP-MALE(10)
7080227
Unavailable
27
BULKHEAD,BLK,(600LOW)
1012341-067
Unavailable
28
TUNNEL,LIQ,(LT) (Incl. 12,21,25, & Cooling Ext.)
1012383
Unavailable
29
MOUNT,RH,F.SUSP.BLK.
1012270-067
$66.99
29
MOUNT,LH,F.SUSP.BLK.
1012269-067
$66.99
30
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
31
GUARD,ADAPTER GUIDE
5222857
$12.94
32
PLUG, HOLE(10)
7080512
$2.63
33
PLUG-HOLE
7080398
$4.84
34
Rivet (See Pg., Ref.)
-------
Unavailable
35
Weld., Muffler Support (See Pg., Ref.)
-------
Unavailable
36
RIVET(50)
7621452
$1.49
37
RIVET(50)
7621470
$3.17
37
RIVET(50)
7621470
$3.17
