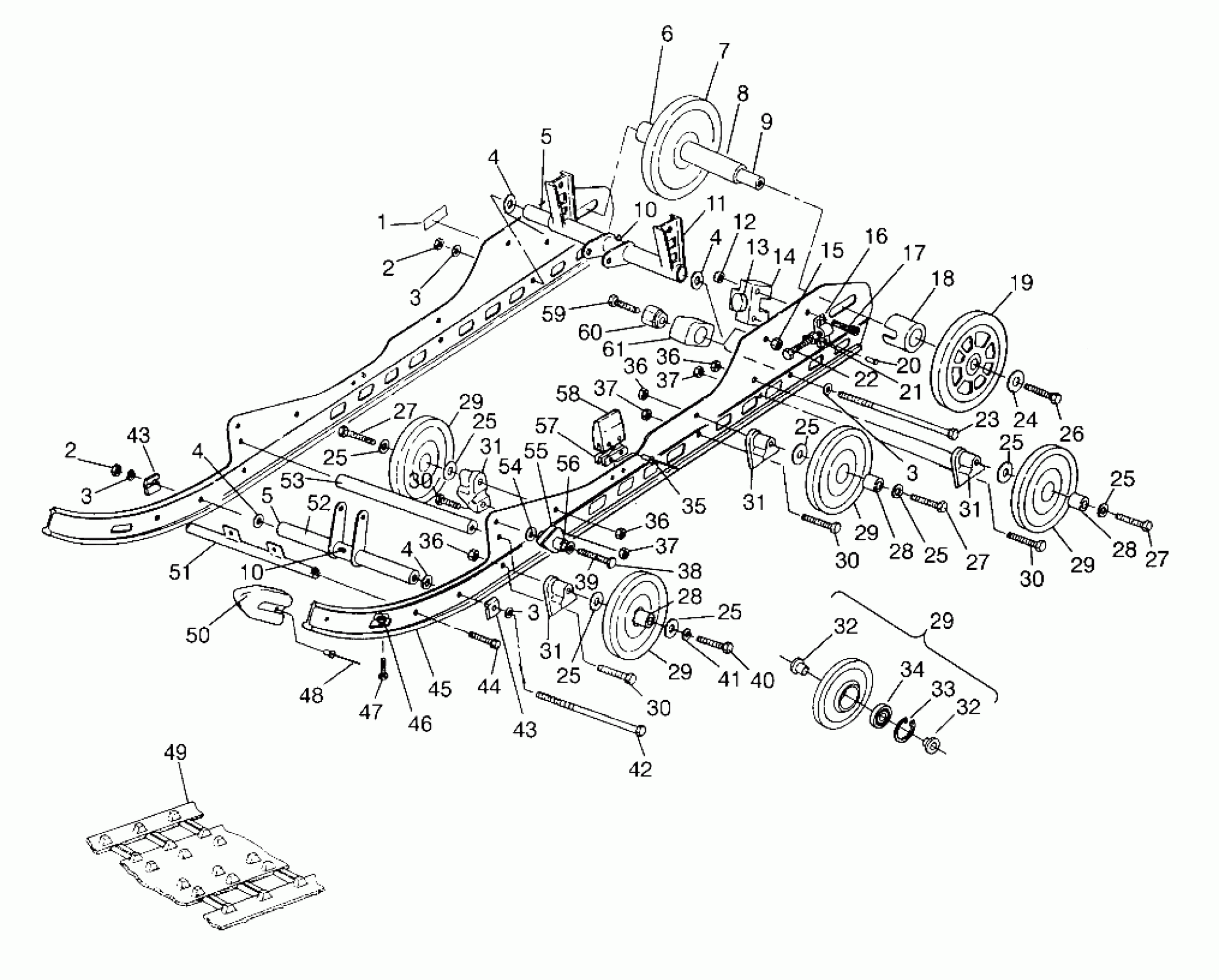

Polaris XLT - 0966756 SUSPENSION XLT 0966756 (4933823382B010) Diagram

#

Description
Price

-

RAIL ASM,LH,(XTRA-12) (Incl. 16, 48, 57, 58)

1540998

Unavailable

-

RAIL ASM,RH,(XTRA-12) (Incl. 16, 48, 57, 58)

1540999

Unavailable

1

DECAL,"PAT.PENDING"

7074922

Unavailable

2

NUT FLEX LOC,(10)

7542402

$6.39

2

NUT FLEX LOC,(10)

7542402

$6.39

3

WASHER(10) Substituted by 7555806

7555720

$0.79

3

WASHER(10) Substituted by 7555806

7555720

$0.79

3

WASHER(10) Substituted by 7555806

7555720

$0.79

3

WASHER(10) Substituted by 7555806

7555720

$0.79

4

WASHER(10)

7555893

$1.49

4

WASHER(10)

7555893

$1.49

4

WASHER(10)

7555893

$1.49

4

WASHER(10)

7555893

$1.49

5

SHAFT

5333404

$24.27

5

SHAFT

5333404

$24.27

6

SPACER INNER IDLER

5010169

Unavailable

7

WHEEL, IDLER Substituted by 1594079-070 (Black)

1594021

Unavailable

8

SPACER,IDLER,R.INNER

5333086

Unavailable

9

SHAFT,IDLER

5020722

Unavailable

10

ZERK,FITTING,THREADED(10)

7080433

$1.49

10

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

ARM,R.PIVOT

1540971-067

Unavailable

12

NUT, LOCK(10)

7542103

$5.59

13

BUMPER,R.PIVOT ARM

5410937

$5.75

14

BLOCK,R.PIVOT ARM STOP

5131111

Unavailable

15

NUT LOCK(10)

7542403

$3.99

16

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

17

SCREW(10)

7515156

$3.99

18

SPACER-IDLER-OUTER

5332641

Unavailable

19

WHEEL,IDLER,LAV. (Lavender)

1594049

Unavailable

20

RIVET,(50)

7621501

$2.39

21

NUT(10)

7542440

Unavailable

22

BOLT, ADJUSTER(10)

7515455

$29.99

23

SCREW(10)

7515543

Unavailable

24

WASHER(10) Substituted by 7556130

7571629

Unavailable

25

WASHER, FLAT(10)

7555852

$2.39

25

WASHER, FLAT(10)

7555852

$2.39

25

WASHER, FLAT(10)

7555852

$2.39

25

WASHER, FLAT(10)

7555852

$2.39

25

WASHER, FLAT(10)

7555852

$2.39

25

WASHER, FLAT(10)

7555852

$2.39

25

WASHER, FLAT(10)

7555852

$2.39

25

WASHER, FLAT(10)

7555852

$2.39

26

BOLT(10)

7515526

$1.19

27

BOLT(10)

7512538

$6.39

27

BOLT(10)

7512538

$6.39

27

BOLT(10)

7512538

$6.39

28

SPACER, WHEEL

5333116

$7.99

28

SPACER, WHEEL

5333116

$7.99

28

SPACER, WHEEL

5333116

$7.99

29

WHEEL, IDLER (Incl. 32-34)

1543018

$56.65

29

WHEEL, IDLER (Incl. 32-34)

1543018

$56.65

29

WHEEL, IDLER (Incl. 32-34)

1543018

$56.65

29

WHEEL, IDLER (Incl. 32-34)

1543018

$56.65

29

WHEEL, IDLER (Incl. 32-34)

1543018

$56.65

30

BOLT(10)

7512404

$3.99

30

BOLT(10)

7512404

$3.99

30

BOLT(10)

7512404

$3.99

30

BOLT(10)

7512404

$3.99

31

SPACER

5630399

$11.99

31

SPACER

5630399

$11.99

31

SPACER

5630399

$11.99

31

SPACER

5630399

$11.99

32

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

32

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

33

RET.RING-TRUARC (1 per)

7718407

$4.79

34

BEARING (1 per)

3514303

$11.99

35

RIVET,(50)

7621488

$3.99

36

NUT, NYLOCK(10)

7542525

$4.79

36

NUT, NYLOCK(10)

7542525

$4.79

36

NUT, NYLOCK(10)

7542525

$4.79

36

NUT, NYLOCK(10)

7542525

$4.79

37

NUT-LOCK(10)

7542439

$1.49

37

NUT-LOCK(10)

7542439

$1.49

37

NUT-LOCK(10)

7542439

$1.49

38

BOLT(10)

7515538

$6.39

39

WASHER(10)

7555797

$3.99

40

BOLT(10)

7512508

$7.19

41

WASHER LOCK(10)

7553101

$3.99

42

BOLT

7515546

Unavailable

43

BOSS,BOLT HEAD

5131112

$19.99

43

BOSS,BOLT HEAD

5131112

$19.99

44

BOLT

7515542

Unavailable

45

SLIDER,BLACK(2)

5521320

Unavailable

46

NUT-LOCK(10)

7542122

$1.49

47

SCREW(10)

7515153

$3.99

48

RIVET(50)

7621435

$1.49

49

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

49

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

49

TRACK,121"X1",MOD(LIGHTNING) Substituted by 5411825

5411059

Unavailable

50

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

51

SHAFT,LIMITER STRAP,BLK.

1012267-067

Unavailable

52

ARM,SHOCK PIVOT

1540968-067

$49.59

53

SHAFT,R.SHOCK BRKT.

5020649

Unavailable

54

WASHER(10)

7555743

Unavailable

55

BLOCK,SPRING SLIDER

5431924

$10.65

56

Bushing

5010332

$11.99

57

BRKT,BUMPER SUPPORT

5240946

Unavailable

58

BUMPER,JOUNCE,RAIL,LT

5811065

Unavailable

59

BOLT(10)

7515537

$10.99

60

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

61

BUMPER,F.PIVOT ARM

5410925

$12.94
