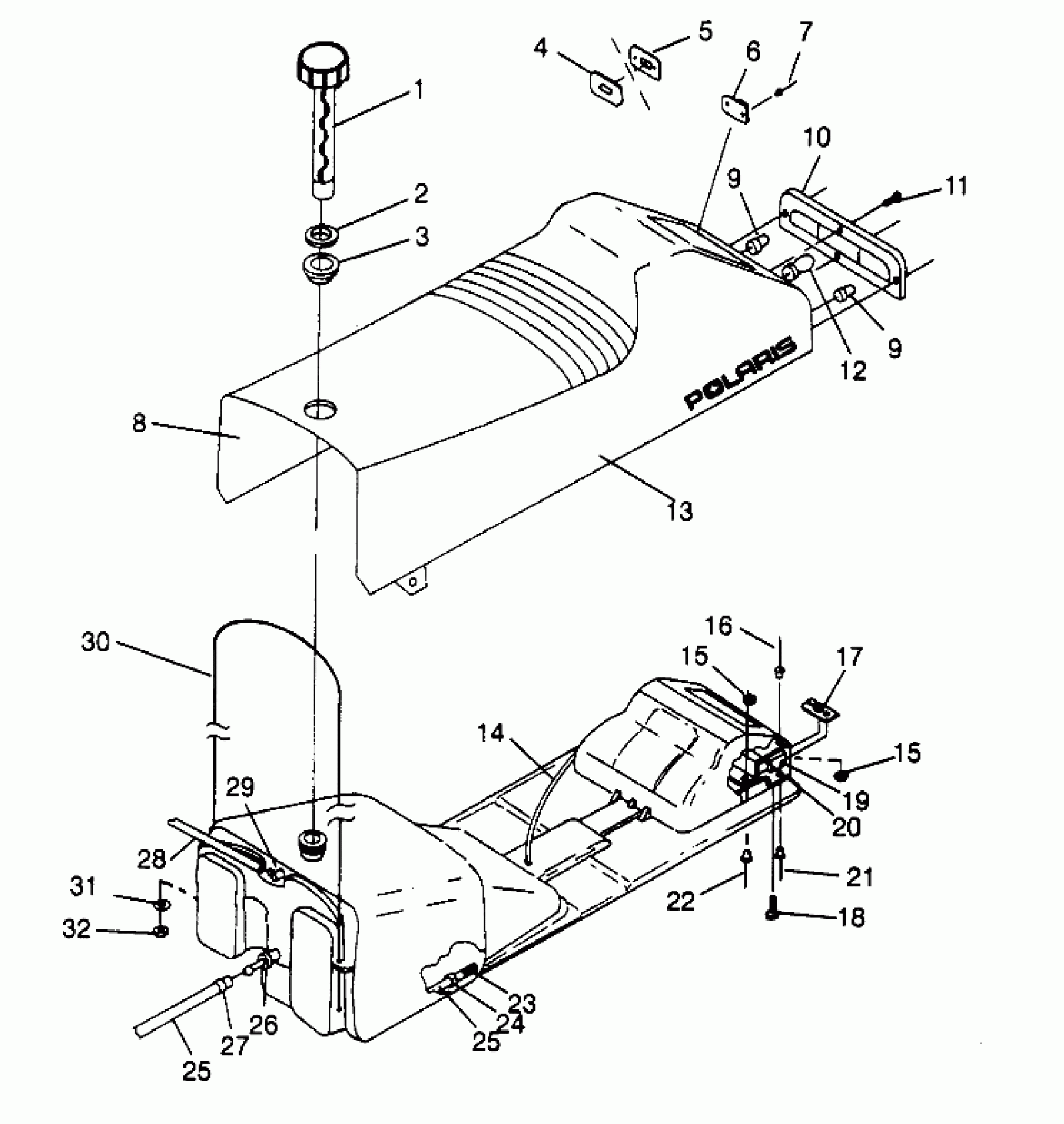

Polaris XLT - 0966756 SEAT and GAS TANK XLT 0966756 (4933823382A007) Diagram

#

Description
Price

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GASKET, GAS CAP

5810513

$8.89

3

GROMMET,FUELTANK

5410842

Unavailable

4

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

5

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

6

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

7

RIVET(50)

7621337

$1.49

8

SEAT ASM,STD. (Incl. 4-7, 9-26, 29, 30)

2681869

$399.99

9

BULB,TAILLIGHT(10)

4030024

$4.84

9

BULB,TAILLIGHT(10)

4030024

$4.84

10

LENS,TAILLIGHT

5430423

Unavailable

11

SCREW(10)

7511840

Unavailable

12

Bulb, Brakelight

4030045

Unavailable

13

COVER,SEAT,LONG

2681870

Unavailable

14

HARNESS,TAILLIGHT

2460398

Unavailable

15

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

15

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

16

RIVET, BLIND(50)

7621467

$1.49

17

NUT,RETAINER-WELD.(10)

7542147

$17.59

18

SCREW(10)

7512242

$2.39

19

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

20

COVER,T/L PROTECTOR

5431436

$21.43

21

RIVET(50)

7621301

$3.99

22

RIVET(50)

7621460

$1.49

23

FUELPICKUP,W/STRAINER

7052037

$12.94

24

RING, COMPRESSION(10)

7080402

$1.60

25

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

26

FITTING - OUTLET(10)

7052023

$24.99

27

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

28

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

29

FITTING,90 DEG,1/8,(10)

7052095

$4.79

30

CABLE,TANK,RETENTION

7080559

Unavailable

31

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

32

NUT(10)

7541925

$1.49
