Description

Price

1

STATOR PLATE ASM. (Incl. 1-4, 6, 7, 14-21)

3084473

Unavailable

2

COIL, PULSE

3084511

Unavailable

3

Band

3084099

Unavailable

4

SCREW & WASHER ASM.

3084096

Unavailable

5

BOLT&WASHER ASM.

3083866

Unavailable

6

STATOR

-------

Unavailable

7

SCREW&WASHER

3084510

Unavailable

8

FLYWHEEL ASM.

3084515

Unavailable

9

CDI SYSTEM

3084472

Unavailable

10

CAP SPARK PLUG,(10)

4020129

$9.70

11

CODE CP

3084516

$22.23

12

COIL, IGNITION

3085208

Unavailable

13

BOLT&WASHER

3083730

$4.79

14

COUPLER, 2P

3084513

Unavailable

15

COUPLER

3083909

$23.99

16

COUPLER,MALE

3081513

$19.99

17

HARNESS, WIRE (Incl. 2, 14-16, 18)

3084514

Unavailable

18

Grommet

3082969

Unavailable

19

Clamp

3081146

$1.49

20

SCREW&WASHER ASM(10)

3081256

$3.19

21

BAND, WIRE

3084512

$4.92

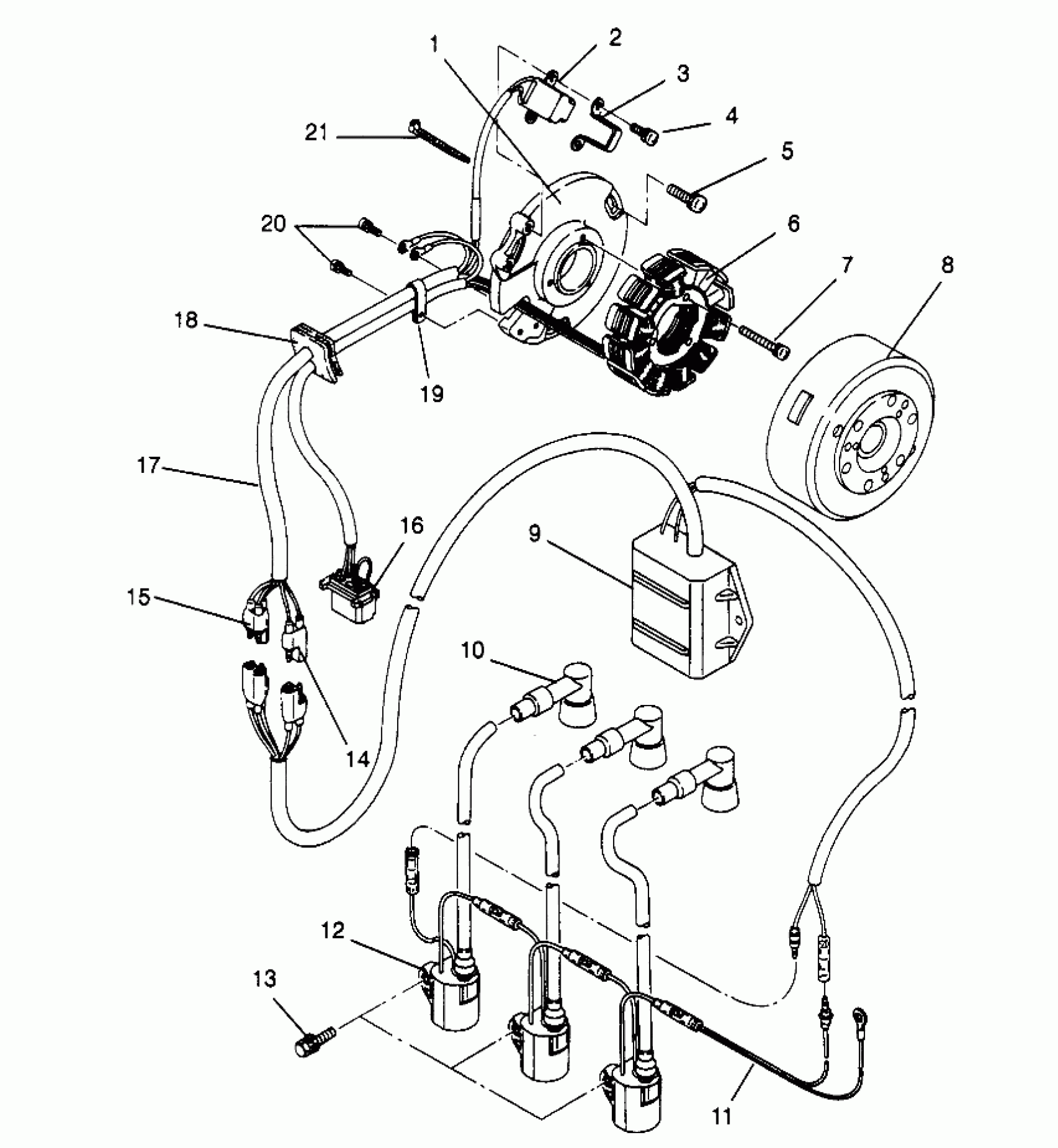

Polaris XLT - 0966756 MAGNETO XLT 0966756 (4933823382C012) Diagram

STATOR PLATE ASM. (Incl. 1-4, 6, 7, 14-21)

COIL, PULSE

Band

SCREW & WASHER ASM.

BOLT&WASHER ASM.

STATOR

SCREW&WASHER

FLYWHEEL ASM.

CDI SYSTEM

CAP SPARK PLUG,(10)

CODE CP

COIL, IGNITION

BOLT&WASHER

COUPLER, 2P

COUPLER

COUPLER,MALE

HARNESS, WIRE (Incl. 2, 14-16, 18)

Grommet

Clamp

SCREW&WASHER ASM(10)

BAND, WIRE
