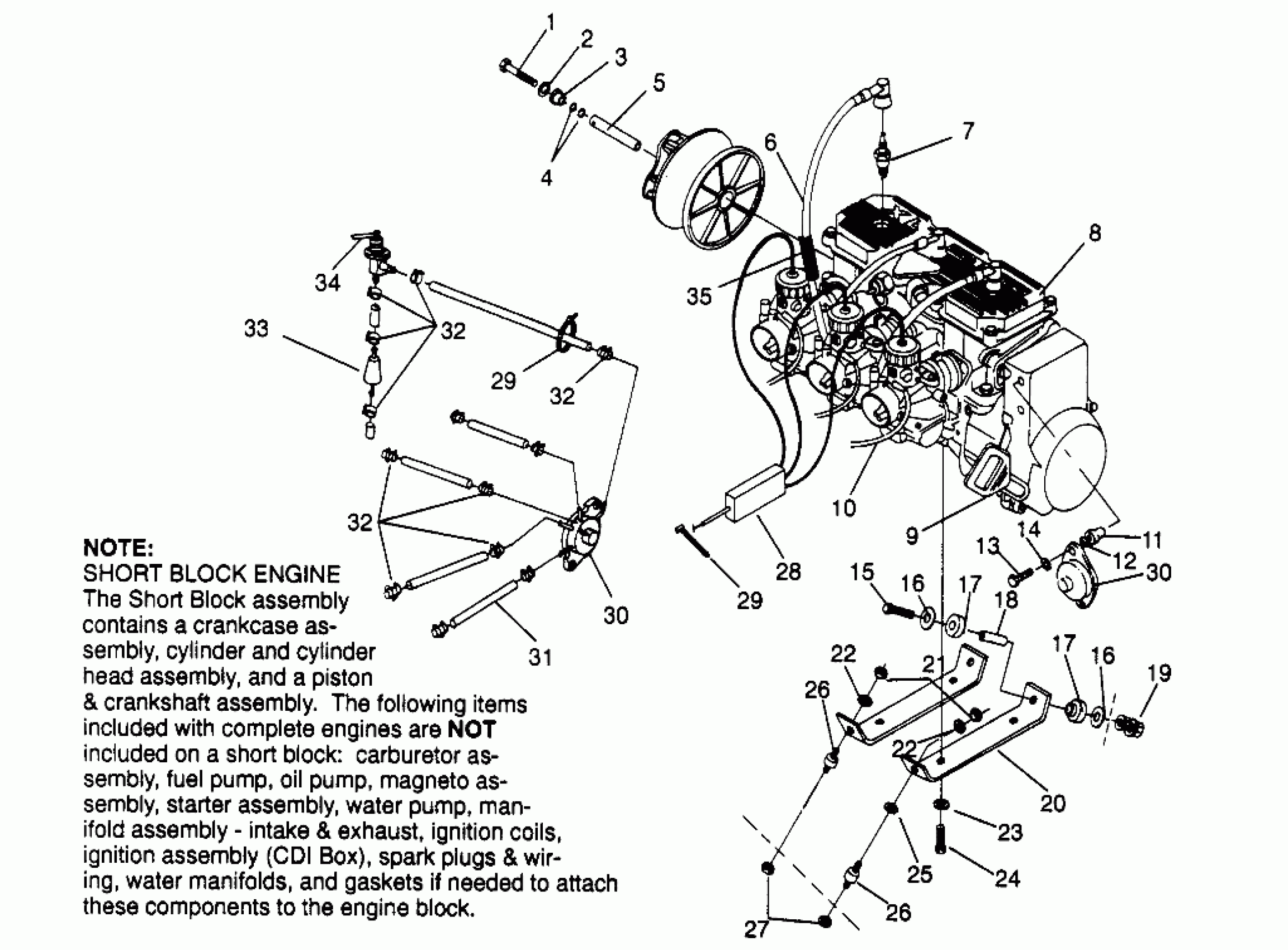

Polaris XLT - 0966756 ENGINE MOUNTING XLT 0966756 (4933823382C002) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAIN.

5010287

$12.99

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

CONDUIT,CONVOLUTED Substituted by 4010051-30

4010051

Unavailable

7

SPARKPLUG, RN3C(8)

3070166

$3.99

8

ENG.(S.B.)EC58PL-03 [Cannot Purchase as Assembly]

3084684

Unavailable

9

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

10

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

11

NUT-WELL(10)

7541923

$5.59

12

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

13

SCREW(10)

7512222

$2.39

14

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

15

SCREW(10)

7512530

$5.59

16

WASHER(10)

7555740

$1.59

16

WASHER(10)

7555740

$1.59

17

MOUNT, ENGINE

5410390

Unavailable

17

MOUNT, ENGINE

5410390

Unavailable

18

TUBE, SPACER

5333258

$2.63

19

NUT,FLANGE(10)

7542522

$5.59

20

PLATE,LH,MTR.MT.

5240801

Unavailable

20

PLATE,RH,MTR.MT.

5240802

$36.51

21

NUT-LOCK(10)

7542439

$1.49

22

WASHER(10) Substituted by 7555806

7555720

$0.79

22

WASHER(10) Substituted by 7555806

7555720

$0.79

23

WASHER LOCK(10)

7553101

$3.99

24

BOLT(10)

7512575

Unavailable

25

WASHER(10)

7555721

$1.49

26

MOUNT

3110022

Unavailable

26

MOUNT

3110022

Unavailable

27

NUT LOCK(10)

7542411

$3.19

28

CABLE,THROTTLE,W/OIL

7080543

$157.84

29

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

30

Fuel Pump (See Pg. A37, Ref. 1)

-------

Unavailable

30

Fuel Pump (See Pg. A37, Ref. 1)

-------

Unavailable

31

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

32

HOSE CLAMP, RED

7080003

$1.49

32

HOSE CLAMP, RED

7080003

$1.49

32

HOSE CLAMP, RED

7080003

$1.49

33

FILTER FUEL,(10)

2530008

$4.84

34

VALVE,FUEL SHUT-OFF

7052060

Unavailable

35

CONDUIT,CONVOL(15 CM) Substituted by 4010051-30

4010051-15

Unavailable
