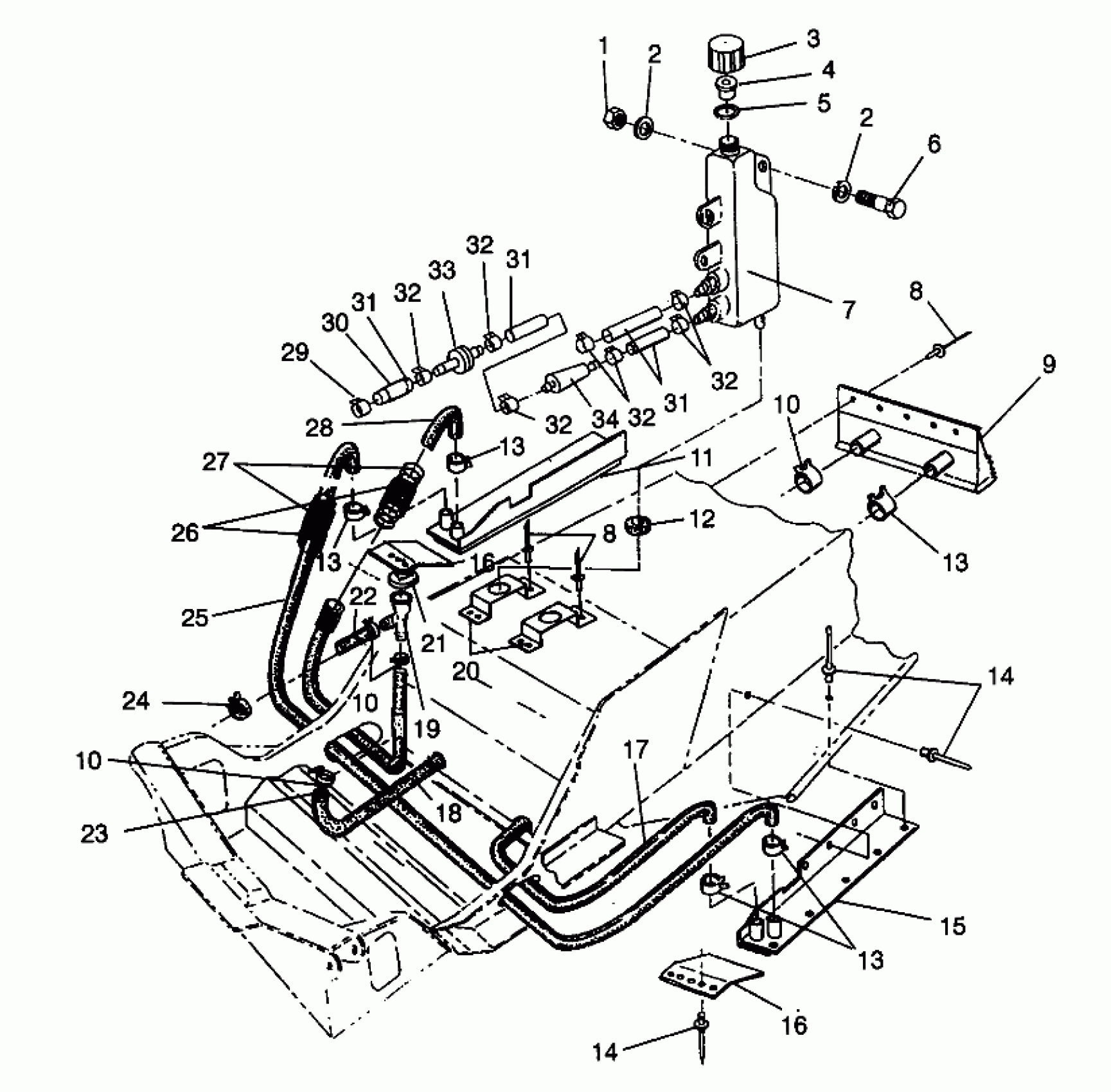

Polaris XLT - 0966756 COOLING SYSTEM XLT 0966756 (4933823382B006) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER,COOL.CTR.
2511239
Unavailable
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
COOLING WELD,RH,SIDE,LT
2511251
$205.99
12
GROMMET RUBBER
5410021
Unavailable
13
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
13
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
13
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
13
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
14
RIVET,INTERLOCK,B(50)
7661638
$1.49
14
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
COOLING WELD,LH,SIDE,LT
2511250
Unavailable
16
GUARD, COOL.EXT.
5222863
$32.99
16
GUARD, COOL.EXT.
5222863
$32.99
17
HOSE-CROSSOVER (Short)
5410350
Unavailable
18
HOSE, CENTER
5410673
Unavailable
19
FILLER,REMOTE COOLANT Substituted by 5433364
5431931
Unavailable
20
BRACKET
5223985
Unavailable
21
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
22
HOSE,ENG.OUT/FILLER
5411010
$24.27
23
SPRING,HOSE RETAINER
7042041
Unavailable
24
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842
7080563
Unavailable
25
HOSE-CROSSOVER
5410324
Unavailable
26
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
27
SPRING,HOSE RETAINER
7041079
$4.95
28
HOSE,RH,FILLER OUT,EXTRUSION
5411011
Unavailable
29
CLAMP-HOSE(10)
7080134
Unavailable
30
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
31
FUEL LINE,1/4 ID(1525 CM.) (Service)
8450003-1525
Unavailable
31
FUEL LINE,1/4 ID(1525 CM.) (Service)
8450003-1525
Unavailable
31
FUEL LINE,1/4 ID(1525 CM.) (Service)
8450003-1525
Unavailable
32
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
32
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
32
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
32
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
32
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
33
VALVE, CHECK
7052038
$10.51
34
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
