Description

Price

1

CONSOLE

5222756-067

Unavailable

2

KIT,CHOKE CONTROL

2200189

$20.22

3

CABLE, CHOKE

7080283

$109.99

4

SW,HEATER,HI-LOW

4110077

Unavailable

4

SW,HEATER,HI-LOW

4110077

Unavailable

5

HOUSING

4020133

Unavailable

6

Housing w/Receptacle

4020057

$3.51

7

HARNESS,MAIN WIRE,(XLT)

2460430

$126.98

8

Housing

4020153

$1.49

9

DECAL, CONSOLE [No Longer Available]

7073075

Unavailable

10

NUT(10)

7541925

$1.49

11

REGULATOR,14 VAC.LR-9

4060122

Unavailable

12

SPACER,REGULATOR

5211573

Unavailable

13

BOLT(10)

7512031

$2.23

14

RIVET-3/16-.090-.290

7661637

$1.49

14

RIVET-3/16-.090-.290

7661637

$1.49

15

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)

5410611

Unavailable

16

NUT, IGN.SWITCH(10)

7543101

Unavailable

17

KIT,IGN. SWITCH (Incl. 15)

2200357

Unavailable

18

Nut

7080229

$19.99

19

WASHER-LOCK(10)

7571610

$3.99

20

RIVET,(50)

7621477

$1.19

21

GUIDE, RECOIL

5431385

$10.51

22

BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot

5222682-067

Unavailable

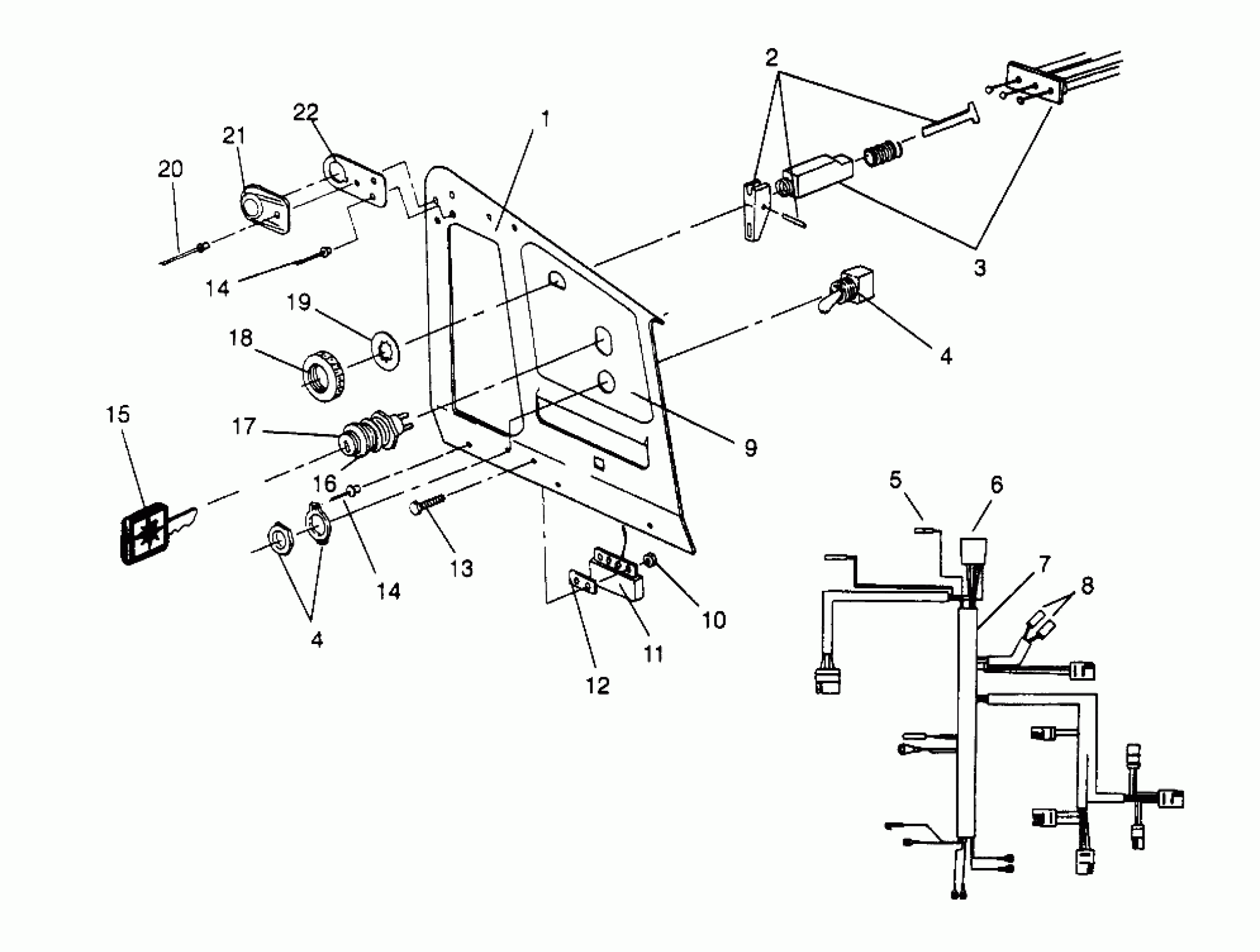

Polaris XLT - 0966756 CONSOLE XLT 0966756 (4933823382A014) Diagram

CONSOLE

KIT,CHOKE CONTROL

CABLE, CHOKE

SW,HEATER,HI-LOW

SW,HEATER,HI-LOW

HOUSING

Housing w/Receptacle

HARNESS,MAIN WIRE,(XLT)

Housing

DECAL, CONSOLE [No Longer Available]

NUT(10)

REGULATOR,14 VAC.LR-9

SPACER,REGULATOR

BOLT(10)

RIVET-3/16-.090-.290

RIVET-3/16-.090-.290

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)

NUT, IGN.SWITCH(10)

KIT,IGN. SWITCH (Incl. 15)

Nut

WASHER-LOCK(10)

RIVET,(50)

GUIDE, RECOIL

BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot
