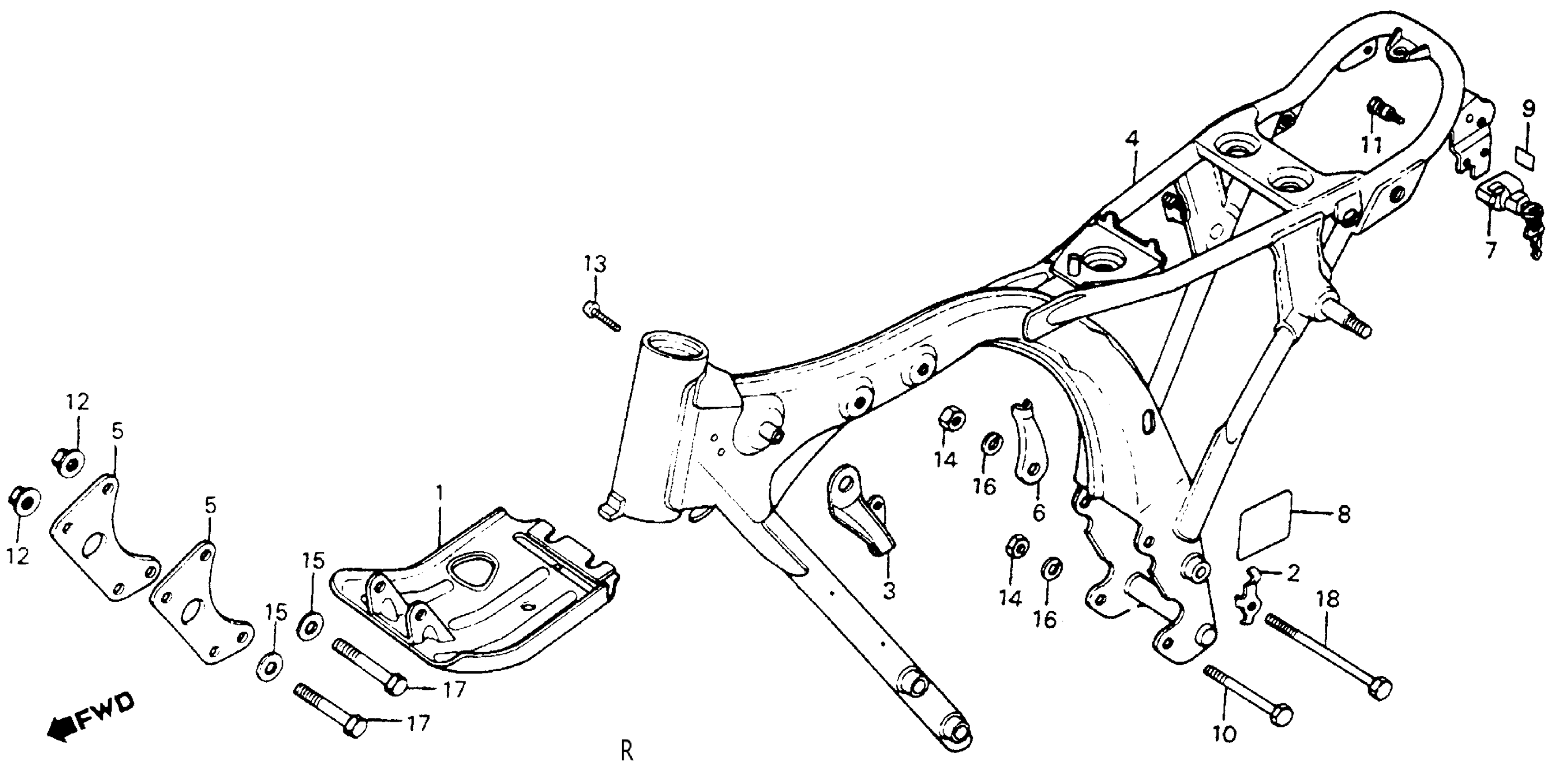

Honda XL80SA (85) MOTORCYCLE, JPN, VIN# JH2HD040-FK500001 FRAME Diagram

PROTECTOR, CRANKCASE (NOT AVAILABLE) This part replaces 11911-195-670.

11911-195-000

Unavailable

CLIP, ALTERNATOR WIRE (NOT AVAILABLE)

32907-149-000

Unavailable

FRAME *R119* (FLASH RED)

50100-195-840ZA

Unavailable

FRAME *R110* (MONZA RED)

50100-195-840ZB

Unavailable

PLATE, FR. ENGINE HANGER *R110* (MONZA RED) (NOT AVAILABLE)

50351-149-000ZD

Unavailable

PLATE, FR. ENGINE HANGER *R119* (FLASH RED) (NOT AVAILABLE)

50351-149-000ZE

Unavailable

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50356-149-000

Unavailable

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-195-700

Unavailable

LABEL, HELMET HOLDER

87511-323-670

$2.72

BOLT, HEX. (8X95) (NOT AVAILABLE)

90102-149-000

Unavailable

BOLT B, SPECIAL (6MM)

90107-195-860

Unavailable

BOLT B, SPECIAL (6MM) This part replaces 90107-428-000.

90107-195-860

Unavailable

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, HEX. (8MM)

94030-08000

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

BOLT, HEX. (8X60) This part replaces 95300-08060-00.

95301-08060-00

$1.49

BOLT, HEX. (8X100)

95300-08100-00

Unavailable
