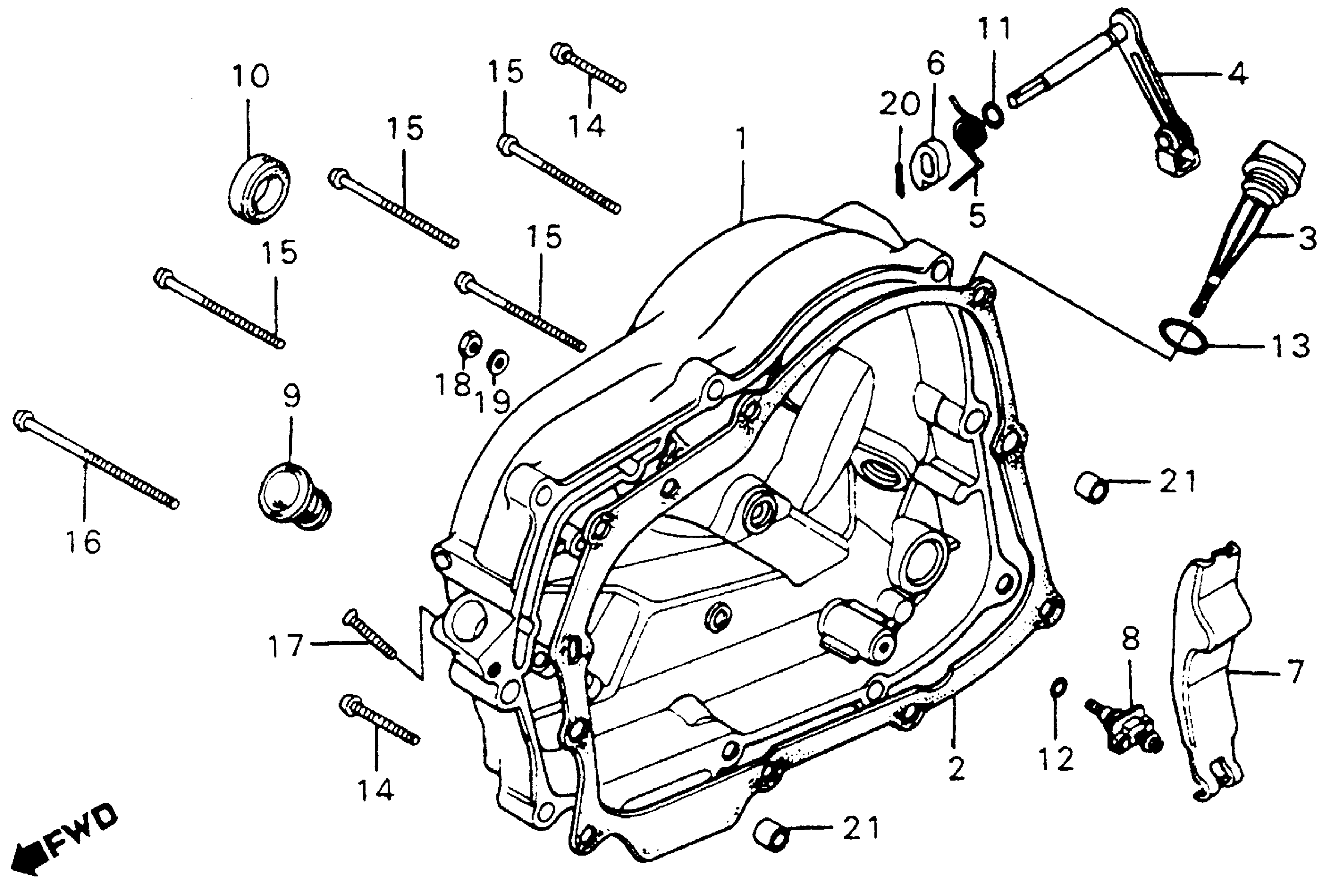

Honda XL80SA (84) MOTORCYCLE, JPN, VIN# JH2HD040-EK400001 TO JH2HD040-EK403140 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-KA8-000

Unavailable

2

GASKET, R. This part replaces 11393-KN4-750.

11393-KN4-752

$16.94

2

GASKET, R. This part replaces 11393-149-000.

11393-KN4-752

$16.94

2

GASKET, R. This part replaces 11393-436-000.

11393-KN4-752

$16.94

3

DIPSTICK, OIL This part replaces 15650-086-000.

15650-KA9-680

$7.78

4

LEVER, CLUTCH

22810-149-000

Unavailable

5

SPRING, CLUTCH LEVER

22815-149-000

$2.54

6

CAM, CLUTCH LIFTER

22821-116-000

$7.75

7

LEVER, CLUTCH ADJUSTING (NOT AVAILABLE)

22830-149-000

Unavailable

8

SCREW, CLUTCH ADJUSTING

22831-107-000

Unavailable

10

OIL SEAL (18X29X7)

91204-286-003

$4.31

11

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

11

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

11

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

12

O-RING (6X2.2)

91301-704-000

$2.92

13

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

13

O-RING (18X3)

91307-035-000

$2.92

14

SCREW, PAN (6X40) This part replaces 93500-06038.

93500-06040-0A

$1.49

14

SCREW, PAN (6X40) This part replaces 93500-06038-0A.

93500-06040-0A

$1.49

14

SCREW, PAN (6X40)

93500-06040-0A

$1.49

15

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

15

SCREW, PAN (6X80)

93500-06080-0A

$1.49

16

SCREW, PAN (6X100) This part replaces 93500-06098.

93500-06100-0A

$1.49

16

SCREW, PAN (6X100) This part replaces 93500-06098-0A.

93500-06100-0A

$1.49

16

SCREW, PAN (6X100)

93500-06100-0A

$1.49

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

PIN, COTTER (2.0X15)

94201-20150

$1.49

21

PIN A, DOWEL (8X14)

94301-08140

$2.25
