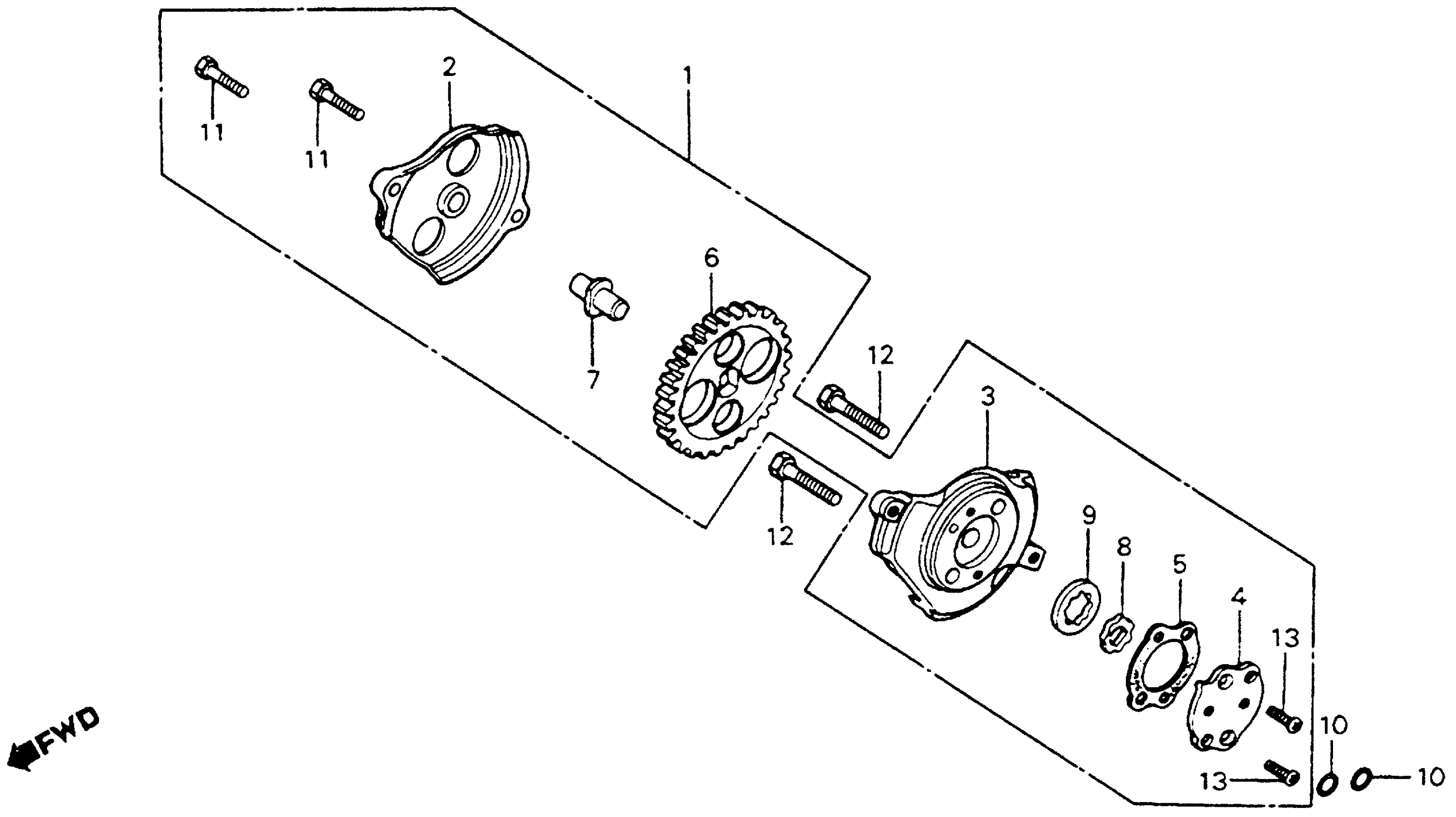

Honda XL80SA (84) MOTORCYCLE, JPN, VIN# JH2HD040-EK400001 TO JH2HD040-EK403140 OIL PUMP Diagram

PUMP ASSY., OIL

15100-153-000

$149.33

COVER, OIL PUMP GEAR

15106-153-000

Unavailable

BODY, OIL PUMP (NOT AVAILABLE)

15111-149-000

Unavailable

PLATE, OIL PUMP

15116-107-020

Unavailable

GASKET, OIL PUMP

15126-107-020

$1.70

GEAR, OIL PUMP DRIVE (35T)

15131-149-000

Unavailable

SHAFT, OIL PUMP

15136-436-000

Unavailable

ROTOR, OIL PUMP (INNER)

15331-115-000

Unavailable

ROTOR, OIL PUMP (OUTER)

15332-115-000

Unavailable

O-RING (9.4X2.4)

91304-KK3-830

$2.31

O-RING (9.4X2.4) This part replaces 91304-107-000.

91304-KK3-830

$2.31

BOLT, HEX. (5X18) (NOT AVAILABLE)

92000-05018-0H

Unavailable

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

SCREW, FLAT (4X12)

93600-04012-0A

$1.49
