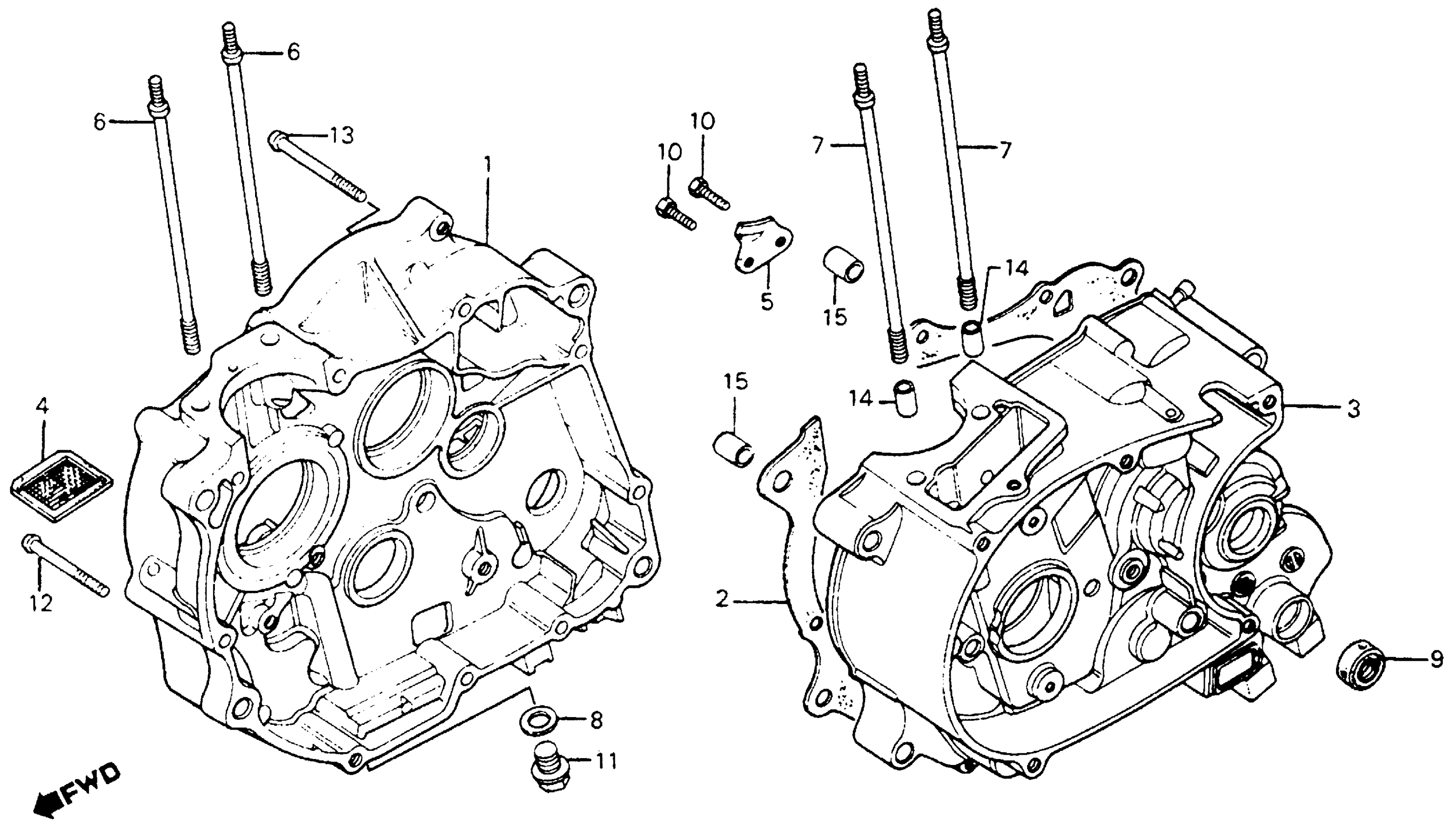

Honda XL80SA (84) MOTORCYCLE, JPN, VIN# JH2HD040-EK400001 TO JH2HD040-EK403140 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-GCR-000

$275.80

1

CRANKCASE, R. This part replaces 11100-176-010.

11100-GCR-000

$275.80

1

CRANKCASE, R. This part replaces 11100-176-020.

11100-GCR-000

$275.80

2

GASKET, CRANKCASE This part replaces 11191-GN1-730.

11191-GN1-732

$13.36

2

GASKET, CRANKCASE This part replaces 11191-GN1-880.

11191-GN1-732

$13.36

2

GASKET, CRANKCASE This part replaces 11191-149-000.

11191-GN1-732

$13.36

2

GASKET, CRANKCASE This part replaces 11191-149-306.

11191-GN1-732

$13.36

3

CRANKCASE, L. This part replaces 11200-176-010.

11200-176-020

Unavailable

3

CRANKCASE, L.

11200-176-020

Unavailable

4

SCREEN, OIL FILTER

15421-035-010

$3.80

5

PLATE, RATCHET GUIDE

28259-149-000

Unavailable

6

BOLT A, CYLINDER STUD

90031-176-000

$9.93

7

BOLT B, CYLINDER STUD

90032-176-000

$9.89

8

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

8

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

8

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

9

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

9

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-020.

91208-KB4-671

$4.06

9

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

9

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

9

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

9

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-005.

91208-KB4-671

$4.06

9

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

10

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

11

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

12

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

12

SCREW, PAN (6X45)

93500-06045-0A

$1.49

13

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

13

SCREW, PAN (6X55)

93500-06055-0A

$1.49

14

PIN A, DOWEL (10X16)

94301-10160

$2.28

15

PIN A, DOWEL (12X20)

94301-12200

$2.29
