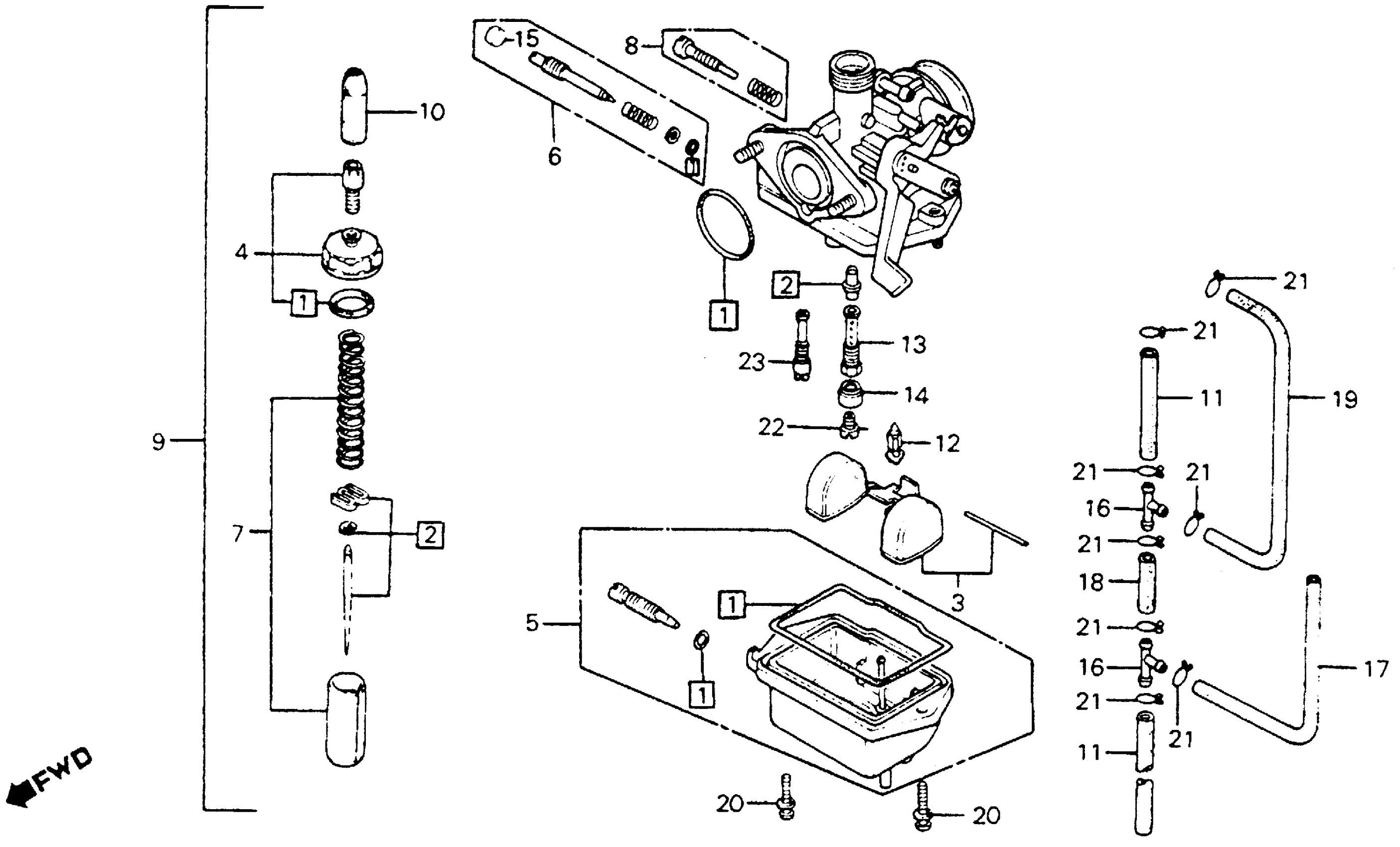

Honda XL80SA (84) MOTORCYCLE, JPN, VIN# JH2HD040-EK400001 TO JH2HD040-EK403140 CARBURETOR 83-85 Diagram

#

Description
Price

1

GASKET SET

16010-195-671

Unavailable

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-195-671

Unavailable

3

FLOAT SET

16013-166-004

Unavailable

4

TOP SET (NOT AVAILABLE)

16014-195-721

Unavailable

5

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-195-671

Unavailable

6

SCREW SET A (NOT AVAILABLE)

16016-195-671

Unavailable

7

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-195-671

Unavailable

8

SCREW SET B

16028-166-004

$19.87

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-195-732

Unavailable

10

CAP, CABLE SEALING

16118-166-004

$8.08

11

TUBE, FUEL This part replaces 16143-469-004.

16199-KG4-405

$9.49

11

TUBE, FUEL This part replaces 16198-HC0-405.

16199-KG4-405

$9.49

12

VALVE, FLOAT

16155-883-005

$20.11

13

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-195-671

Unavailable

14

HOLDER, JET (NOT AVAILABLE)

16168-195-671

Unavailable

15

CAP

16170-195-671

Unavailable

16

JOINT (T-TYPE)

16180-195-731

$12.95

17

TUBE, AIR VENT (150MM)

16195-195-731

Unavailable

18

TUBE, AIR VENT This part replaces 16198-MK6-405.

16199-428-405

$3.10

18

TUBE, AIR VENT This part replaces 16198-195-731.

16199-428-405

$3.10

18

TUBE, AIR VENT This part replaces 16199-KB4-791.

16199-428-405

$3.10

19

TUBE, OVERFLOW (NOT AVAILABLE)

16199-428-771

Unavailable

20

SCREW-WASHER (4X16)

93892-04016-08

$1.49

21

CLIP, TUBE (B6.5)

95002-02650

$1.49

22

JET, MAIN (#70) | (Optional).

99101-166-0700

Unavailable

22

JET, MAIN (#72)

99101-166-0720

Unavailable

23

JET, SLOW (#42)

99103-195-0420

Unavailable
