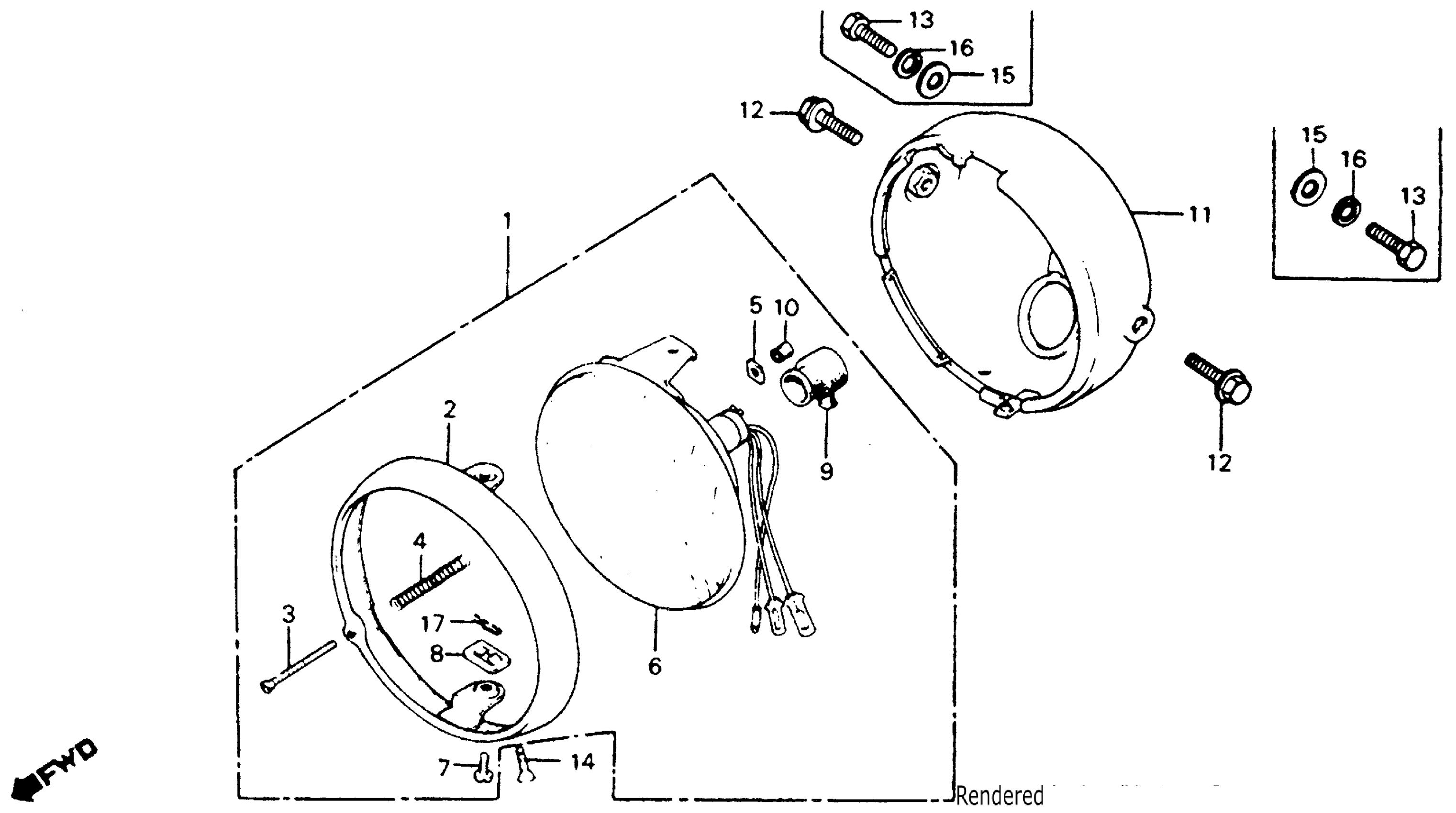

Honda XL80SA (83) MOTORCYCLE, JPN, VIN# JH2HD040-DK300006 TO JH2HD040-DK303996 HEADLIGHT Diagram

HEADLIGHT ASSY. (6V15/15W)

33100-111-671

Unavailable

RIM, HEADLIGHT (NOT AVAILABLE)

33101-111-671

Unavailable

SCREW, HEADLIGHT BEAM ADJ. (STANLEY)

33102-041-003

$2.25

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) This part replaces 33102-041-670.

33102-041-003

$2.25

SPRING, HEADLIGHT SETTING This part replaces 33107-030-000.

33107-030-003

$2.54

SPRING, HEADLIGHT SETTING

33107-030-003

$2.54

NUT, BEAM ADJ.

33117-041-003

$1.95

HEADLIGHT UNIT

33120-111-671

Unavailable

SCREW, UNIT HOLDER

33125-292-670

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.94

COVER, RUBBER

33130-111-671

Unavailable

COVER, ADJUSTING SCREW

33136-111-671

$1.93

CASE, HEADLIGHT *NH1* (STANLEY) (BLACK) (NOT AVAILABLE)

61301-150-003ZD

Unavailable

BOLT, FLANGE (8X25) (NOT AVAILABLE)

90119-383-000

Unavailable

SCREW, OVAL (5X12)

93700-05012-0B

$1.49

SCREW, OVAL (5X12) This part replaces 93700-05012-1B.

93700-05012-0B

$1.49

PIN, LOCK (5MM)

94251-05000

$1.49
