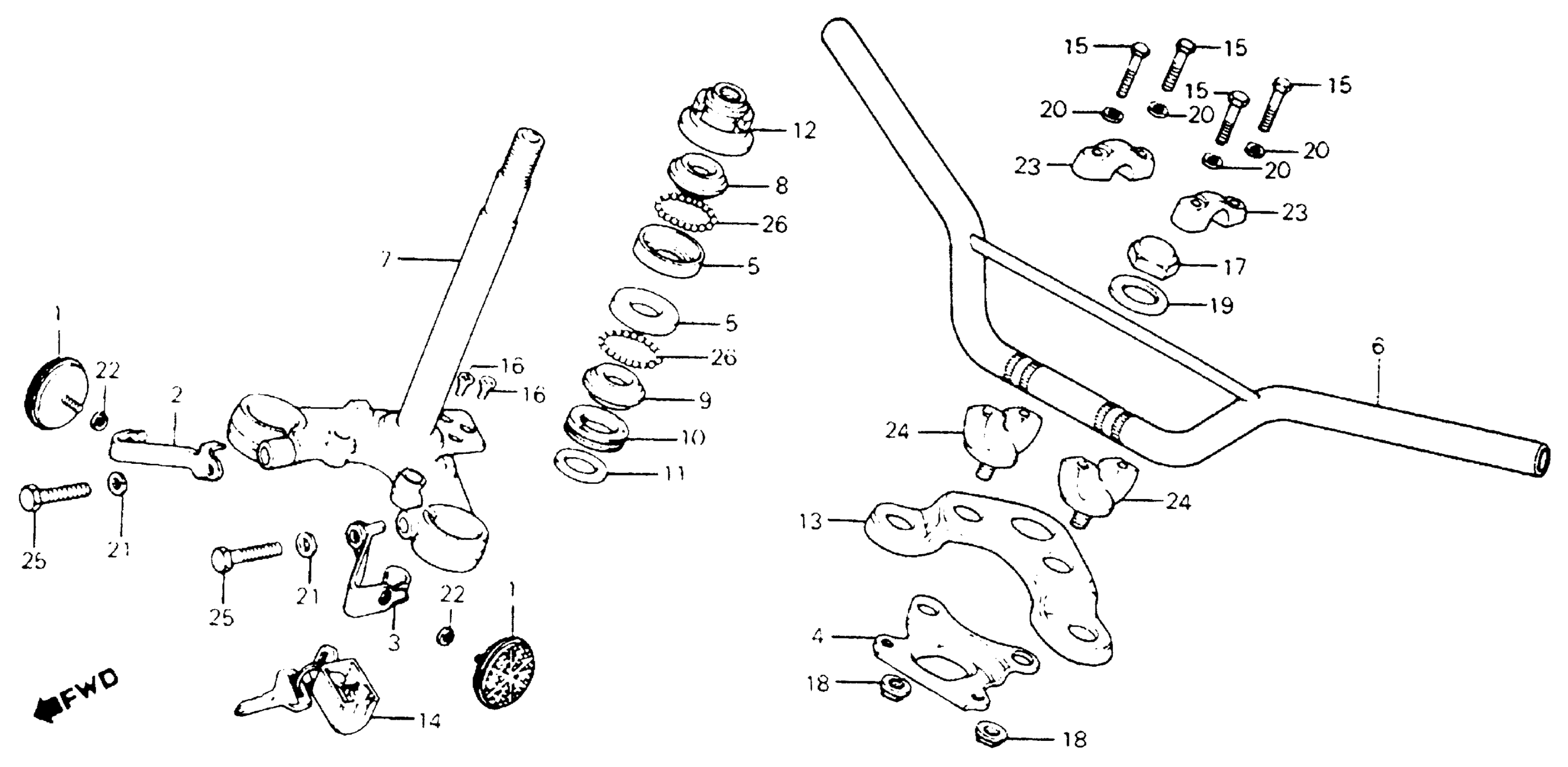

Honda XL80SA (81) MOTORCYCLE, JPN, VIN# JH2HD040-BK100003 TO JH2HD040-BK106767 HANDLEBAR + TOP BRIDGE + STEERING STEM 80-82 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-413-003.

33742-HB9-641

$13.14

1

REFLECTOR, FR. REFLEX This part replaces 33741-413-013.

33742-HB9-641

$13.14

1

REFLECTOR, FR. REFLEX

33742-HB9-641

$13.14

2

STAY, R. REFLECTOR (NOT AVAILABLE)

33751-149-000

Unavailable

3

STAY, L. REFLECTOR (NOT AVAILABLE)

33752-149-000

Unavailable

4

STAY B, SPEEDOMETER SETTING (NOT AVAILABLE)

37246-149-000

Unavailable

5

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

5

RACE, STEERING TOP BALL

50301-041-010

$12.39

6

HANDLEBAR *NH105* (MAT BLACK) (NOT AVAILABLE)

53100-195-000ZA

Unavailable

6

HANDLEBAR *NH105* (MAT BLACK) (NOT AVAILABLE) This part replaces 53100-195-670ZA.

53100-195-000ZA

Unavailable

7

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-150-000ZA

Unavailable

8

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

8

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

9

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

9

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

10

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

11

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

12

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

13

BRIDGE, FORK TOP *NH105* (MAT BLACK) (NOT AVAILABLE)

53231-116-670ZB

Unavailable

14

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$47.89

15

BOLT, HEX. (6X28)

90117-065-000

$2.62

16

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

17

NUT, STEERING STEM

90304-159-000

$7.02

17

NUT, STEERING STEM This part replaces 90304-195-670.

90304-159-000

$7.02

18

NUT, HEX. (10MM)

90354-115-000

$3.69

19

WASHER, STEERING STEM This part replaces 90503-011-000.

90503-051-870

$2.84

19

WASHER, STEERING STEM

90503-051-870

$2.84

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

WASHER, SPRING (6MM)

94111-06000

$1.49

23

HOLDER A2, HANDLEBAR (UPPER)

95014-21201

Unavailable

24

HOLDER B2, HANDLEBAR (LOWER)

95014-32200

Unavailable

25

BOLT, HEX. (8X35) (SOURCE: VINTAGE PARTS INC.)

95300-08035-00

Unavailable

26

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
