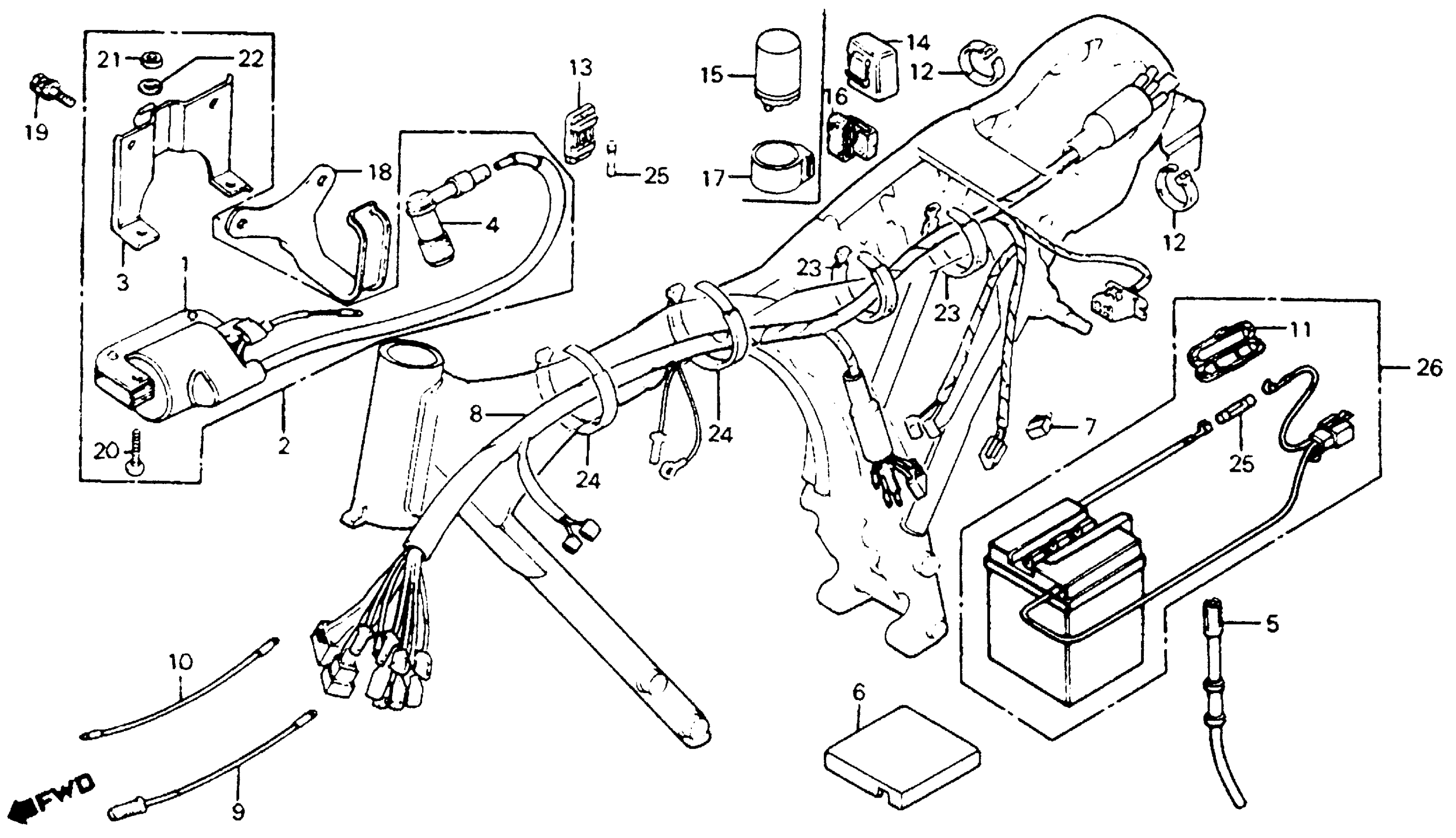

Honda XL80SA (80) MOTORCYCLE, JPN, VIN# HD04-5000014 TO HD04-5013496 WIRE HARNESS + IGNITION COIL + BATTERY Diagram

#

Description
Price

1

COIL ASSY., IGNITION

30500-153-003

Unavailable

3

STAY, IGNITION COIL MOUNT (NOT AVAILABLE)

30501-153-000

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$17.87

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$17.87

7

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

8

WIRE HARNESS (NOT AVAILABLE)

32100-195-670

Unavailable

12

BAND B1, CABLE

32161-404-000

$2.23

13

CASE, FUSE (NOT AVAILABLE)

38205-115-000

Unavailable

15

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-004.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

17

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

19

BOLT-WASHER (6X12)

93402-06012-00

$1.69

19

BOLT-WASHER (6X12) This part replaces 93412-06012-00.

93402-06012-00

$1.69

19

BOLT-WASHER (6X12) This part replaces 93482-06012.

93402-06012-00

$1.69

19

BOLT-WASHER (6X12) This part replaces 93482-06012-00.

93402-06012-00

$1.69

20

SCREW, PAN (6X20)

93500-06020-0H

$1.49

20

SCREW, PAN (6X20) This part replaces 93500-06020-08.

93500-06020-0H

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.49

21

NUT, HEX. (6MM)

94001-06080-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.49

22

WASHER, SPRING (6MM)

94111-06800

$1.49

23

BAND B1, CABLE

32161-404-000

$2.23

23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

24

BAND A3, CABLE

95014-61300

$1.97

25

FUSE A (10A)

98200-11000

$1.80

26

BATTERY (6N4C-1B) This part replaces 31500-098-506.

31500-098-506AH

Unavailable

26

BATTERY (6N4C-1B) This part replaces 31500-098-957.

31500-098-506AH

Unavailable

26

BATTERY (6N4C-1B) This part replaces 98203-66230.

31500-098-506AH

Unavailable
