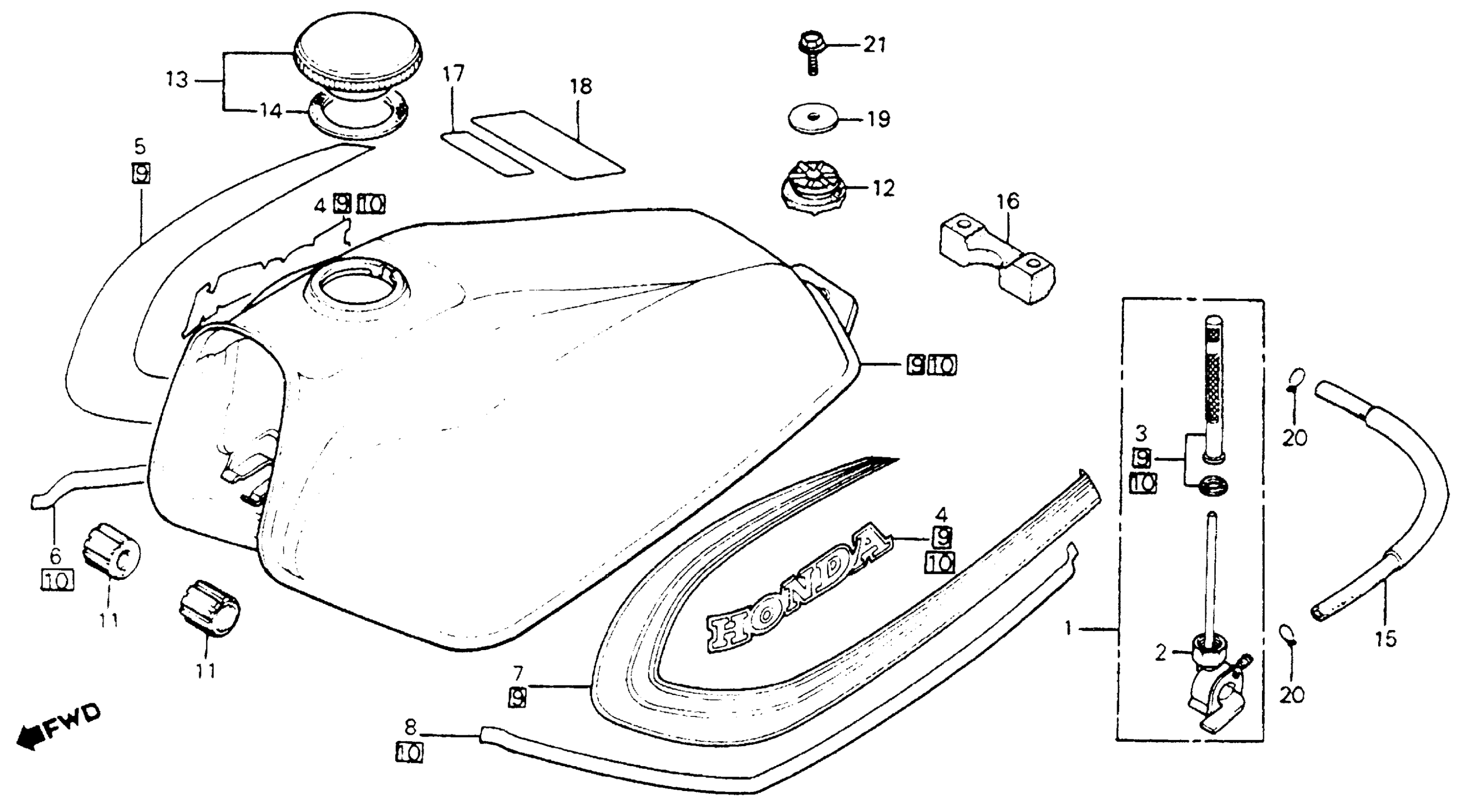

Honda XL80SA (80) MOTORCYCLE, JPN, VIN# HD04-5000014 TO HD04-5013496 FUEL TANK 80-81 Diagram

#

Description
Price

1

PETCOCK, FUEL | Use up to Frame SN 5009601

16950-GF6-015

$67.92

1

PETCOCK, FUEL PETCOCK ASSY.

16950-GF6-015

$67.92

1

PETCOCK, FUEL | Use up to Frame SN 5009601 This part replaces 16950-KE6-830.

16950-GF6-015

$67.92

1

PETCOCK, FUEL This part replaces 16950-KE6-830.

16950-GF6-015

$67.92

1

PETCOCK, FUEL | Use up to Frame SN 5009601 This part replaces 16950-164-015.

16950-GF6-015

$67.92

1

PETCOCK, FUEL | Use up to Frame SN 5009601 This part replaces 16950-164-025.

16950-GF6-015

$67.92

1

PETCOCK, FUEL | Use up to Frame SN 5009601 This part replaces 16950-164-035.

16950-GF6-015

$67.92

1

PETCOCK, FUEL This part replaces 16950-164-035.

16950-GF6-015

$67.92

2

BODY SET, PETCOCK (HONDA KIKAKI) | Use up to Frame SN 5009601 This part replaces 16951-164-015.

16951-GF6-005

Unavailable

2

BODY SET, PETCOCK (HONDA KIKAKI) | Use up to Frame SN 5009601 This part replaces 16951-164-025.

16951-GF6-005

Unavailable

2

BODY SET, PETCOCK (HONDA KIKAKI) | Use up to Frame SN 5009601 This part replaces 16951-164-035.

16951-GF6-005

Unavailable

2

BODY SET, PETCOCK (HONDA KIKAKI)

16951-GF6-005

Unavailable

3

SCREEN SET, FUEL STRAINER This part replaces 16953-155-015.

16953-155-305

Unavailable

3

SCREEN SET, FUEL STRAINER

16953-155-305

Unavailable

4

EMBLEM, FUEL TANK (NOT AVAILABLE)

17507-195-670

Unavailable

5

STRIPE, R. FUEL TANK (A.M.) (NOT AVAILABLE)

17508-195-670

Unavailable

7

STRIPE, L. FUEL TANK (A.M.) (NOT AVAILABLE)

17509-195-670

Unavailable

9

TANK SET, FUEL *R33* (HELIOS RED) (NOT AVAILABLE)

17540-195-670ZA

Unavailable

11

RUBBER, FR. FUEL TANK

17611-HA5-000

$5.21

11

RUBBER, FR. FUEL TANK This part replaces 17611-176-000.

17611-HA5-000

$5.21

12

RUBBER, RR. FUEL TANK

17613-176-000

$7.64

13

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

13

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$17.03

13

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

13

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

14

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

14

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

15

TUBE, FUEL (NOT AVAILABLE)

17681-195-670

Unavailable

16

RUBBER, SEAT CUSHION (NOT AVAILABLE)

77205-176-000

Unavailable

17

LABEL, OPERATOR WARNING *NH1* (BLACK)

87510-147-670ZA

$2.92

18

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-375-680B.

87560-375-680ZE

Unavailable

18

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-375-680ZB.

87560-375-680ZE

Unavailable

18

MARK, DRIVE CAUTION (TYPEB)

87560-375-680ZE

Unavailable

19

WASHER, TANK SETTING

90136-428-870

$1.56

20

CLIP, TUBE (B8)

95002-02080

$1.80

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
