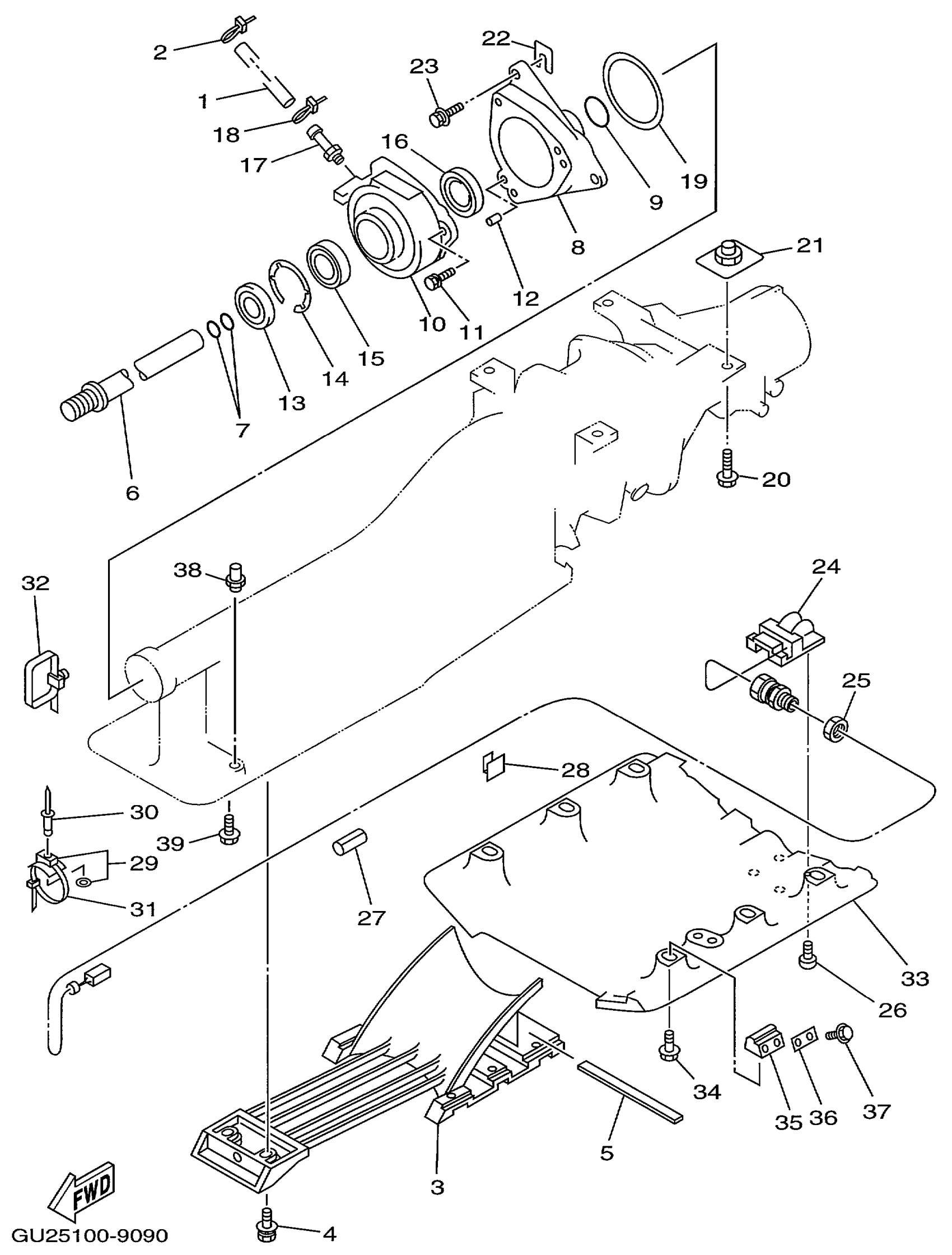

Yamaha XL760X (WAVE RUNNER XL760) GU25 1999 JET UNIT 2 Diagram

#

Description
Price

1

HOSE (L445)

90445-09M21-00

$20.98

2

CLAMP

90465-10098-00

$1.68

3

SCREEN, INTAKE

65R-R1333-00-00

Unavailable

4

BOLT, WITH WASHER

90119-069UC-00

$3.37

5

. FELT, PACKING

63M-51367-00-00

$4.55

6

SHAFT, COUPLOR

63N-51323-10-00

$533.32

7

O-RING(6R7)

93210-17MA4-00

$4.65

8

HOUSING, BEARING

65A-G5331-00-00

Unavailable

9

O-RING

93210-35M72-00

$11.39

10

HOUSING, BEARING

65U-45332-02-94

$256.05

11

BOLT, WITH WASHER

90119-08841-00

$1.01

12

PIN, DOWEL (614)

93606-12019-00

$3.05

13

OIL SEAL(62T)

93101-25M55-00

$24.36

14

CIRCLIP

93430-47M04-00

$5.18

15

BEARING(62G)

93306-205U6-00

$55.29

16

OIL SEAL

93101-24001-00

Unavailable

17

NIPPLE, HOSE

61L-45378-00-00

$11.35

18

CLAMP

90465-10098-00

$1.68

19

SEAL

6K8-45127-00-00

$15.49

20

BOLT, WITH WASHER

90119-109U8-00

Unavailable

21

NUT

90179-10925-00

$5.00

22

SHIM (0.5)

GD0-U7249-00-05

$1.94

22

SHIM (0.5)

GD0-U7249-00-05

$1.94

23

BOLT, WITH WASHER

90119-08907-00

$5.45

24

SENSOR SPEED

GJ1-U8K31-03-00

$131.73

25

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

26

SCREW, PAN HEAD(3YL)

98580-05014-00

$6.99

27

GR0MMET

GJ1-6822E-00-00

Unavailable

28

CLAMP

90600-90361-00

$10.99

29

CLAMP COMP (EU0)

90600-91736-00

Unavailable

30

RIVET, BLIND

90267-48802-00

$1.98

31

BAND (EU0)

90601-20009-00

$6.36

32

CLAMP

90600-944U8-00

Unavailable

33

PLATE 2

GJ3-U273B-00-00

Unavailable

34

BOLT, WITH WASHER

90119-08829-00

$3.88

35

PACKING

GJ1-62733-00-00

$44.99

36

PACKING 1

GJ1-62663-00-00

Unavailable

37

BOLT, WITH WASHER

90119-08907-00

$5.45

38

NUT(FJ0)

90179-06947-00

Unavailable

39

BOLT, WITH WASHER

90119-06896-00

$5.03
