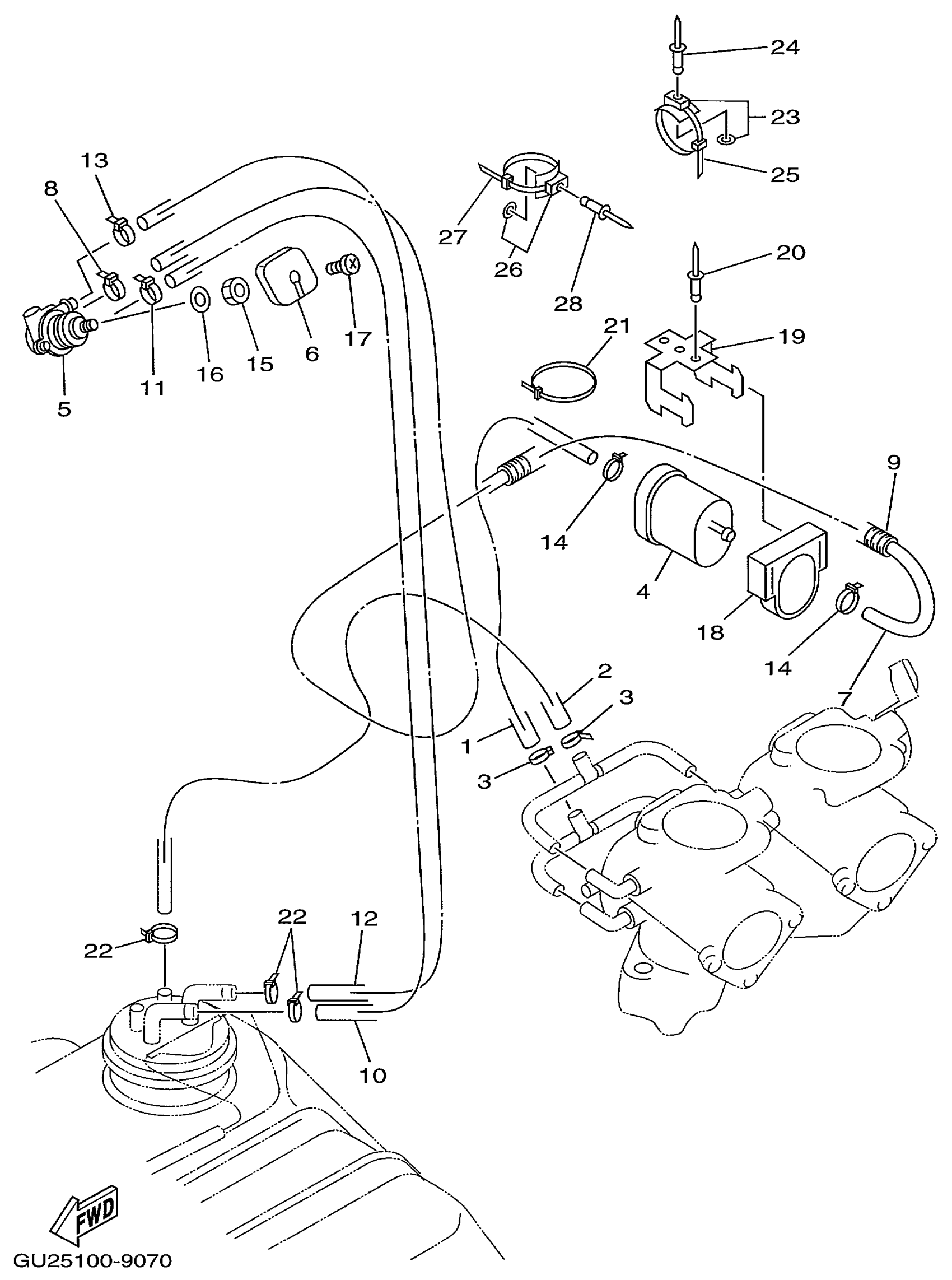

Yamaha XL760X (WAVE RUNNER XL760) GU25 1999 FUEL Diagram

#

Description
Price

1

HOSE (L1040)

90445-10MA9-00

$56.27

2

HOSE (L1700)

90445-10M87-00

Unavailable

3

CLAMP

90465-10098-00

$1.68

4

FILTER ASSY

6K8-24560-21-00

$28.64

5

FUEL COCK ASSY 1

65U-24500-02-00

Unavailable

6

LEVER, COCK

6R7-24524-00-00

$7.03

7

HOSE (L1700)

90445-10M87-00

Unavailable

8

CLAMP

90465-10098-00

$1.68

9

HOSE(64T)

90446-14M62-00

$5.98

10

HOSE (L1040)

90445-10MA9-00

$56.27

11

CLAMP

90465-10098-00

$1.68

12

HOSE (L1040)

90445-10MA9-00

$56.27

13

CLAMP

90465-10098-00

$1.68

14

CLAMP

90465-10098-00

$1.68

15

NUT, HEXAGON (1E6)

90170-22187-00

$7.77

16

WASHER, PLATE

90202-229U1-00

$14.35

17

SCREW, BIND

98980-04008-00

$3.05

18

HOLDER

EU0-67817-00-00

$13.33

19

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

20

RIVET (EU0)

90267-48938-00

$5.00

21

BAND (EU0)

90601-20009-00

$6.36

22

CLAMP

90465-10098-00

$1.68

23

CLAMP COMP (EU0)

90600-91736-00

Unavailable

24

RIVET, BLIND

90267-48802-00

$1.98

25

BAND (EU0)

90601-20009-00

$6.36

26

CLAMP COMP (EU0)

90600-91736-00

Unavailable

27

BAND (EU0)

90601-20009-00

$6.36

28

RIVET, BLIND

90267-48802-00

$1.98
