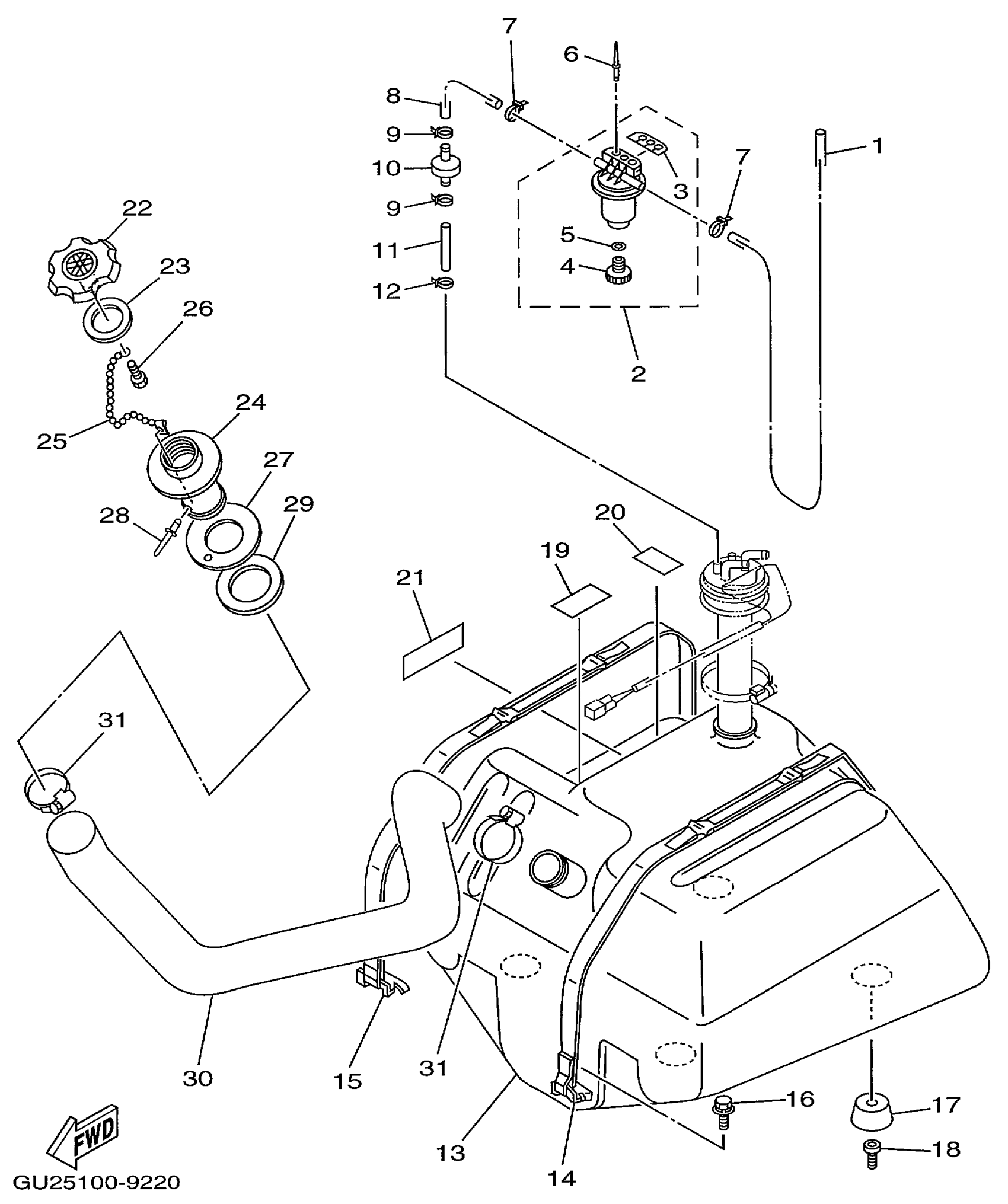

Yamaha XL760X (WAVE RUNNER XL760) GU25 1999 FUEL TANK Diagram

#

Description
Price

1

HOSE AIR VENT

GP7-U785J-00-00

Unavailable

2

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

3

. PLATE, FILTER

EW2-62142-00-00

$44.99

4

. PLUG, DRAIN

70R-24543-00-00

$9.08

5

. O-RING

70R-24489-00-00

$5.00

6

RIVET, BLIND

90267-489U2-00

$1.43

7

CLAMP

90465-10098-00

$1.68

8

HOSE, AIR VENT 3

GU2-U785H-00-00

Unavailable

9

CLAMP

90465-10098-00

$1.68

10

CHECK VALVE

EU0-67767-31-00

$20.93

11

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.32

12

CLAMP

90465-10098-00

$1.68

13

TANK, FUEL

GU2-U7711-00-00

Unavailable

14

BELT, TANK 1

GJ1-67743-01-00

$80.29

15

BELT, TANK 1

GH3-67743-01-00

$112.11

16

BOLT, WITH WASHER

90119-08800-00

$4.09

17

DAMPER, FUEL TANK

GH1-U782B-00-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-089U1-00

Unavailable

19

MAT 1

GJ1-U759B-00-00

Unavailable

20

MAT 2

GJ1-U759C-00-00

$30.29

21

MAT 3

GH1-U759D-00-00

Unavailable

22

CAP, FUEL FILLER

GP7-U7831-11-00

$34.30

23

PACKING

GP7-U7832-01-00

$5.35

24

SOCKET

GP7-U7833-11-00

$10.75

25

CHAIN BALL

GP7-U7835-00-00

$4.51

26

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

27

PACKING FUEL FILLER

GP7-U7834-10-00

$5.53

28

RIVET, BLIND

90267-329UR-00

$1.15

29

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72

30

HOSE

GP3-U7844-00-00

Unavailable

31

BAND, HOSE 55

90601-155U4-00

$5.87
