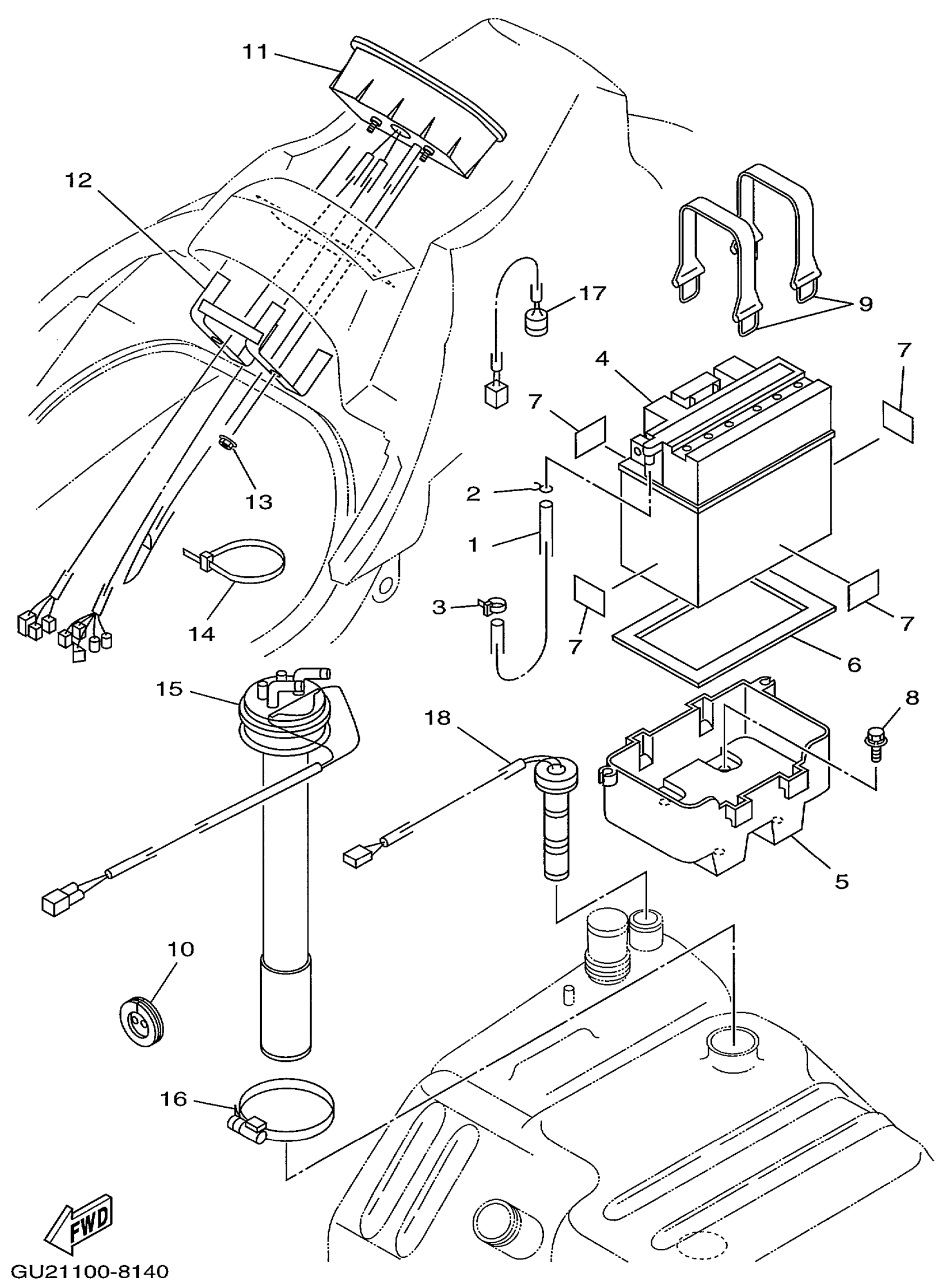

Yamaha XL760X (WAVE RUNNER XL760) GU25 1999 ELECTRICAL 2 Diagram

Description

Price

HOSE, AIR VENT 3

EU0-U7856-50-00

Unavailable

CLIP

90467-089U1-00

$1.44

CLAMP

90600-91060-00

$8.32

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$101.75

CASE, BATTERY

GP7-U8211-00-00

Unavailable

PAD, BATTERY

F1S-U8221-00-00

$2.75

PAD, BATTERY

EU0-U8221-31-00

$1.65

BOLT, WITH WASHER

90119-069US-00

$2.52

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

GROMMET

FJ0-68222-01-00

Unavailable

METER ASSY (MPH)

GP7-6820A-26-00

Unavailable

BRACKET, METER

GP7-68238-10-00

Unavailable

NUT, FLANGE

95720-05300-00

$1.28

BAND (EU0)

90601-20009-00

$6.36

SENDER, FUEL

F0V-U824B-04-00

$584.60

BAND, HOSE 62

90601-162U5-00

$6.17

BUZZER

GP7-U8341-00-00

Unavailable

SENDER, OIL

F0D-U824C-21-00

Unavailable
