Description

Price

1

BOLT, WITH WASHER

90119-08800-00

$4.09

2

BAND (EU0)

90601-20009-00

$6.36

3

HOUSING

65R-8552A-00-5B

$163.62

4

COVER, CASE

6M6-8552E-01-00

$78.77

5

GASKET, TERMINAL

6M6-81921-00-00

$19.63

6

SCREW, TAPPING(65J)

97780-60625-00

$2.64

7

BRACKET

66D-85542-00-00

$69.68

8

BOLT (62G)

97095-08025-00

$6.12

9

.. WASHER, PLATE

92990-08600-00

$2.17

10

MARK 3

6R7-83623-40-00

$7.27

11

GASKET

6M6-81844-00-00

$10.99

12

CAP

6M6-8132W-00-00

$14.38

13

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

14

FUSE (10A)

1E6-82151-00-00

$5.80

15

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

16

C.D.I. UNIT ASSY

64X-85540-01-00

$406.05

17

BAND

64X-85546-00-00

Unavailable

18

CLAMP

90464-06M29-00

$6.36

19

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

20

HOLDER, RELAY

6M6-81952-01-00

Unavailable

21

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

$112.11

22

CLAMP

90465-08028-00

$4.31

23

SCREW, PAN HEAD

98580-06016-00

$2.88

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

IGNITION COIL ASSY

64X-85570-01-00

$278.77

26

. CAP, PLUG

62E-82371-11-00

$42.41

27

. CAP, PLUG

62E-82371-11-00

$42.41

28

GROMMET

90480-06M43-00

$6.82

29

CLAMP

90465-10098-00

$1.68

30

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

COLLAR(6R8)

90387-06M30-00

Unavailable

33

SCREW, PAN HEAD

98580-06016-00

$2.88

34

WASHER, PLAIN (646)

92990-06600-00

Unavailable

35

CLAMP, CORD

62T-82361-00-00

$10.99

36

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

37

EXTENSION, WIRE LEAD

63N-82553-00-00

$251.50

38

WIRE, LEAD

63N-82117-00-00

$118.17

39

WIRE, LEAD

63N-82117-11-00

$75.74

40

THERMO SWITCH ASSEMBLY

64X-82560-00-00

Unavailable

41

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

42

WASHER, SPRING

92995-06100-00

$2.95

43

WIRE, LEAD

6M6-82117-21-00

Unavailable

44

MARK 3

6R7-83623-50-00

Unavailable

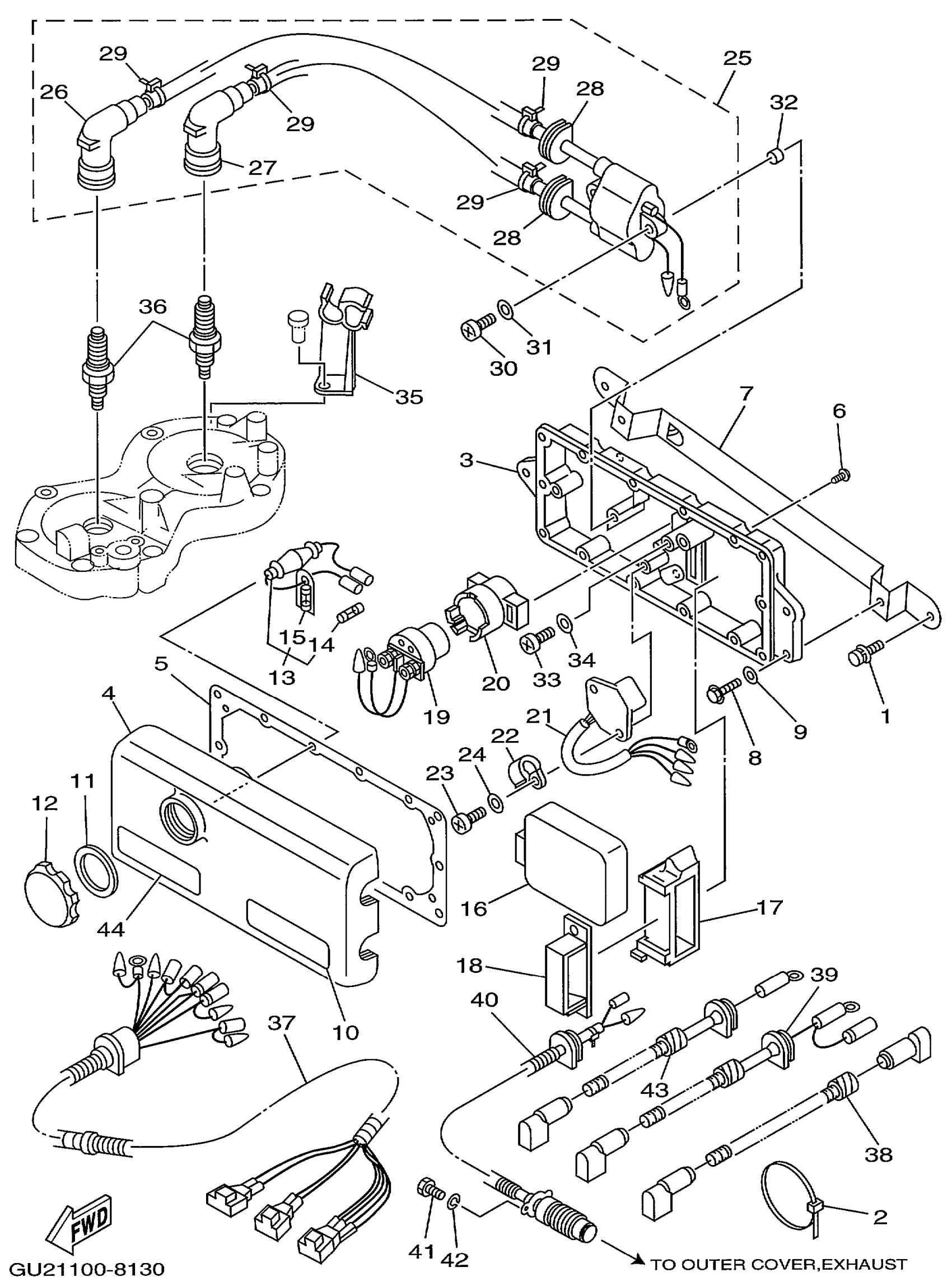

Yamaha XL760X (WAVE RUNNER XL760) GU25 1999 ELECTRICAL 1 Diagram

BOLT, WITH WASHER

BAND (EU0)

HOUSING

COVER, CASE

GASKET, TERMINAL

SCREW, TAPPING(65J)

BRACKET

BOLT (62G)

.. WASHER, PLATE

MARK 3

GASKET

CAP

FUSE HOLDER ASSY

FUSE (10A)

FUSE SPEAR (10A)

C.D.I. UNIT ASSY

BAND

CLAMP

STARTER RELAY ASSY

HOLDER, RELAY

RECTIFIER & REGULATOR ASSY

CLAMP

SCREW, PAN HEAD

WASHER, PLAIN (646)

IGNITION COIL ASSY

. CAP, PLUG

. CAP, PLUG

GROMMET

CLAMP

SCREW, PAN HEAD(6E0)

WASHER, PLAIN (646)

COLLAR(6R8)

SCREW, PAN HEAD

WASHER, PLAIN (646)

CLAMP, CORD

BR8HS NGK SCREW TOP PLUG 4PK

EXTENSION, WIRE LEAD

WIRE, LEAD

WIRE, LEAD

THERMO SWITCH ASSEMBLY

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WIRE, LEAD

MARK 3
