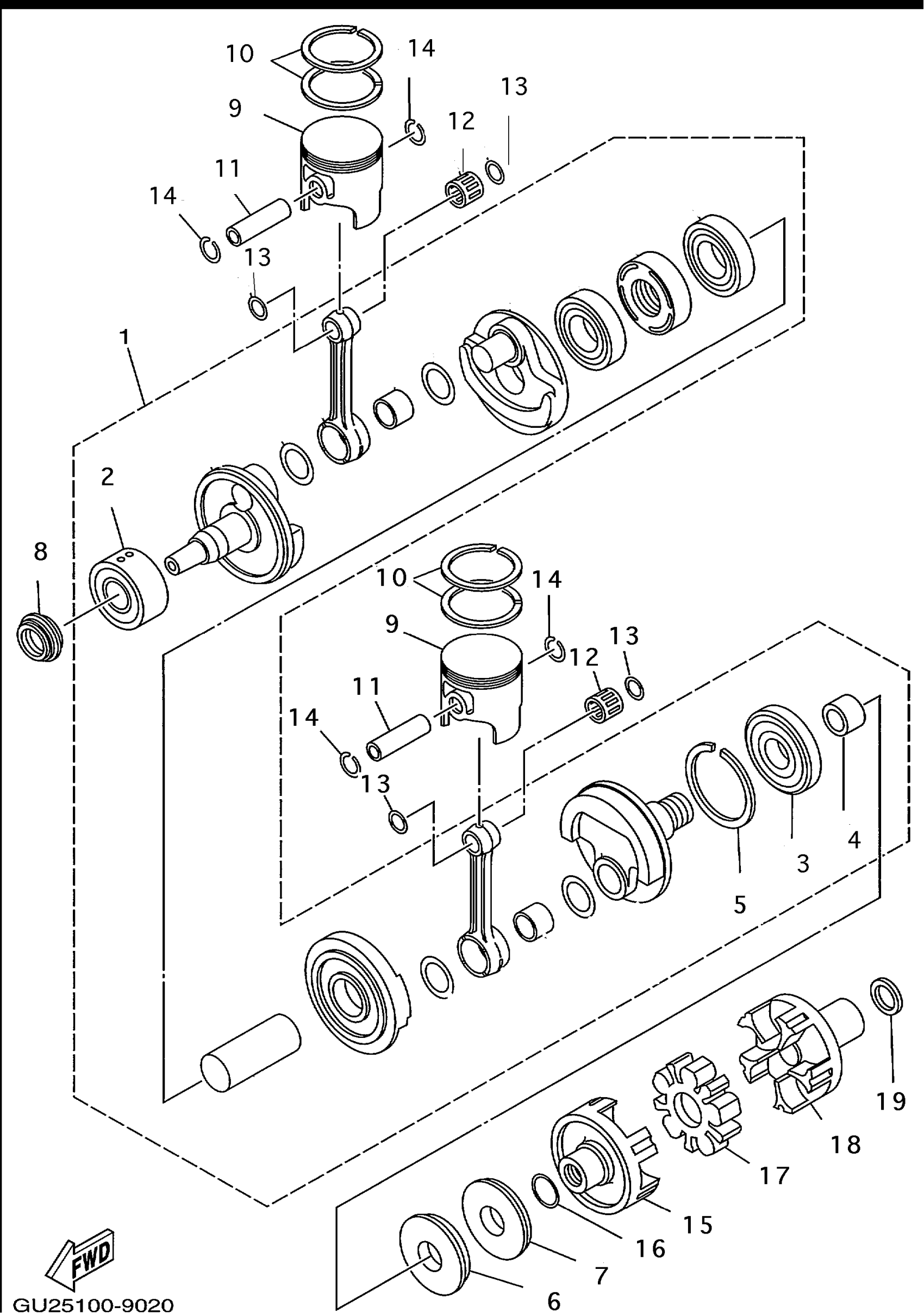

Yamaha XL760X (WAVE RUNNER XL760) GU25 1999 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

65V-Y117P-01-00

$1,122.71

2

BEARING(8AB)

93305-30601-00

$188.82

3

. COLLAR, DRIVE SHAFT

62T-45526-00-00

$22.59

4

BEARING(6M6)

93306-307U3-00

$72.67

5

CIRCLIP (834)

93440-80023-00

$12.59

6

. OIL SEAL

93102-36M33-00

$15.55

7

. OIL SEAL

93101-36M46-00

$17.41

8

. OIL SEAL

93103-32M01-00

$14.81

9

PISTON (STD)

64X-11631-00-91

$154.02

9

PISTON (0.25MM O/S)

64X-11635-00-00

Unavailable

9

PISTON (0.50MM O/S)

64X-11636-00-00

Unavailable

10

PISTON RING SET (STD)

64X-11603-00-00

$83.32

10

PISTON RING SET (0.25MM O/S)

64X-11604-00-00

$75.74

10

PISTON RING SET (0.50MM O/S)

64X-11605-00-00

Unavailable

11

PIN, PISTON

62T-11633-00-00

$18.15

12

BEARING, CYLINDRICAL(62T)

93310-320U2-00

$34.68

13

WASHER, PLATE(61X)

90201-20M04-00

Unavailable

14

CIRCLIP (8H0)

93450-21053-00

Unavailable

15

FLANGE, COUPLING

63M-45813-01-94

Unavailable

16

SEAL

62T-45127-01-00

Unavailable

17

RUBBER SHAFT COUPLING

63M-4581J-00-00

$86.35

18

FLANGE, COUPLING

64X-45813-00-94

Unavailable

19

WASHER, PLATE

90201-24800-00

$1.37
