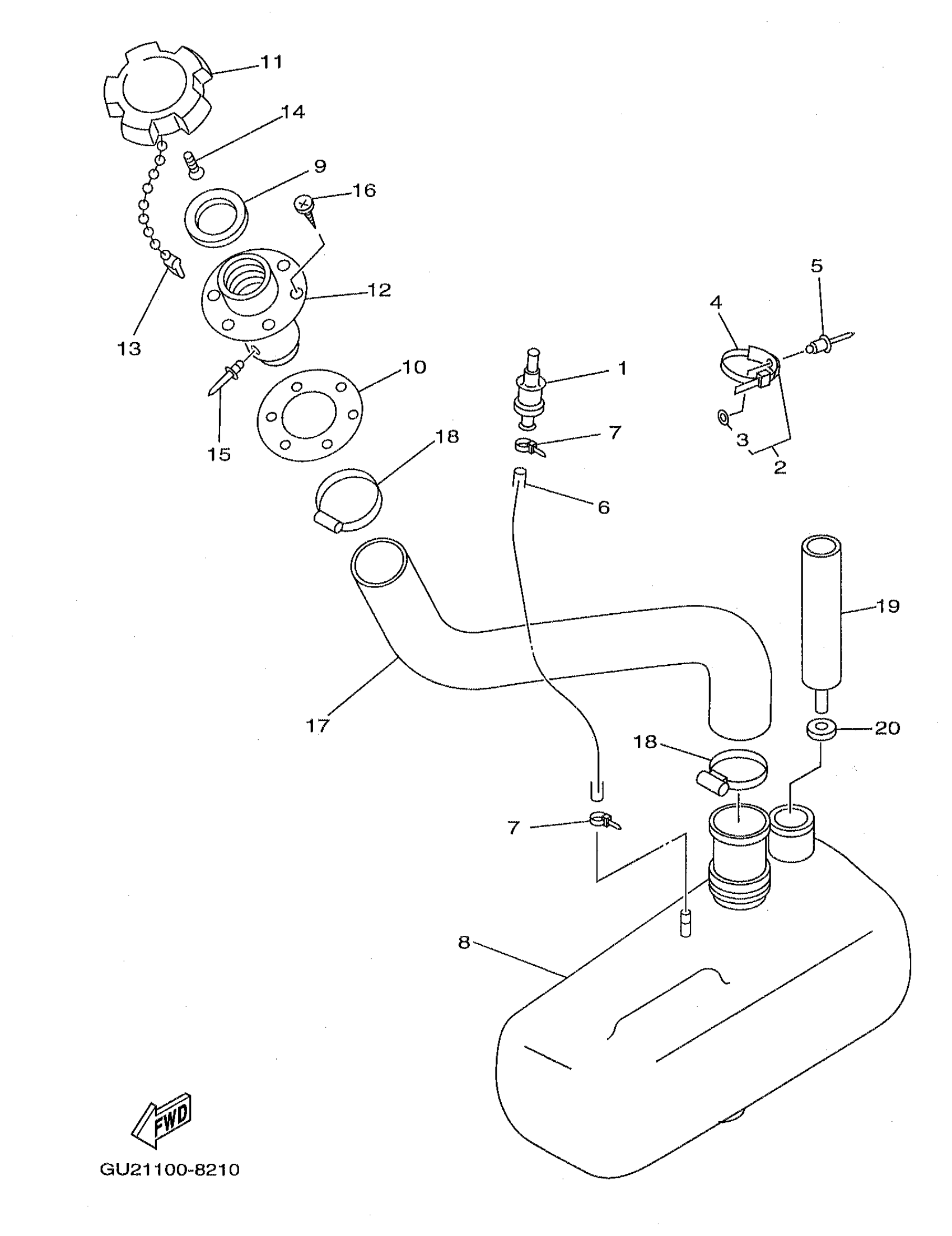

Yamaha XL760W (WAVE RUNNER XL760) 1998 OIL TANK Diagram

#

Description
Price

1

. ROLL OVER VALVE

FJ0-67766-00-00

$53.72

2

CLAMP COMP (EU0)

90600-91736-00

$6.22

3

. WASHER, PLAIN

90201-05925-00

Unavailable

4

BAND (EU0)

90601-20009-00

$6.27

5

RIVET, BLIND

90267-48802-00

$1.98

6

HOSE, AIR VENT 3

GJ3-U7856-20-00

Unavailable

7

CLAMP

90465-10098-00

$2.24

8

TANK, OIL

GJ3-U775B-02-00

Unavailable

9

PACKING, OIL CAP

GJ3-U778C-00-00

$1.80

10

PACKING, OIL FILLER

GJ3-U778E-00-00

$3.51

11

CAP, OIL FILLER

GJ3-U778B-00-00

Unavailable

12

SOCKET, OIL FILLER

GJ3-U778D-00-00

$4.63

13

CHAIN BALL

EU0-U7835-00-00

$8.19

14

SCREW,TAPPING (EU0)

97780-40110-00

$1.05

15

. RIVET, BLIND

90267-40935-00

$1.29

16

SCREW, FLAT HEAD TAPPING

FX1-67869-00-00

$1.34

17

HOSE, OIL FILLER

GU2-U776C-00-00

Unavailable

18

BAND, HOSE 52

90601-152U3-00

$5.96

19

STRAINER, OIL

6J8-13411-00-00

$25.83

20

GASKET, STRAINER COVER

6J8-13414-00-00

$2.80
