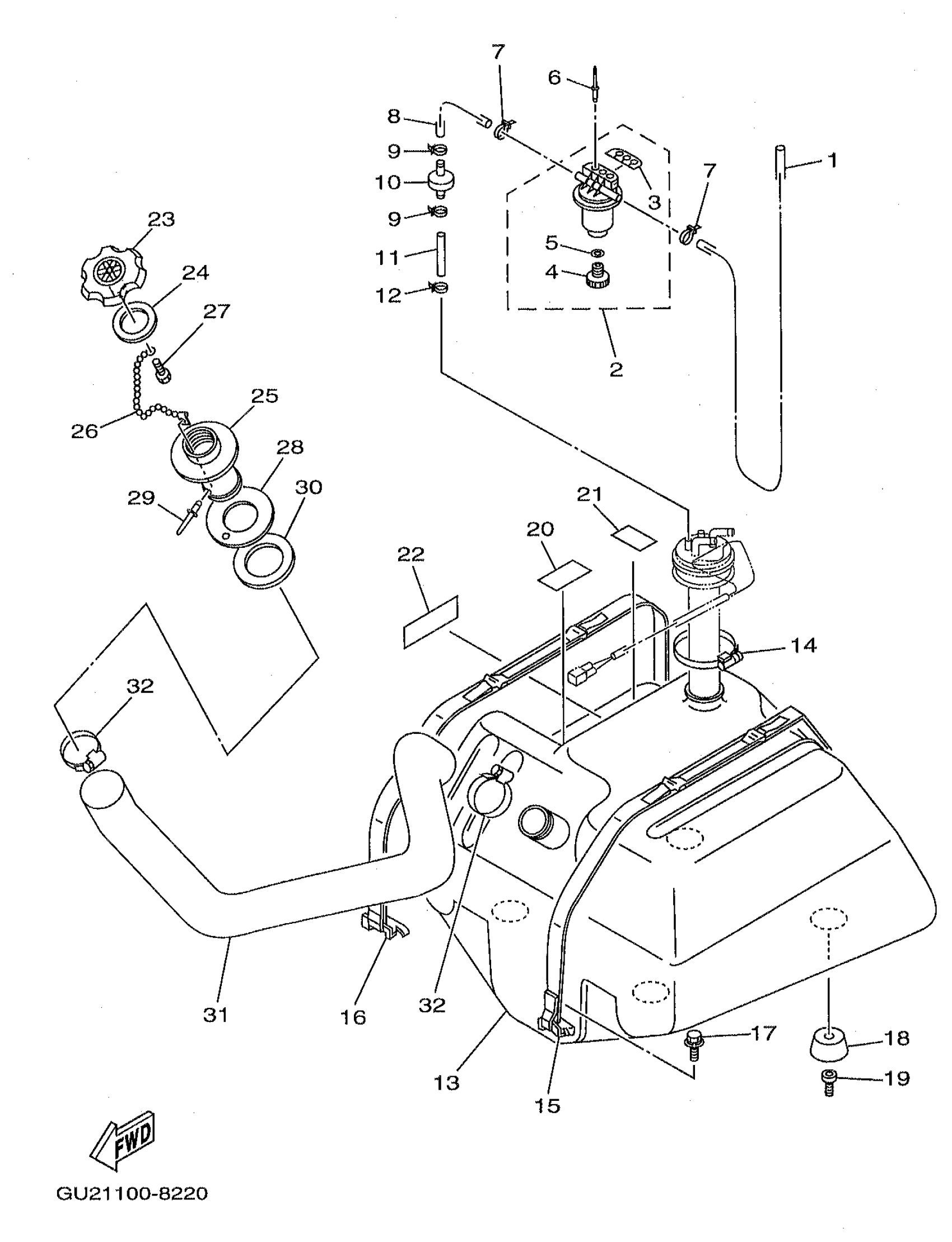

Yamaha XL760W (WAVE RUNNER XL760) 1998 FUEL TANK Diagram

#

Description
Price

1

HOSE, AIR VENT 3

GJ3-U7856-10-00

Unavailable

2

FILTER, VENT ASSY

F2F-6214A-00-00

$52.14

3

. PLATE, FILTER

EW2-62142-00-00

$44.76

4

. PLUG, DRAIN

70R-24543-00-00

$8.94

5

. O-RING

70R-24489-00-00

$4.93

6

RIVET, BLIND

90267-489U2-00

$1.51

7

CLAMP

90465-10098-00

$2.24

8

HOSE, AIR VENT 3

GU2-U785H-00-00

Unavailable

9

CLAMP

90465-10098-00

$2.24

10

CHECK VALVE

EU0-67767-31-00

$30.97

11

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.19

12

CLAMP

90465-10098-00

$2.24

13

TANK, FUEL

GU2-U7711-00-00

Unavailable

14

BAND, HOSE 62

90601-162U5-00

$6.46

15

BELT, TANK 1

GJ1-67743-01-00

$79.09

16

BELT, TANK 1

GH3-67743-01-00

$110.43

17

BOLT, WITH WASHER

90119-08800-00

$4.31

18

DAMPER, FUEL TANK

GH1-U782B-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-089U1-00

Unavailable

20

MAT 1

GJ1-U759B-00-00

Unavailable

21

MAT 2

GJ1-U759C-00-00

$29.84

22

MAT 3

GH1-U759D-00-00

Unavailable

23

CAP, FUEL FILLER

GP7-U7831-11-00

$35.66

24

PACKING

GP7-U7832-01-00

$5.62

25

SOCKET

GP7-U7833-11-00

$11.48

26

CHAIN BALL

GP7-U7835-00-00

$4.72

27

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.29

28

PACKING FUEL FILLER

GP7-U7834-10-00

$5.45

29

RIVET, BLIND

90267-329UR-00

$1.23

30

NUT, FUEL FILLER

GP7-U783F-00-00

$4.96

31

HOSE

GP3-U7844-00-00

Unavailable

32

BAND, HOSE 55

90601-155U4-00

$6.17
