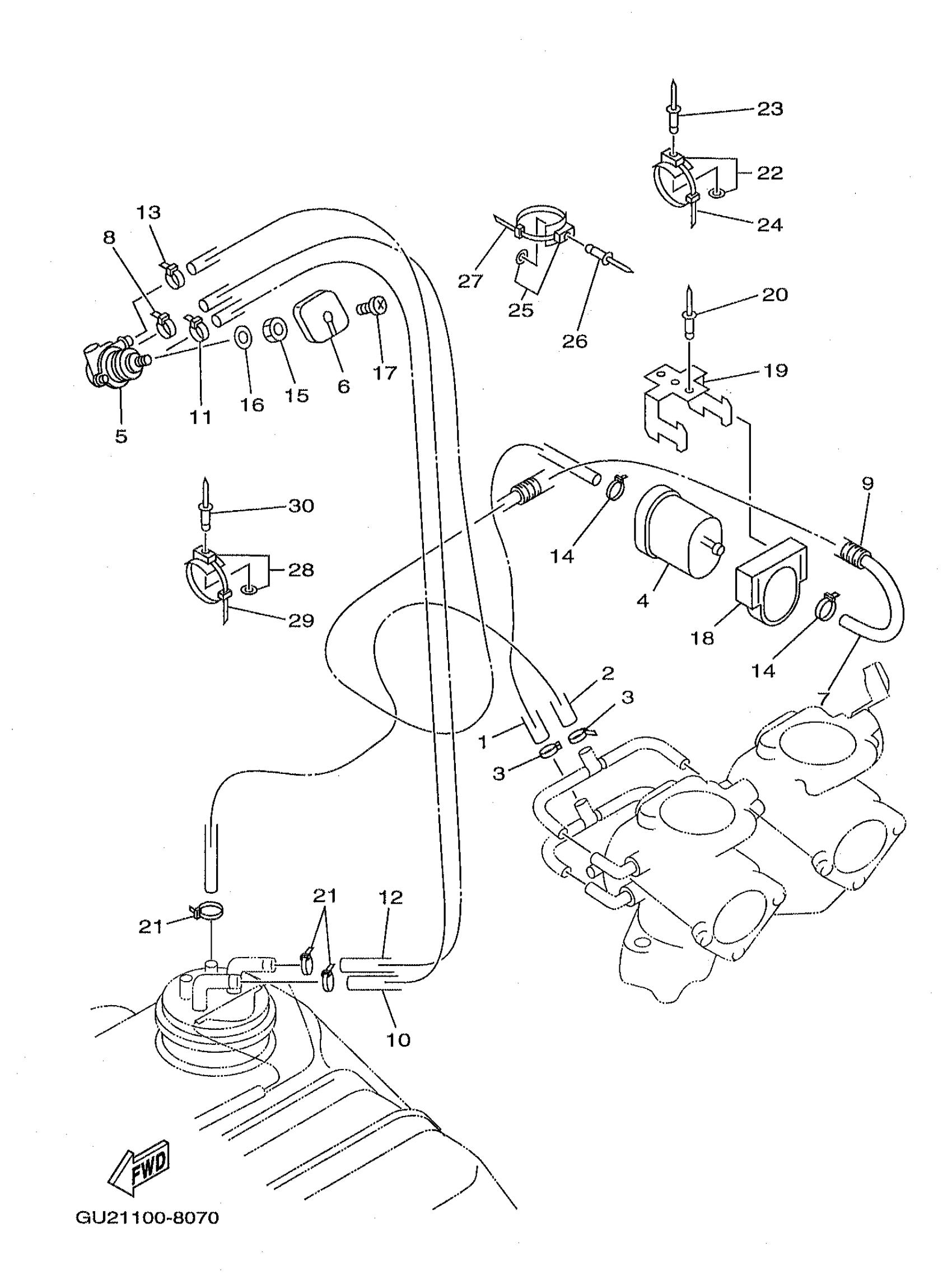

Yamaha XL760W (WAVE RUNNER XL760) 1998 FUEL Diagram
#
1
HOSE (L1040)
90445-10MA9-00
$68.99
2
HOSE (L1700)
90445-10M87-00
Unavailable
3
CLAMP
90465-10098-00
Unavailable
4
FILTER ASSY
6K8-24560-21-00
Unavailable
5
FUEL COCK ASSY 1
65U-24500-02-00
Unavailable
6
LEVER, COCK
6R7-24524-00-00
Unavailable
7
HOSE (L1700)
90445-10M87-00
Unavailable
8
CLAMP
90465-10098-00
Unavailable
9
HOSE(64T)
90446-14M62-00
$7.49
10
HOSE (L1040)
90445-10MA9-00
$68.99
11
CLAMP
90465-10098-00
Unavailable
12
HOSE (L1040)
90445-10MA9-00
$68.99
13
CLAMP
90465-10098-00
Unavailable
14
CLAMP
90465-10098-00
Unavailable
15
NUT, HEXAGON (1E6)
90170-22187-00
$9.49
16
WASHER, PLATE
90202-229U1-00
Unavailable
17
SCREW, BIND
98980-04008-00
Unavailable
18
HOLDER
EU0-67817-00-00
Unavailable
19
BRACKET, FUEL FILTER
FN8-67816-00-00
Unavailable
20
RIVET (EU0)
90267-48938-00
Unavailable
21
CLAMP
90465-10098-00
Unavailable
22
CLAMP COMP (EU0)
90600-91736-00
Unavailable
23
RIVET, BLIND
90267-48802-00
Unavailable
24
BAND (EU0)
90601-20009-00
Unavailable
25
CLAMP COMP (EU0)
90600-91736-00
Unavailable
26
RIVET, BLIND
90267-48802-00
Unavailable
27
BAND (EU0)
90601-20009-00
Unavailable
28
CLAMP COMP (EU0)
90600-91736-00
Unavailable
29
BAND (EU0)
90601-20009-00
Unavailable
30
RIVET, BLIND
90267-48802-00
Unavailable
