- XL760W (WAVE RUNNER XL760) 1998
ENGINE HATCH 2

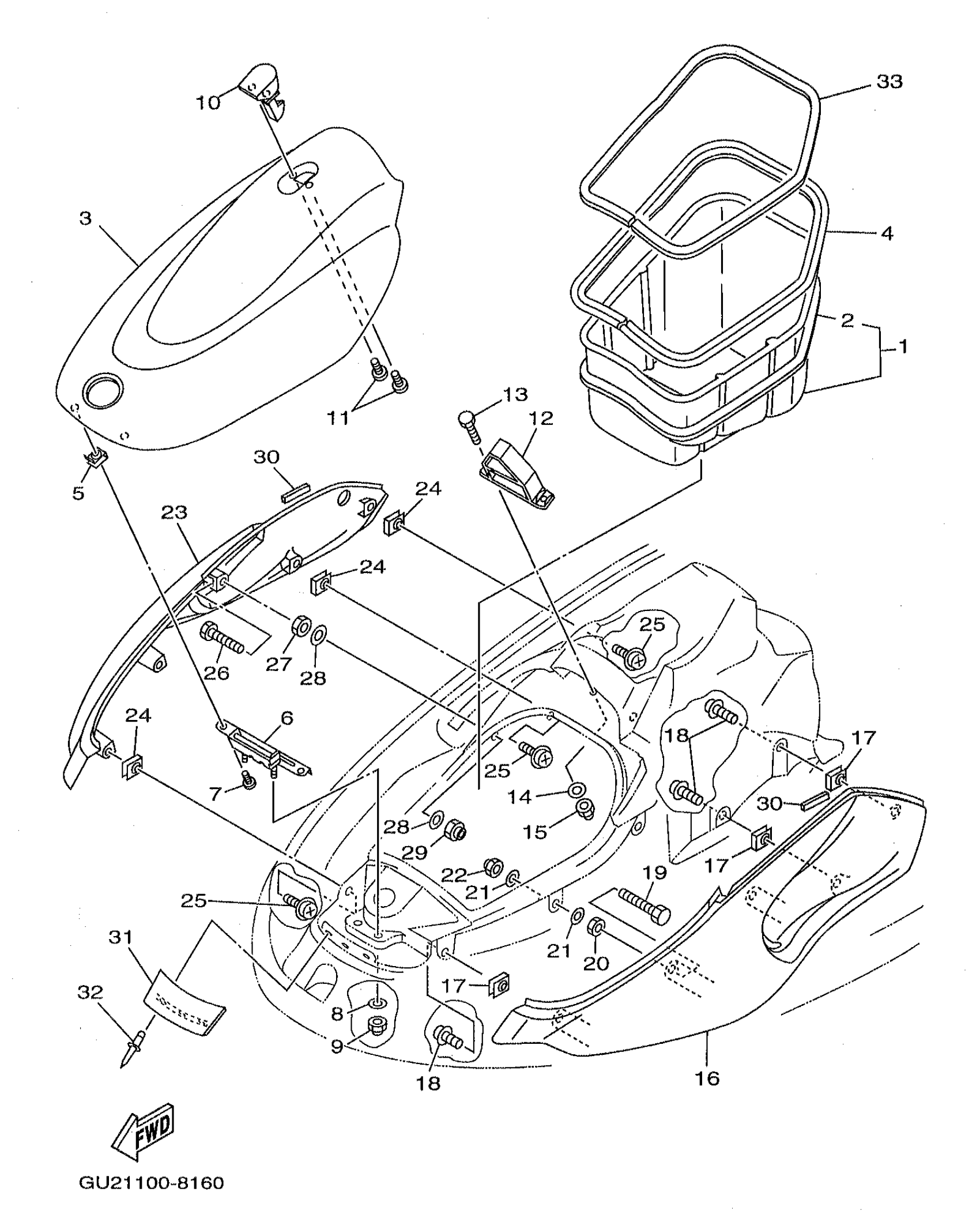

Yamaha XL760W (WAVE RUNNER XL760) 1998 ENGINE HATCH 2 Diagram
#
1
BOW LOCKER ASSY
GU2-U475A-00-00
Unavailable
2
PACKING 4
GJ3-U266C-31-00
Unavailable
3
LID,ENGINE HATCH(CKTL. RED)
GU2-U517B-09-P0
Unavailable
4
PACKING 3
GU2-U266B-30-00
Unavailable
5
NUT, SPRING(GJ3)
90183-06902-00
$11.49
6
HINGE, LID
GU2-6517D-00-00
Unavailable
7
BOLT, WITH WASHER
90119-069UJ-00
Unavailable
8
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
9
NUT, SELF-LOCKING
95720-06300-00
Unavailable
10
LOCK, LID
F1K-6517C-00-00
Unavailable
11
SCREW, WITH WASHER
90159-059U2-00
Unavailable
12
HOOK,LID LOCK
GU2-6517F-01-00
Unavailable
13
BOLT(7U8)
97080-06020-00
Unavailable
14
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
15
NUT, SELF-LOCKING
95720-06300-00
Unavailable
16
COVER,SIDE 1(CKTL.RED)
GU2-U377B-09-P0
Unavailable
17
NUT, SPRING(GJ3)
90183-06902-00
$11.49
18
BOLT, WITH WASHER
90119-06830-00
Unavailable
19
BOLT
90101-06M27-00
Unavailable
20
NUT(650)
95380-06700-00
Unavailable
21
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
22
NUT, SELF-LOCKING
95720-06300-00
Unavailable
23
COVER,SIDE 2(CKTL.RED)
GU2-U377C-09-P0
Unavailable
24
NUT, SPRING(GJ3)
90183-06902-00
$11.49
25
BOLT, WITH WASHER
90119-06830-00
Unavailable
26
BOLT
90101-06M27-00
Unavailable
27
NUT(650)
95380-06700-00
Unavailable
28
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
29
NUT, SELF-LOCKING
95720-06300-00
Unavailable
30
TRIM
GU2-U5162-00-00
Unavailable
31
COVER, FRONT (CKTL.RED)
GU2-U513M-09-P0
Unavailable
32
RIVET, BLIND
90267-48802-00
Unavailable
33
PACKING
GJ3-U2664-02-00
Unavailable
