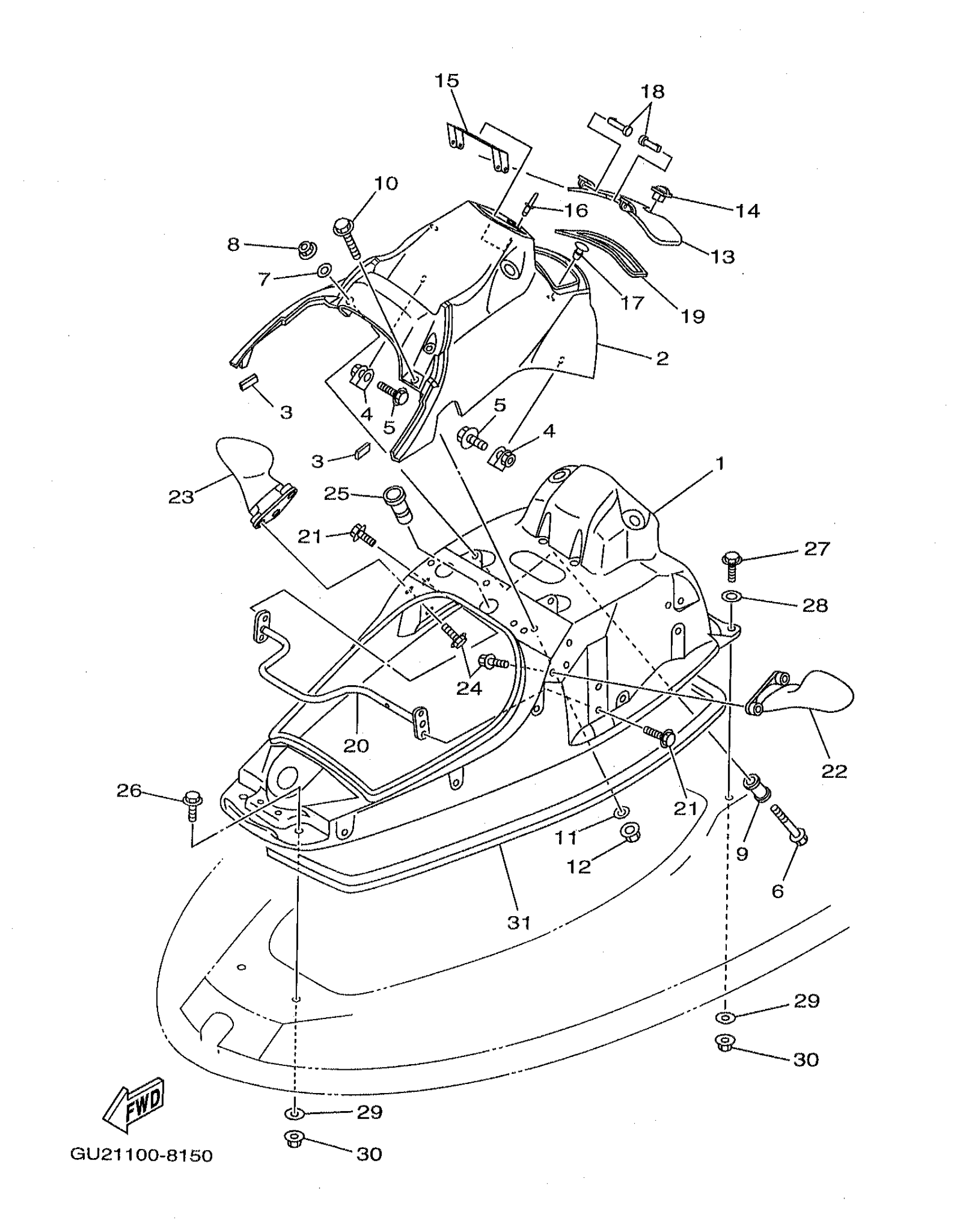

Yamaha XL760W (WAVE RUNNER XL760) 1998 ENGINE HATCH 1 Diagram

#

Description
Price

1

ENGINE HATCH COMP.

GU2-U516A-10-00

Unavailable

2

COVER, ENG. HATCH(CKTL. RED)

GU2-U516N-09-P0

Unavailable

3

PAD, HATCH 1

GU2-U517M-00-00

Unavailable

4

NUT, SPRING(GJ3)

90183-06902-00

$11.49

5

BOLT, WITH WASHER

90119-06830-00

Unavailable

6

BOLT, WITH WASHER

90119-06914-00

Unavailable

7

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

8

NUT, SELF-LOCKING

95720-06300-00

Unavailable

9

COLLAR

90387-06922-00

Unavailable

10

BOLT, WITH WASHER

90119-06900-00

Unavailable

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

12

NUT, SELF-LOCKING

95720-06300-00

Unavailable

13

LID HATCH (CKTL.RED)

GU2-U517H-09-P0

Unavailable

14

LOCK

GU2-62875-02-00

Unavailable

15

HINGE, HATCH

GU2-U517G-00-00

Unavailable

16

RIVET, BLIND

90267-40937-00

Unavailable

17

. PLUG

90605-502U2-00

Unavailable

18

PIN, HINGE

GU2-6517R-00-00

Unavailable

19

PACKING CASE

GU2-U519D-00-00

Unavailable

20

BEAM, ENGINE HATCH

GU2-6516L-00-00

Unavailable

21

BOLT, WITH WASHER

90119-06830-00

Unavailable

22

MIRROR LH (BLACK)

GU3-U596B-09-00

Unavailable

23

MIRROR RH (BLACK)

GU3-U596C-09-00

Unavailable

24

BOLT, WITH WASHER

90119-06830-00

Unavailable

25

GROMMET

GU2-6822E-01-00

Unavailable

26

BOLT, WITH WASHER

90119-089U9-00

Unavailable

27

BOLT, WITH WASHER

90119-08829-00

Unavailable

28

WASHER, PLATE

90201-099U1-00

Unavailable

29

WASHER (FJ0)

90201-08929-00

Unavailable

30

. NUT, SELF-LOCKING

95720-08300-00

Unavailable

31

PACKING 1

GJ3-U2663-01-00

Unavailable
