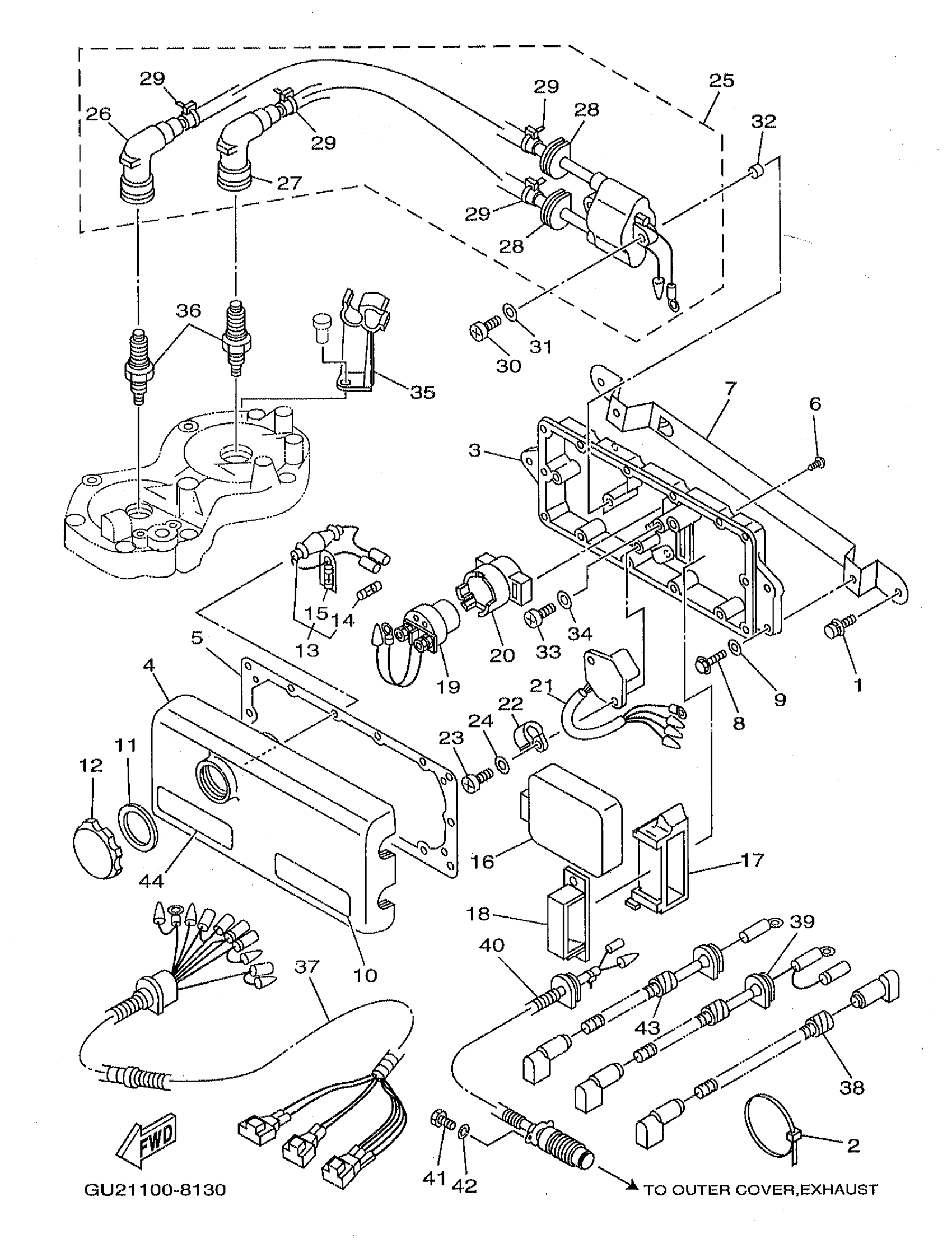

Yamaha XL760W (WAVE RUNNER XL760) 1998 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-08907-00

$5.12

2

BAND (EU0)

90601-20009-00

$6.18

3

HOUSING

65R-8552A-00-5B

$158.81

4

COVER, CASE

6M6-8552E-01-00

$76.46

5

GASKET, TERMINAL

6M6-81921-00-00

$20.13

6

SCREW, TAPPING(65J)

97780-60625-00

$2.64

7

BRACKET

66D-85542-00-00

$67.63

8

BOLT (62G)

97095-08025-00

$6.12

9

.. WASHER, PLATE

92990-08600-00

$2.26

10

MARK 3

6R7-83623-40-00

$7.06

11

GASKET

6M6-81844-00-00

$10.99

12

CAP

6M6-8132W-00-00

$11.01

13

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

14

FUSE (10A)

1E6-82151-00-00

$5.80

15

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

16

C.D.I. UNIT ASSY

64X-85540-01-00

$394.10

17

BAND

64X-85546-00-00

Unavailable

18

CLAMP

90464-06M29-00

$6.18

19

STARTER RELAY ASSY

6G1-81941-10-00

$68.39

20

HOLDER, RELAY

6M6-81952-01-00

Unavailable

21

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

$86.25

22

CLAMP

90465-08M75-00

Unavailable

23

SCREW, PAN HEAD

98580-06016-00

$2.78

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

IGNITION COIL ASSY

64X-85570-01-00

$241.10

26

. CAP, PLUG

62E-82371-11-00

$41.16

27

. CAP, PLUG

62E-82371-11-00

$41.16

28

GROMMET

90480-06M43-00

$5.69

29

CLAMP

90465-10098-00

$2.24

30

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.44

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

COLLAR(6R8)

90387-06M30-00

Unavailable

33

SCREW, PAN HEAD

98580-06016-00

$2.78

34

WASHER, PLAIN (646)

92990-06600-00

Unavailable

35

CLAMP, CORD

62T-82361-00-00

$10.99

36

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

37

EXTENSION, WIRE LEAD

63N-82553-00-00

$244.10

38

WIRE, LEAD

63N-82117-00-00

$114.69

39

WIRE, LEAD

63N-82117-11-00

$73.51

40

THERMO SWITCH ASSEMBLY

64X-82560-00-00

Unavailable

41

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

42

WASHER, SPRING

92995-06100-00

$2.87

43

WIRE, LEAD

6M6-82117-21-00

Unavailable

44

MARK 3

6R7-83623-50-00

Unavailable
