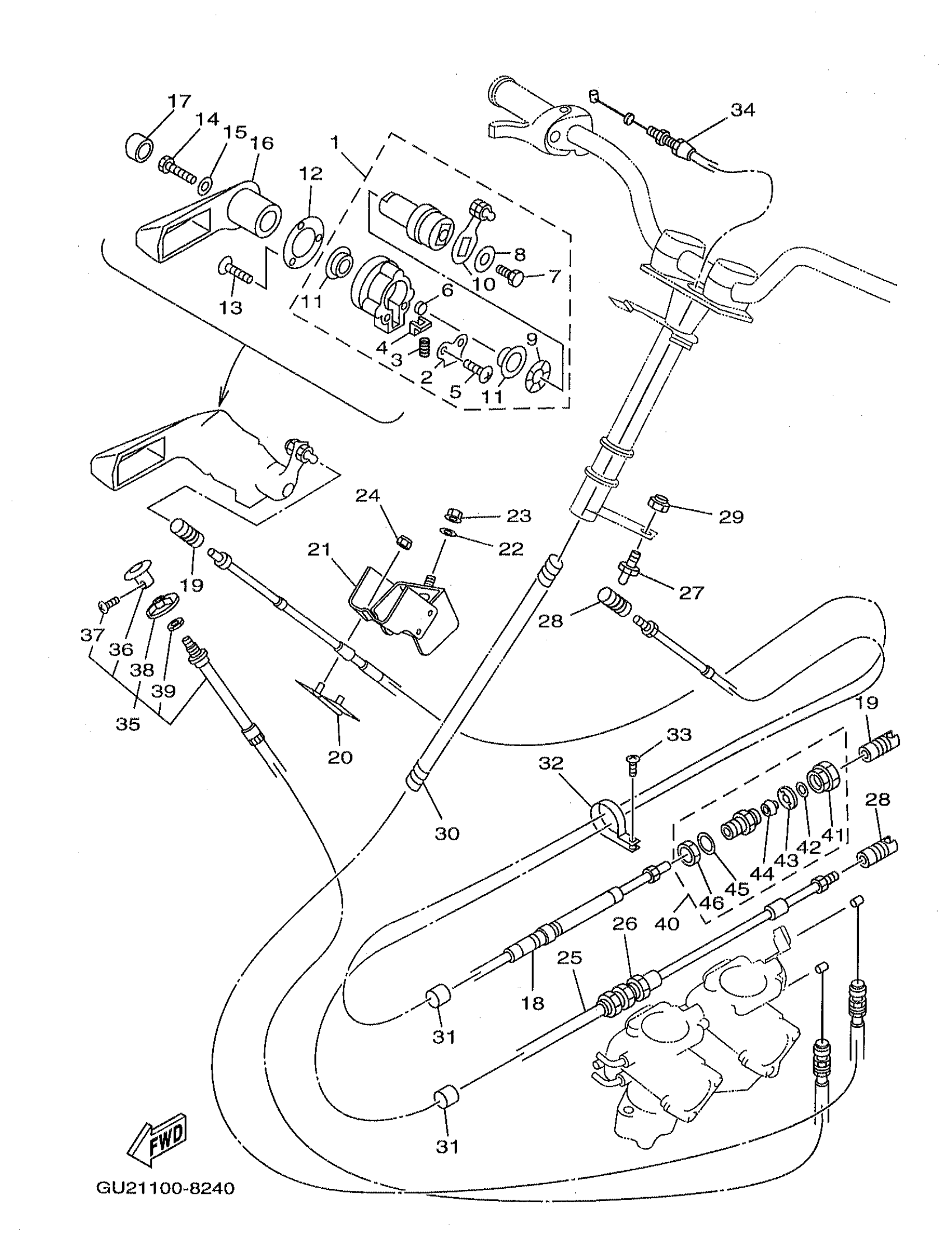

Yamaha XL760W (WAVE RUNNER XL760) 1998 CONTROL CABLE Diagram

#

Description

Price

1

LEVER, SUB-ASSY

GJ3-6134B-01-00

Unavailable

2

. PLATE

FJ0-61348-01-00

Unavailable

3

. SPRING

FJ0-61349-00-00

Unavailable

4

. DETENT ROLLER SET

FJ0-61351-00-00

Unavailable

5

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

6

. DETENT ROLLER

FJ0-61352-00-00

Unavailable

7

BOLT(GJ3)

97080-06014-00

Unavailable

8

. WASHER

FJ0-61353-00-00

Unavailable

9

. WAVE WASHER

FJ0-61354-00-00

Unavailable

10

ARM

GJ3-6134N-01-00

Unavailable

11

. BEARING

FJ0-61347-00-00

Unavailable

12

WASHER

FJ0-61344-00-00

Unavailable

13

YBS53-525 SCREW,FLAT HEAD

98780-05525-00

Unavailable

14

BOLT(J52)

97080-06035-00

Unavailable

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

16

LEVER, 1

GU2-6134C-00-00

Unavailable

17

CAP, REMOCON.LEVER

GU2-6135G-00-00

Unavailable

18

CABLE,REVERSE

GP3-U149C-01-00

Unavailable

19

SHAFT,JOINT BALL

EU0-61461-30-00

Unavailable

20

STOPPER, CABLE

GJ3-61468-01-00

Unavailable

21

BRACKET, CABLE STOPPER 2

GU2-6146D-00-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

23

NUT, FLANGE

95780-06300-00

Unavailable

24

NUT, SELF-LOCKING

95720-06300-00

Unavailable

25

CABLE, STEERING

GU2-U1481-10-00

Unavailable

26

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

27

SHAFT, JOINT BALL

EU0-U1461-10-00

Unavailable

28

SHAFT,JOINT BALL

GK5-6146F-00-00

Unavailable

29

NUT, FLANGE

95780-06300-00

Unavailable

30

SPI-RAP 25

90699-38U03-00

Unavailable

31

PACKING, HOSE 2

GJ1-U7578-01-00

Unavailable

32

CLIP, NYLON 18

90600-918U3-00

Unavailable

33

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

34

CABLE, THROTTLE

GP2-U7252-00-00

Unavailable

35

CABLE, CHOKE

GU2-U7242-02-00

Unavailable

36

KNOB, CHOKE

GP7-U724C-00-00

Unavailable

37

SCREW, KNOB

GP7-U724D-00-00

Unavailable

38

. NUT, COMPRESSION

GP7-U724E-00-00

Unavailable

39

. NUT

GA9-U724F-01-00

Unavailable

40

CONNECTOR, CABLE

EU0-67267-00-00

Unavailable

41

. CAP

EU0-62694-00-00

Unavailable

42

. WASHER 30

EU0-61446-00-00

Unavailable

43

. STOPPER

EU0-61486-00-00

Unavailable

44

. SEAL, PIPE 30

EU0-61435-00-00

Unavailable

45

. PACKING (C)

EU0-61438-00-00

Unavailable

46

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable
