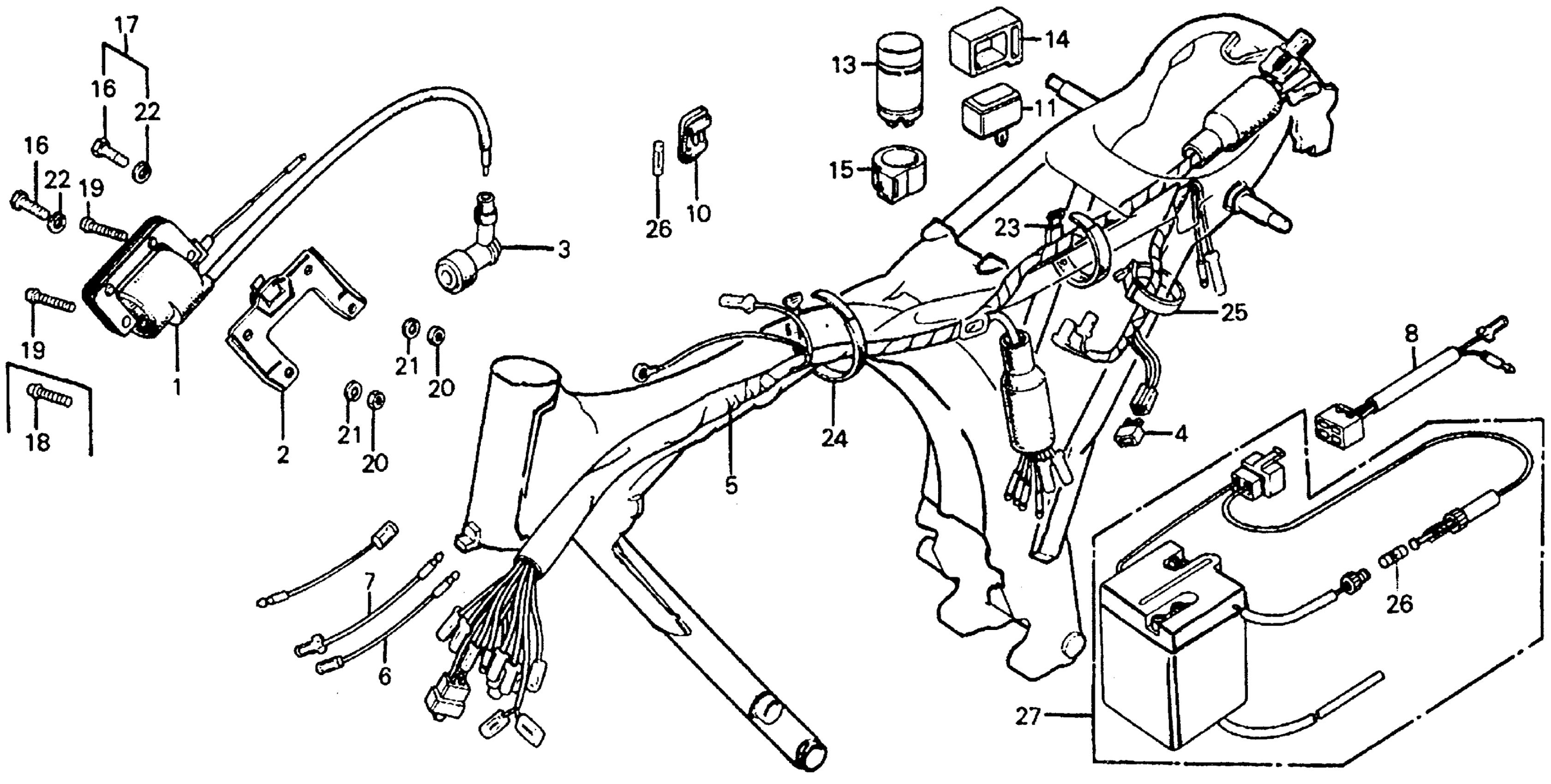

Honda XL75A (79) MOTORCYCLE, JPN, VIN# XL75-5000001 TO XL75-5011386 WIRE HARNESS + IGNITION COIL + BATTERY Diagram

#

Description
Price

1

COIL ASSY., IGNITION (NOT AVAILABLE)

30530-152-771

Unavailable

2

STAY, IGNITION COIL MOUNT

30531-152-771

Unavailable

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$17.87

4

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

4

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

5

WIRE HARNESS (NOT AVAILABLE)

32100-152-020

Unavailable

6

SUB-WIRE A (NOT AVAILABLE)

32105-152-670

Unavailable

7

SUB-WIRE, DIMMER SWITCH

32106-152-670

Unavailable

8

SUB-WIRE HARNESS, BATTERY (NOT AVAILABLE)

32200-152-670

Unavailable

10

CASE, FUSE (NOT AVAILABLE)

38205-115-000

Unavailable

11

RELAY ASSY., TURN SIGNAL | Use up to Frame SN 5004495

38300-GF0-405

$44.27

11

RELAY ASSY., TURN SIGNAL | Use up to Frame SN 5004495 This part replaces 38300-089-671.

38300-GF0-405

$44.27

11

RELAY ASSY., TURN SIGNAL | Use up to Frame SN 5004495 This part replaces 38300-243-670.

38300-GF0-405

$44.27

11

RELAY ASSY., TURN SIGNAL | Use up to Frame SN 5004495 This part replaces 38300-428-004.

38300-GF0-405

$44.27

11

RELAY ASSY., TURN SIGNAL | Use up to Frame SN 5004495 This part replaces 38301-428-671.

38300-GF0-405

$44.27

11

RELAY ASSY., TURN SIGNAL | Use up to Frame SN 5004495 This part replaces 38310-428-671.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5004496

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5005112

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5004496 This part replaces 38300-089-671.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5004496 This part replaces 38300-243-670.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5004496 This part replaces 38300-428-004.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5005112 This part replaces 38300-428-004.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5004496 This part replaces 38301-428-004.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5004496 This part replaces 38301-428-671.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5005112 This part replaces 38301-428-671.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5004496 This part replaces 38310-428-671.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5005112 This part replaces 38310-428-671.

38300-GF0-405

$44.27

14

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE) | Use up to Frame SN 5004495

38306-092-670

Unavailable

15

SUSPENSION, TURN SIGNAL RELAY | Use from Frame SN 5004496

38306-292-000

$3.76

17

BOLT-WASHER (6X12)

93402-06012-00

$1.69

17

BOLT-WASHER (6X12) This part replaces 93412-06012-00.

93402-06012-00

$1.69

17

BOLT-WASHER (6X12) This part replaces 93482-06012-00.

93402-06012-00

$1.69

18

SCREW, PAN (5X20)

93500-05020-0H

$1.49

20

NUT, HEX. (5MM) This part replaces 94001-05080.

94001-050800S

$1.49

20

NUT, HEX. (5MM)

94001-050800S

$1.49

20

NUT, HEX. (5MM) This part replaces 94001-05080-08.

94001-050800S

$1.49

21

WASHER, SPRING (5MM)

94111-05800

$1.49

23

BAND B1, CABLE

32161-404-000

$2.23

23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

24

BAND A3, CABLE

95014-61300

$1.97

25

BAND B1, CABLE

95014-62100

$1.64

26

FUSE A (10A)

98200-11000

$1.80

27

BATTERY (6N4C-1B) This part replaces 31500-098-506.

31500-098-506AH

Unavailable

27

BATTERY (6N4C-1B) This part replaces 31500-098-957.

31500-098-506AH

Unavailable

27

BATTERY (6N4C-1B) This part replaces 98203-66230.

31500-098-506AH

Unavailable
