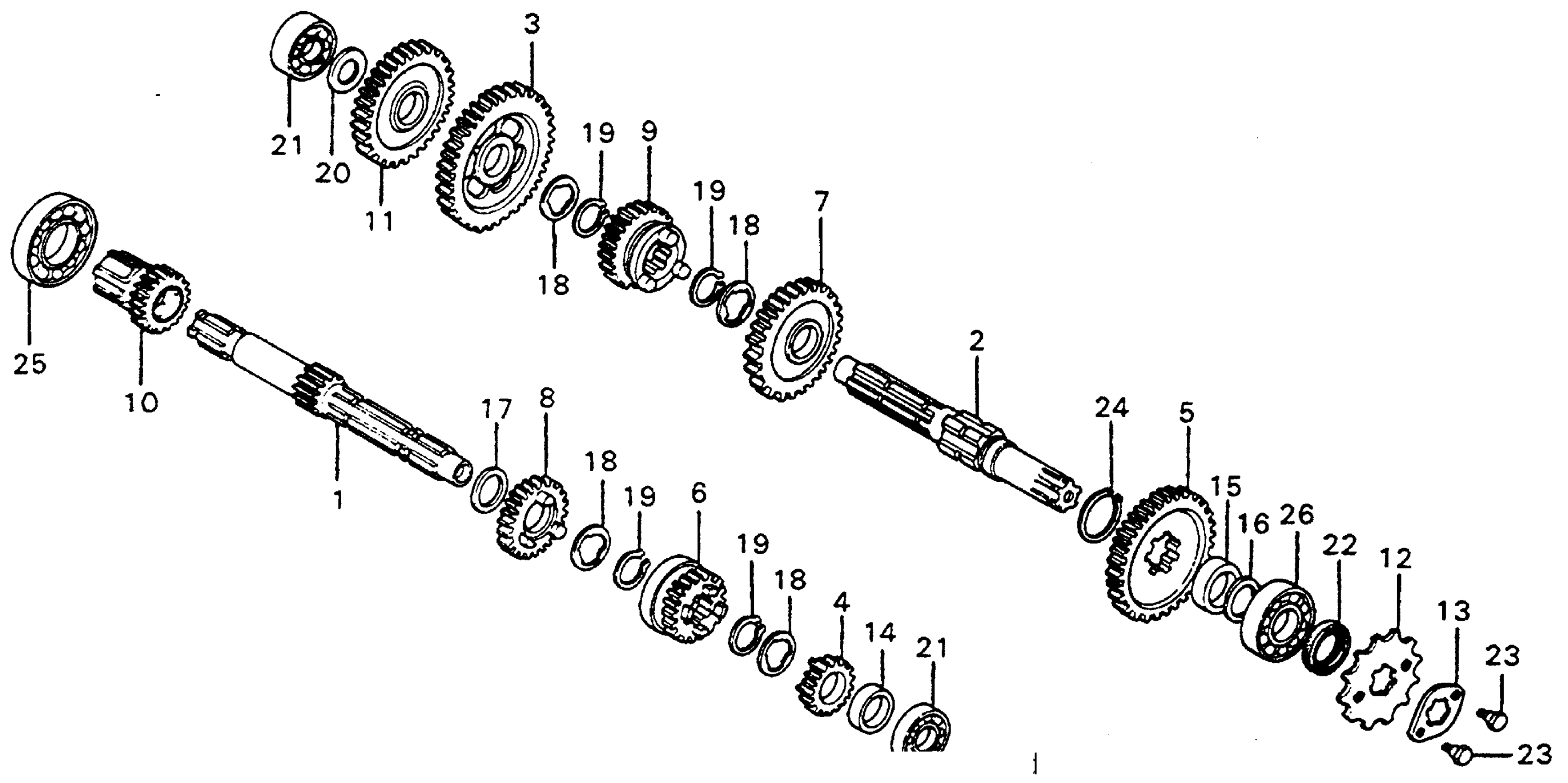

Honda XL75A (79) MOTORCYCLE, JPN, VIN# XL75-5000001 TO XL75-5011386 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (12T)

23211-149-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-149-000

$120.25

3

GEAR, COUNTERSHAFT LOW (37T) (NOT AVAILABLE)

23426-149-010

Unavailable

4

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23441-151-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (32T)

23451-151-000

Unavailable

6

GEAR, MAINSHAFT THIRD (21T)

23461-151-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (28T)

23471-151-000

Unavailable

8

GEAR, MAINSHAFT TOP (24T) (NOT AVAILABLE)

23501-151-000

Unavailable

9

GEAR, COUNTERSHAFT TOP (25T) (NOT AVAILABLE)

23511-151-000

Unavailable

10

GEAR, PRIMARY STARTER (19T) | Use up to Engine SN 5008069 This part replaces 23520-149-000.

23520-436-000

$109.41

10

GEAR, PRIMARY STARTER (19T)

23520-436-000

$109.41

10

GEAR, PRIMARY STARTER (19T) | Use up to Engine SN 5008069

23520-436-000

$109.41

11

GEAR, STARTER IDLE (29T)

23531-149-000

$68.43

12

SPROCKET, DRIVE (14T)

23800-040-010

$17.03

12

SPROCKET, DRIVE (14T) This part replaces 23800-116-010.

23801-178-000

$16.40

12

SPROCKET, DRIVE (14T) This part replaces 23800-141-010.

23801-178-000

$16.40

12

SPROCKET, DRIVE (14T)

23801-178-000

$16.40

13

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

14

COLLAR, MAINSHAFT (NOT AVAILABLE)

23911-151-000

Unavailable

15

COLLAR, COUNTERSHAFT (NOT AVAILABLE)

23912-151-000

Unavailable

16

WASHER (17MM) | Use up to Engine SN 5008086

90452-115-000

$2.20

16

WASHER, THRUST (17.2MM) | Use from Engine SN 5008087

90446-357-000

$3.60

17

WASHER B, THRUST (17MM)

90453-115-000

$2.28

18

WASHER, SPLINE (17MM)

90461-115-000

$2.66

19

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

20

WASHER (12MM)

90608-072-000

$3.80

21

BEARING, BALL (6201Z)

91001-115-000

$10.21

21

BEARING, RADIAL BALL (6201U) This part replaces 91002-436-004.

96140-62010-00

$9.63

21

BEARING, RADIAL BALL (6201U)

96140-62010-00

$9.63

22

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

23

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

23

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

23

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

24

CIRCLIP (OUTER) (22MM)

94510-22000

$1.49

25

BEARING, RADIAL BALL (6005) This part replaces 96100-60050.

96100-60050-00

$11.25

25

BEARING, RADIAL BALL (6005)

96100-60050-00

$11.25

26

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

26

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
