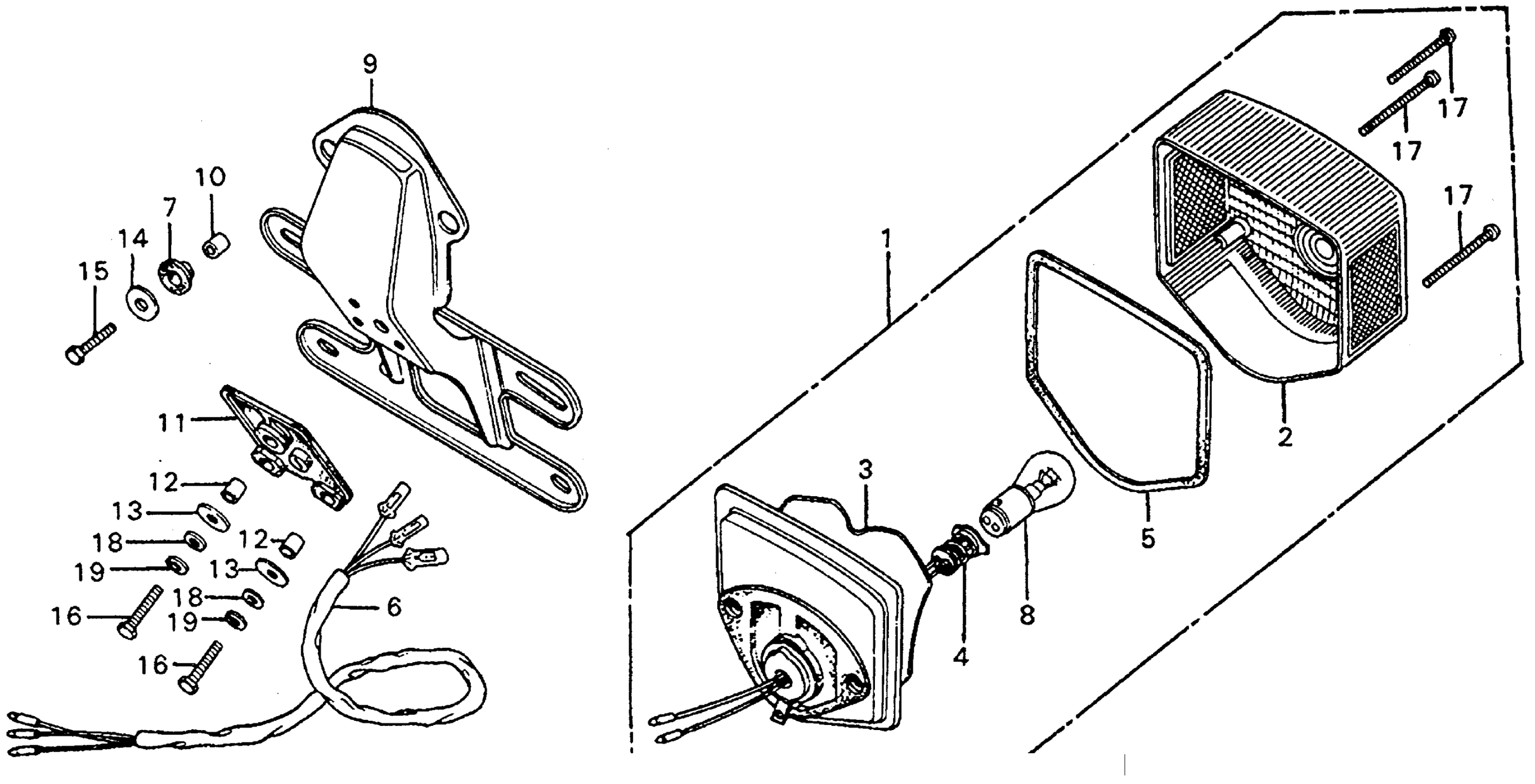

Honda XL75A (79) MOTORCYCLE, JPN, VIN# XL75-5000001 TO XL75-5011386 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-126-721

Unavailable

2

LENS, TAILLIGHT

33702-329-671

Unavailable

3

SOCKET, TAILLIGHT

33703-126-721

Unavailable

4

WIRE, TAILLIGHT

33708-098-000

Unavailable

4

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

5

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

6

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33711-152-000

Unavailable

7

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

8

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

9

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)

84700-152-670ZA

Unavailable

10

COLLAR, LICENSE PLATE BRACKET

84706-341-000

$3.01

11

RUBBER, TAILLIGHT (NOT AVAILABLE)

84707-152-000

Unavailable

12

COLLAR, TAILLIGHT (NOT AVAILABLE)

84709-124-000

Unavailable

13

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

14

WASHER (20MM)

90581-310-000

$1.90

15

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

16

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

16

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

17

SCREW, TAPPING (4X60)

90147-147-671

$2.70

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49
