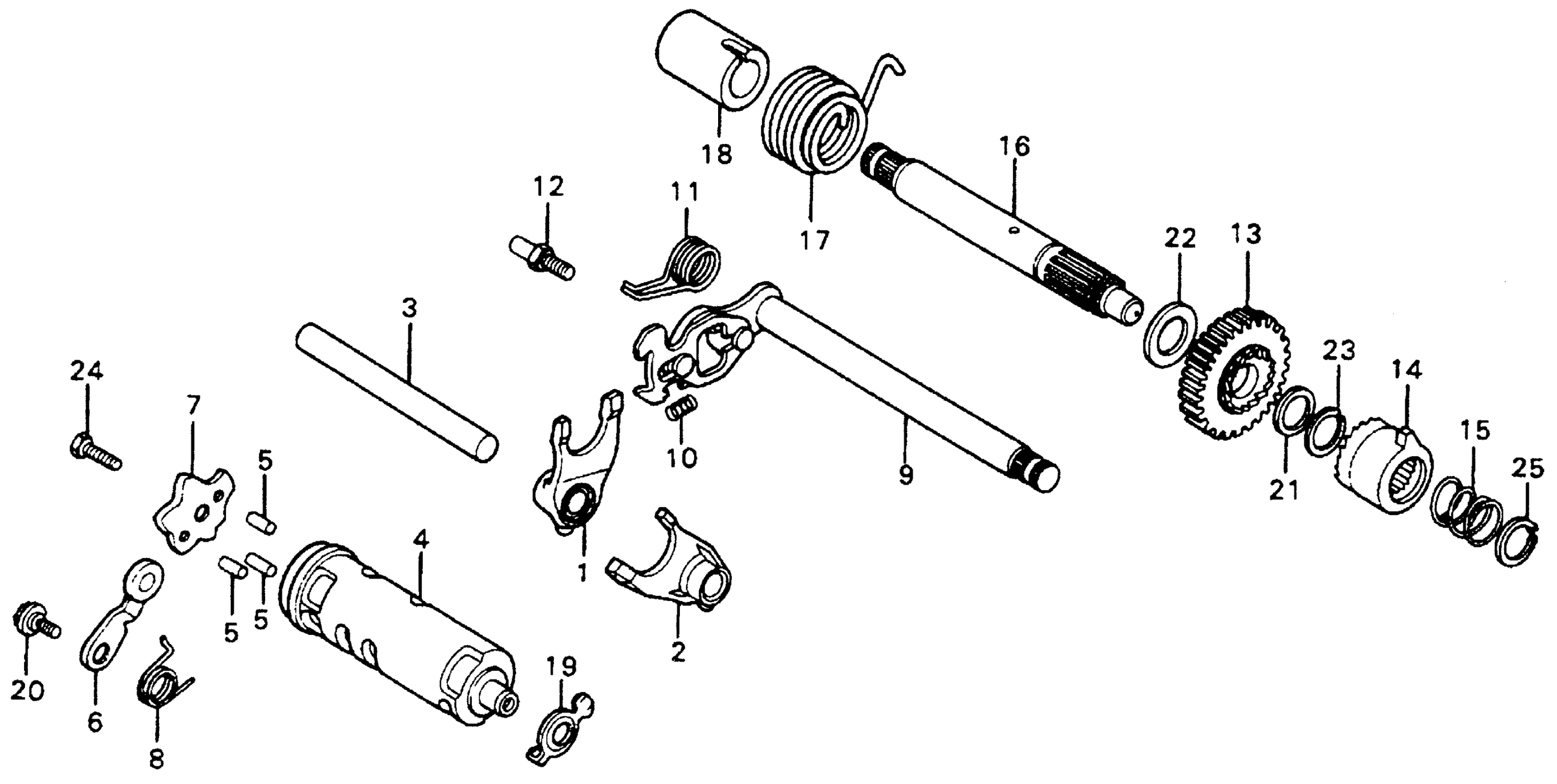

Honda XL75A (79) MOTORCYCLE, JPN, VIN# XL75-5000001 TO XL75-5011386 SHIFT FORK + SHIFT DRUM + KICK SPINDLE Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-149-000

Unavailable

2

FORK, CENTER GEARSHIFT

24231-115-000

Unavailable

3

SHAFT, GEARSHIFT FORK GUIDE

24241-149-000

Unavailable

4

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-151-000

Unavailable

5

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

5

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

6

STOPPER, GEARSHIFT DRUM

24430-115-010

$12.67

7

PLATE, GEARSHIFT DRUM STOPPER | Use up to Engine SN 5004495 This part replaces 24435-115-020.

24435-115-040

$11.30

7

PLATE, GEARSHIFT DRUM STOPPER | Use up to Engine SN 5004495 This part replaces 24435-115-030.

24435-115-040

$11.30

7

PLATE, GEARSHIFT DRUM STOPPER

24435-115-040

$11.30

7

PLATE, GEARSHIFT DRUM STOPPER | Use up to Engine SN 5004495

24435-115-040

$11.30

8

SPRING, SHIFT DRUM STOPPER

24436-149-000

$2.90

9

SPINDLE, GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 5008872 This part replaces 24610-149-000.

24610-149-020

Unavailable

9

SPINDLE, GEARSHIFT (NOT AVAILABLE) This part replaces 24610-149-010.

24610-149-020

Unavailable

9

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-149-020

Unavailable

10

SPRING, GEARSHIFT ARM

24641-115-010

$2.92

11

SPRING, GEARSHIFT RETURN

24651-107-000

$5.81

12

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

13

PINION, KICK STARTER (27T) This part replaces 28211-149-000.

28211-436-000

Unavailable

13

PINION, KICK STARTER (27T)

28211-436-000

Unavailable

14

RATCHET, STARTER DRIVE This part replaces 28221-149-000.

28221-149-010

Unavailable

14

RATCHET, STARTER DRIVE

28221-149-010

Unavailable

15

SPRING, RATCHET

28223-149-000

$3.10

16

SPINDLE, KICK STARTER

28251-149-000

Unavailable

17

SPRING, KICK STARTER (CHUO HATSUJO)

28281-149-003

$10.36

18

COLLAR, KICK SPRING

28282-149-000

Unavailable

19

ROTOR, NEUTRAL SWITCH

35753-KR3-010

$2.75

19

ROTOR, NEUTRAL SWITCH This part replaces 35753-115-000.

35753-KR3-010

$2.75

20

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

20

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

21

WASHER (18MM)

90401-149-000

$2.49

22

WASHER, THRUST (18MM)

90452-701-000

$2.34

23

CIRCLIP (OUTER) (18MM)

90601-149-000

$2.30

24

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

25

CIRCLIP (OUTER) (18MM)

94510-18120

$1.49
