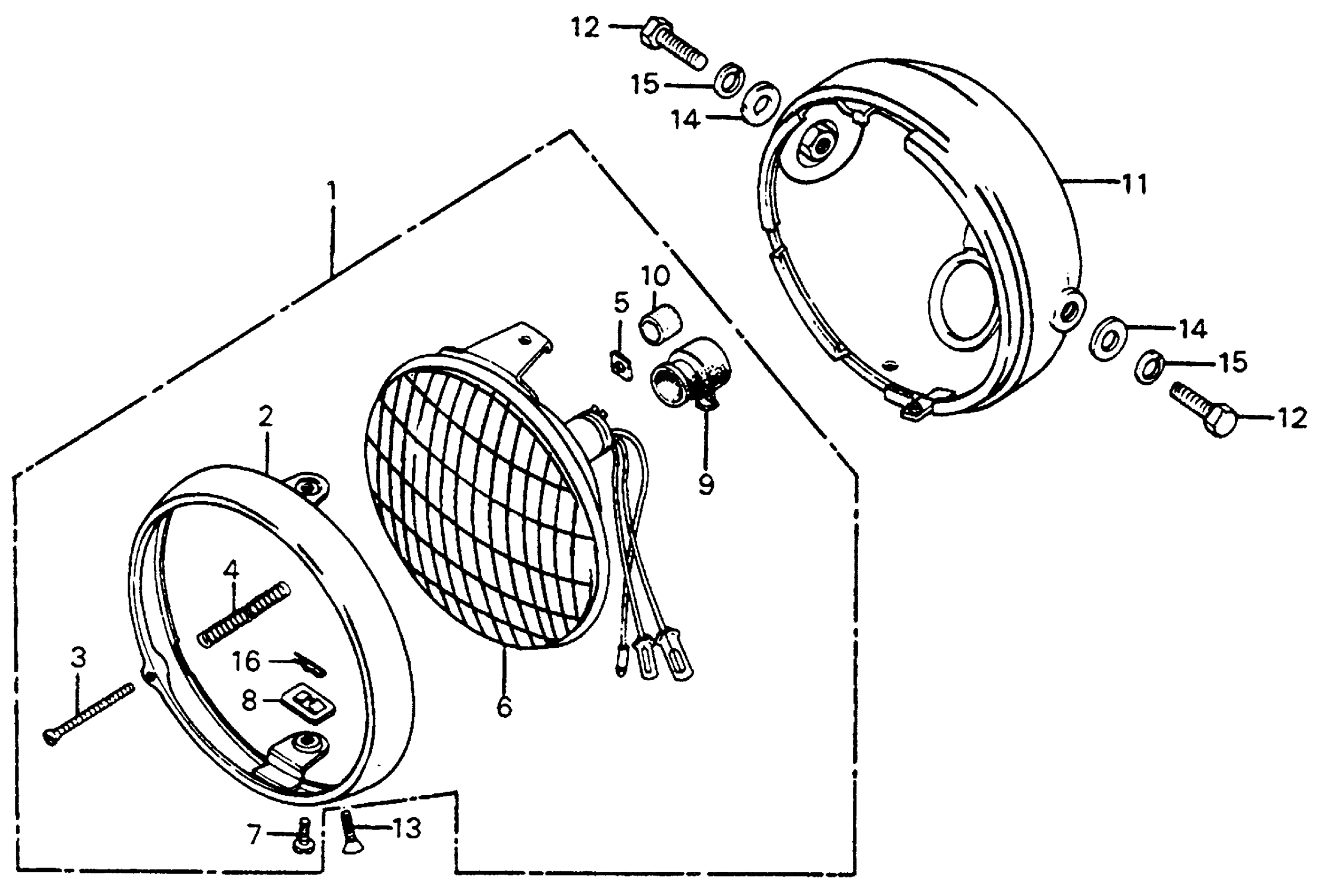

Honda XL75A (79) MOTORCYCLE, JPN, VIN# XL75-5000001 TO XL75-5011386 HEADLIGHT Diagram

HEADLIGHT ASSY. (6V15/15W)

33100-111-671

Unavailable

RIM, HEADLIGHT (NOT AVAILABLE)

33101-111-671

Unavailable

SCREW, HEADLIGHT BEAM ADJ. (STANLEY)

33102-041-003

$2.04

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) This part replaces 33102-041-670.

33102-041-003

$2.04

SPRING, HEADLIGHT SETTING This part replaces 33107-030-000.

33107-030-003

$2.32

SPRING, HEADLIGHT SETTING

33107-030-003

$2.32

NUT, BEAM ADJ.

33117-041-003

$1.78

HEADLIGHT UNIT

33120-111-671

Unavailable

SCREW, UNIT HOLDER

33125-292-670

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.80

COVER, RUBBER

33130-111-671

Unavailable

COVER, ADJUSTING SCREW | Use from Frame SN 5007212

33136-111-671

$1.77

CASE, HEADLIGHT *NH1* (STANLEY) (BLACK) (NOT AVAILABLE)

61301-150-003ZD

Unavailable

BOLT,HEX(8X20) This part replaces 92000-08020-0B.

92101-08020-0B

$1.58

SCREW, OVAL (5X12)

93700-05012-0B

$0.81

WASHER, PLAIN (8MM)

94101-08000

$0.75

WASHER, SPRING (8MM)

94111-08000

$0.90

PIN, LOCK (5MM)

94251-05000

$0.94
