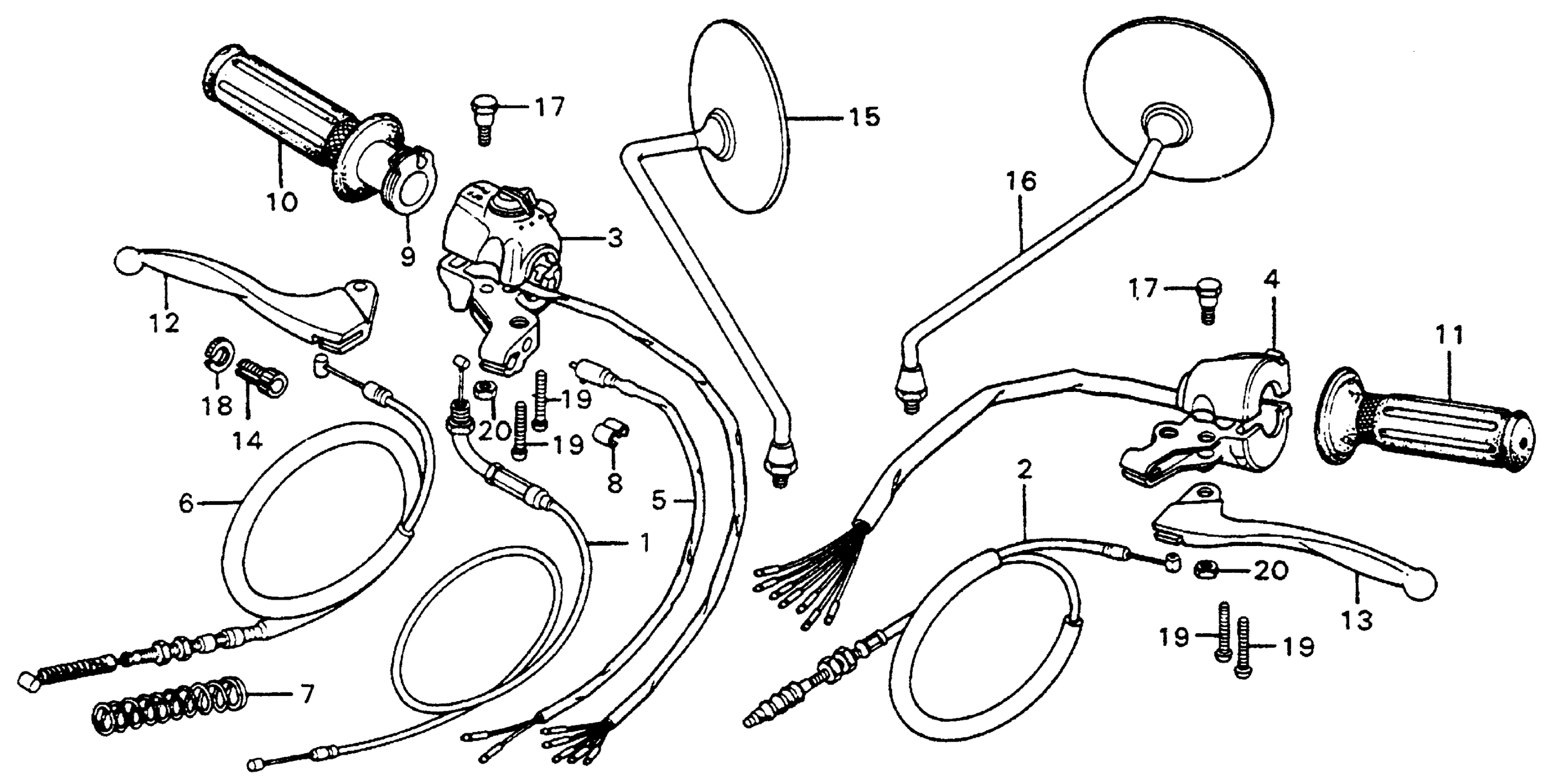

Honda XL75A (79) MOTORCYCLE, JPN, VIN# XL75-5000001 TO XL75-5011386 HANDLE SWITCH + CABLE + LEVER Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-150-000

Unavailable

2

CABLE, CLUTCH This part replaces 22870-150-000.

22870-195-405

Unavailable

2

CABLE, CLUTCH This part replaces 22870-195-000.

22870-195-405

Unavailable

2

CABLE, CLUTCH

22870-195-405

Unavailable

3

SWITCH ASSY., STOP

35150-152-711

Unavailable

4

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-152-712

Unavailable

5

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$19.20

5

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$19.20

5

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$19.20

5

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

6

CABLE, FR. BRAKE This part replaces 45450-152-670.

45450-195-670

Unavailable

6

CABLE, FR. BRAKE This part replaces 45450-152-671.

45450-195-670

Unavailable

6

CABLE, FR. BRAKE

45450-195-670

Unavailable

7

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

8

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

8

CLIP, FR. BRAKE CABLE This part replaces 45465-341-700.

45465-270-000

$4.94

9

PIPE, THROTTLE GRIP This part replaces 53141-116-670.

53141-116-671

Unavailable

10

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

11

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

12

LEVER, R. HANDLEBAR This part replaces 53175-149-000.

53175-116-690

$16.94

13

CONTROL LEVER, L. HANDLEBAR

53178-149-000

Unavailable

14

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

15

MIRROR, R. | (Optional).

88110-329-730

Unavailable

16

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

17

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

18

NUT, FIXING

90321-315-670

$7.31

18

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

19

SCREW, PAN (5X25)

93500-05025-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
