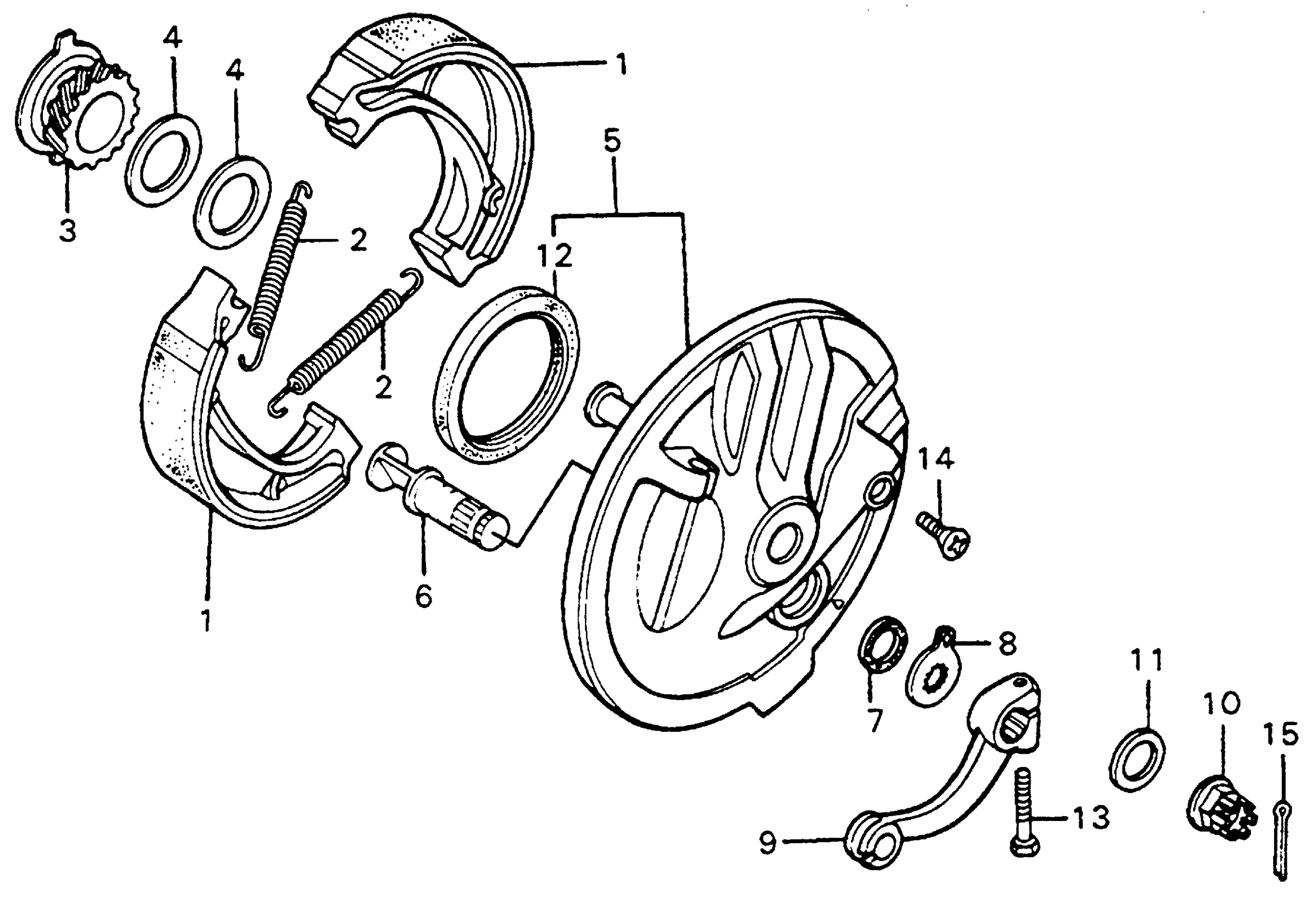

Honda XL75A (79) MOTORCYCLE, JPN, VIN# XL75-5000001 TO XL75-5011386 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

1

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

2

SPRING, BRAKE SHOE

43151-110-000

$2.92

3

GEAR, SPEEDOMETER (YAMADA) (NOT AVAILABLE)

44804-152-003

Unavailable

4

WASHER, SPEEDOMETER GEAR

44808-107-720

$2.34

5

SUB-PANEL, FR. BRAKE *A01* (MAT BLACK)

45010-152-780ZA

Unavailable

6

CAM, FR. BRAKE | Use up to Frame SN 5007216 This part replaces 45131-400-000.

45131-400-020

Unavailable

6

CAM, FR. BRAKE This part replaces 45131-400-010.

45131-400-020

Unavailable

6

CAM, FR. BRAKE | Use up to Frame SN 5007216 This part replaces 45131-400-010.

45131-400-020

Unavailable

6

CAM, FR. BRAKE

45131-400-020

Unavailable

6

CAM, FR. BRAKE | Use up to Frame SN 5007216

45131-400-020

Unavailable

7

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

8

INDICATOR, FR. BRAKE

45145-400-000

Unavailable

9

ARM, FR. BRAKE

45410-400-000

Unavailable

10

NUT, AXLE (12MM) This part replaces 90305-051-000.

90305-169-000

$6.28

10

NUT, AXLE (12MM)

90305-169-000

$6.28

11

WASHER (12.5MM)

90528-229-000

$2.02

12

OIL SEAL (47X60X7)

91251-GK4-003

$9.19

12

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

12

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-003.

91251-GK4-003

$9.19

12

OIL SEAL (47X60X7)

91251-361-005

$13.39

13

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

13

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

14

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

15

PIN, COTTER (3.0X45)

94201-30450

$1.49
