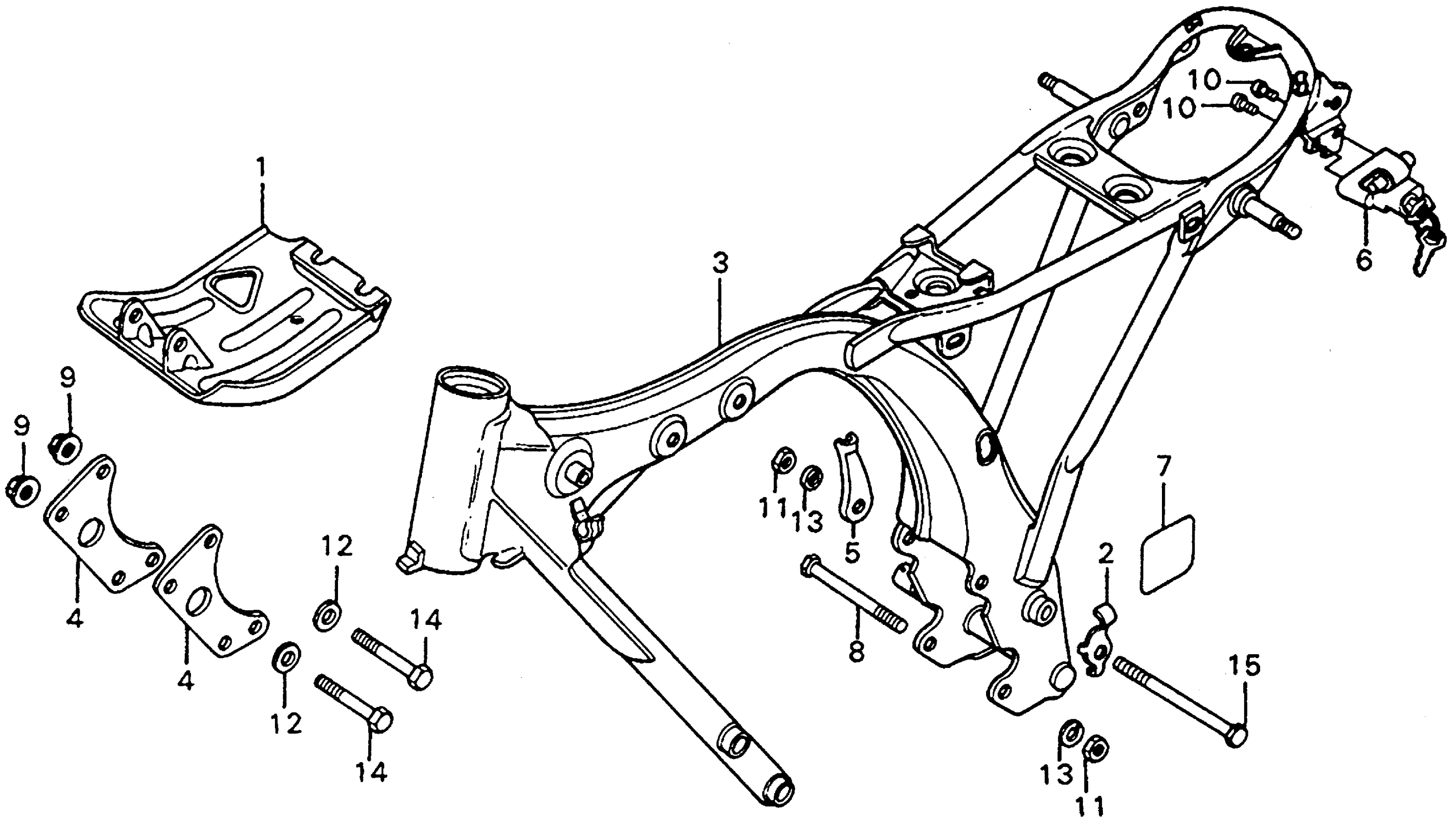

Honda XL75A (79) MOTORCYCLE, JPN, VIN# XL75-5000001 TO XL75-5011386 FRAME Diagram

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11911-153-000

Unavailable

CLIP, ALTERNATOR WIRE (NOT AVAILABLE)

32907-149-000

Unavailable

FRAME *NH1* (BLACK)

50100-152-870ZA

Unavailable

PLATE, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-149-000ZA

Unavailable

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50356-149-000

Unavailable

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-152-670

Unavailable

BOLT, HEX. (8X95) (NOT AVAILABLE)

90102-149-000

Unavailable

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (8MM) This part replaces 94050-08000-0S.

94050-08000

$1.49

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

NUT, HEX. (8MM)

94030-08000

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

BOLT, HEX. (8X60) This part replaces 95300-08060-00.

95301-08060-00

$1.49

BOLT, HEX. (8X100)

95300-08100-00

Unavailable
