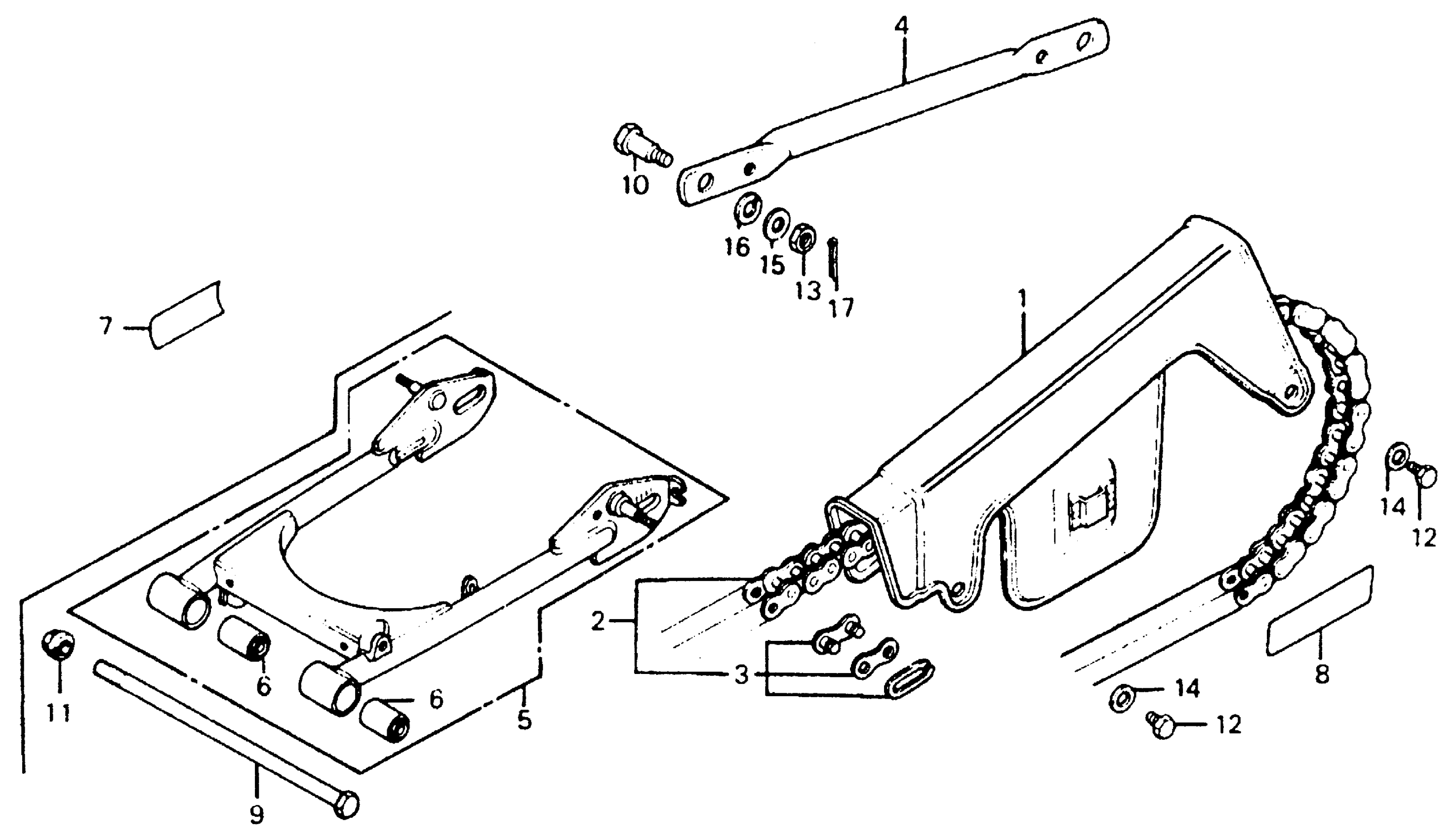

Honda XL75A (79) MOTORCYCLE, JPN, VIN# XL75-5000001 TO XL75-5011386 DRIVE CHAIN + SWINGARM Diagram

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40510-152-000ZA

Unavailable

CHAIN, DRIVE (92L)

405W3-179-505

Unavailable

CHAIN, DRIVE (92L) This part replaces 40530-GF4-003.

405W3-179-505

Unavailable

CHAIN, DRIVE (92L) This part replaces 40530-GF4-005.

405W3-179-505

Unavailable

CHAIN, DRIVE (92L) This part replaces 40530-152-003.

405W3-179-505

Unavailable

MASTER LINK (DAIDO) This part replaces 40531-045-671.

40531-098-003

$3.74

MASTER LINK (DAIDO)

40531-098-003

$3.74

MASTER LINK (DAIDO) This part replaces 40531-120-003.

40531-098-003

$3.74

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

MASTER LINK (DAIDO) This part replaces 40531-153-003.

40531-098-003

$3.74

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-152-000

Unavailable

SWINGARM, RR. *NH1* (BLACK) (NOT AVAILABLE)

52000-152-670ZC

Unavailable

BUSH, SWINGARM PIVOT RUBBER

52181-001-300

$12.11

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-152-670

Unavailable

BOLT, SWINGARM PIVOT

90121-063-000

$16.64

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

BOLT, HEX. (6X6) This part replaces 92000-06006.

92101-06006-0A

$1.49

BOLT, HEX. (6X6) This part replaces 92000-06006-0A.

92101-06006-0A

$1.49

BOLT, HEX. (6X6)

92101-06006-0A

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49
